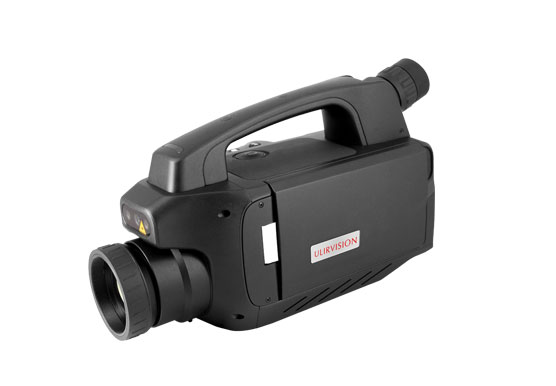

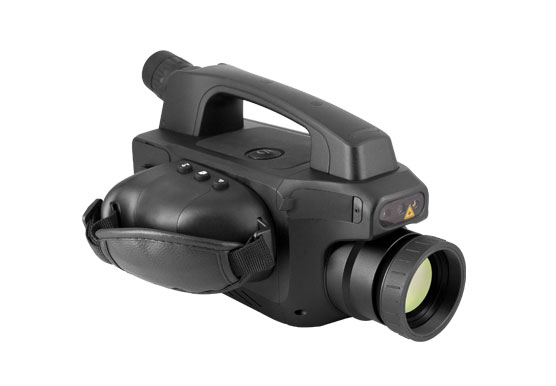

TI320+ SF6 Gas Thermal Imaging Camera

Overview of TI320+ Gas Thermal Imaging Camera

ULIRVISION TI320+ is equipped with a cooled and smart gas leak detector, which can detect gas leaks and pinpoint the gas leaks location accurately. What’s more, this smart gas leak detector also offers temperature measurement. Therefore, it is actually a multifunctional device for both gas leakage detection and temperature measurement.


This portable thermal imager can detect leaks from a safe distance, greatly ensuring the safety of the operator. It is an ideal device for environmental safeguard. As one of the leading gas monitoring system manufacturers in China, we are sure to provide our customers with high-quality gas thermal imaging cameras. If you n natural gas monitoring system, don’t miss this device.


Features of TI320+ Gas Thermal Imaging Camera

  • Cooled QWIP detector, sensitivity≤0.025℃, quickly and fast pinpoint gas leaks location

  • Inspection without interrupted process

  • You can change lens according to your needs

  • 5 million visible pixels

  • Robust, intelligent operation

Technical Specifications of TI320+ Gas Thermal Imaging Camera

Item

TI320+

Detector Data

Type

Cooled QWIP

IR resolution

320×256

Pixel pitch

30μm

Spectral range

9.8~11.2μm

NETD/Sensitivity

25mK

SF6 gas sensitivity

≤0.001ml/s

Lens

FOV/Focal distance

10°×7.5°/55mm

Minimum Imaging distance

2m

IFOV

0.55mrad

Focus

Manual

Image Performance

Display

5”,color LCD, 800×480 pixels

Built-in visible light camera5 megapixel CMOS, autofocus, 1 LED fill light

Frequency

50Hz/60Hz

Digital zoom

1X~8X continuous

Color palettes

12 palettes (including iron, rainbow, white hot and black hot etc.)

Contrast/brightness

Auto/Manual

Measurement

Temperature range

-20℃~+500℃

Temperature accuracy

±2℃/±2%(reading)

Spotmeter

10 adjustable spots

Line profile

Vertical/Horizontal

Area

5 adjustable boxes with max./min./avg temperature value

Isotherms analysis

Capture high/low temperature/interval

Alarm

Voice, color

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background temperature correction

Auto

Atmospheric transmissivity correction

Auto

Setting function

Date/time, temperature unit ℃/℉/K, language

Languages

10 languages(English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Image Storage

Storage card

8G SD card(can be extended to 32G)

Video output

Card reader, USB, WiFi

Storage mode

Store signal frame image or dynamic video auto/manual

IR image format

JPEG, 14-bit measurement data image included

Visual light image format

Single frame, JPEG

Video storage

High definition video stored in SD card(MPEG4/H.264 format),recording time up to 1 hour for per video

Voice annotation

40s voice record, stored with per image

Periodic image storage

10s to 24h

Laser Point

Grade/Type

Class 2,1mW/635nmRed

Interfaces

Power

Yes

SD card slot

Yes

Video output

HDMI

Audio output

Yes

Tripod

1/4” -20

Power System

Battery type

Rechargeable li-ion battery

Battery operation time

2h

DC supply

DC: 12V

Charging system

In camera, AC adapter, car charger

Power saving

Yes

Environment Parameters

Operation temperature range

-15℃~+40℃

Storage temperature range

-20℃~+50℃

Humidity

≤95%(Non-condense)

EMC

EN61000-6-4&EN61000-6-2、FCC47CFR Part15 class A、EN61000-4-8, L5

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

Encapsulation

IP54(IEC60529)

Physical Data

Size(L×W×H)

308mm×142mm×166mm

Weight

≤2.5kg(with standard lens)

Gas Detection

Sulfur Hexafluoride(SF6), Ammonia(NH3), Cyanoacrylate, chlorine dioxide, acetic acid, freon-12, Ethylene, methyl ethyl ketone(MEK), etc.

Packing

Standard

Thermal imaging camera with standard 10°standard len, USB WiFi module, 2 Li-ion batteries, battery charger, adapter, car, charger, SD card, SD card, reader, software CD, warranty card, certificate, calibration book

Optional accessories

Laptop, SLR camera

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of TI320+ Infrared Gas Sensor

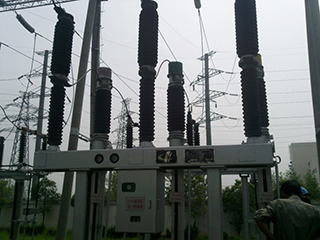

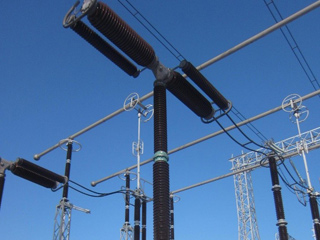

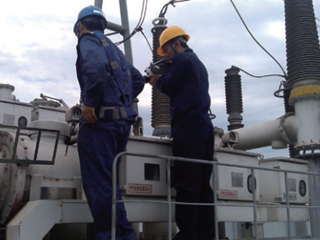

  • Electricity

  • Chemical Industry

  • Environmental organization

  • Research Institute
