TI175/TI395 Thermal Imaging Cameras

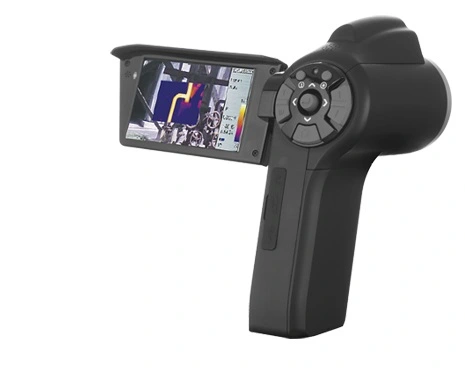

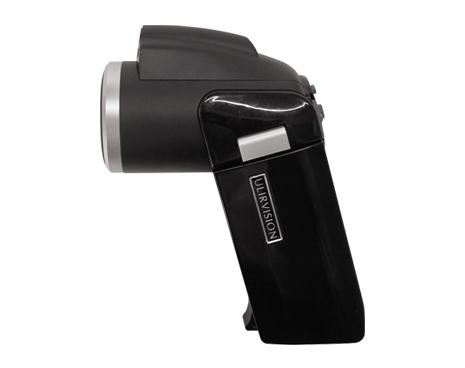

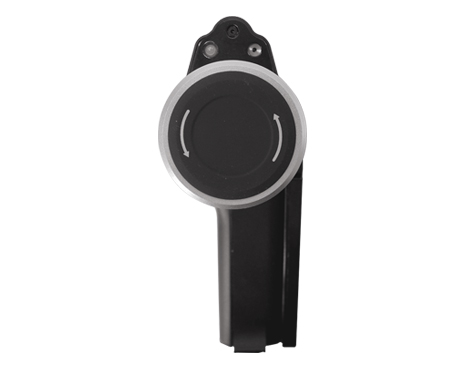

Overview of TI175/TI395 Thermal Imaging Video Camera

ULIRVISION TI175|TI395 full HD thermal camera is an affordable, easy-to-operate and high-performance thermal imaging camera that offers accurate temperature measurements at safe distances. It can be the best budget thermal camera.


With a reliable performance and accurate temperature measurement, the affordable thermal camera can effectively improve the efficiency of inspection work. This industrial thermal imaging camera is a powerful tool to ensure the production process and product quality in the industrial field.


Features of TI175/TI395 Thermal Vision Camera

The TI175/TI395 affordable thermal imager is with the following features:

  • Visible and infrared image fusion and overlay

  • 3.2",270°rotatable and foldable LCD can help you observe from different angle

  • Multiple temperature measurement mode

  • Tiny size, light weight 400g

  • Multi-lens for option

  • Provide free and professional analysis software


Technical Specifications of TI175/TI395 Thermal Vision Camera

Item

TI175

TI395

Detector Data

Type

Uncooled FPA

IR resolution

160×120

384×288

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

70mK

Lens

FOV/Minimum imaging distance

24°×18°/15cm

24°×18°/30cm

IFOV

2.3mrad

1.2mrad

Focus

Auto/Motor

Lens(Optional)

45°×34°/15cm、12°×9°/1m

Image Performance

Display

3.2”,270° tiltable LCD,800×480 pixels

Visual camera

3.0 mega pixel

Frequency

50Hz/60Hz

Zoom

1X~4X continuous

1X~8X continuous

Color palettes

12 palettes(including iron, rainbow, white hot and black hot etc.)

Contrast/brightness

Auto/Manual

Measurement

Temperature range

-20℃~+250℃(Standard)

200℃~+600℃(Optional)

Measurement accuracy

±2℃/±2%(reading)

Spotmeter

4 adjustable spots

Line profile

Vertical/Horizontal

Area

3 adjustable boxes with max./min./avg temperature value

Isotherms analysis

Capture high/low temperature/interval

Alarm

Voice, color

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background temperature correction

Auto

Atmospheric transmissivity correction

Auto

Setting function

Date/time, temperature unit ℃/℉/K, language

Languages

10 languages(English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Image Storage

Storage type

Built-in flash, >700 images

Built-in flash card, up to >500 images


8G SD card, up to >11200 images

8G SD card, up to >8000 images

Storage mode

Auto/Manual store image in frame

Signal frame infrared image format

JPEG, with 14-Bit radiometric image

Signal frame visible light image format

JPEG or stored with thermal image

Voice annotation

40s voice record, stored with per image via built-in microphone

Periodic image storage

User defined, 7s at least

Laser Point

Grade/Type

Class 2,1mW/635nmRed

Interfaces

Power interface

Yes

SD card slot

Yes

Video output

CVBS

Audio output

Yes

USB

USE2.0, radiometric images、measurement data and voice are transferred to PC

Tripod

1/4” -20

Power System

Battery type

Lithium battery

Battery operation time

3h continuous

External power

DC: 5V±5%

Charging system

Intelligent charger or in camera

Power saving

Yes

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-40℃~+70℃

Humidity

≤95%(Non-condense)

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

Encapsulation

IP54(IEC60529)

Physical Data

Size

128mm×62mm×154mm

Weight

≤0.4kg(with battery and standard lens)

Packing

Standard

Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate

Option

Laptop, SLR camera


Applications of TI175/TI395 High Resolution Thermal Imaging Camera

With its special features, this TI175/TI395 thermal infrared detector is widely applied to the following areas:

  • Building Diagnostics

  • Electrical/Mechanical Inspection

  • Research & Development

  • Automation Applications

  • Preventative & Predictive Maintenance
