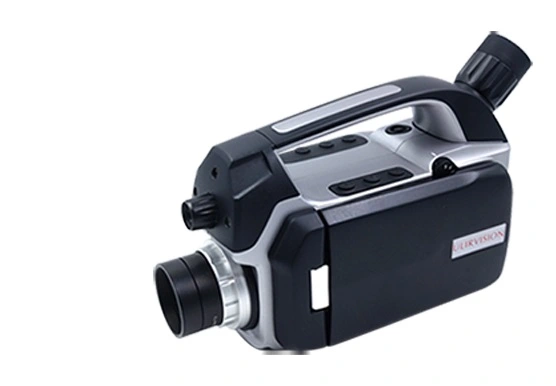

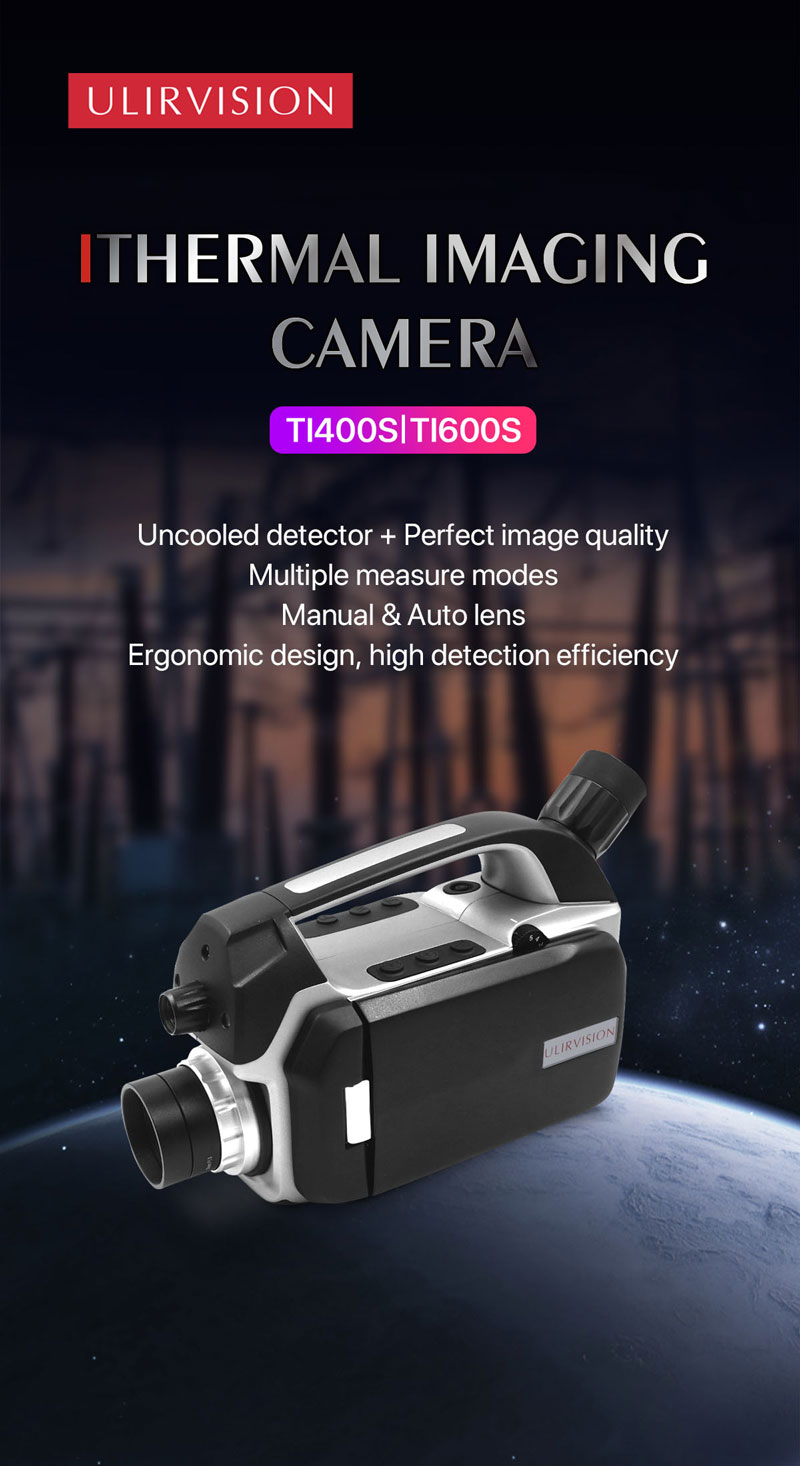

TI400S/TI600S Thermal Imaging Cameras

Overview of TI400S/TI600S Temperature Thermal Camera

The TI400S|TI600S HD thermal camera adopts 384×288|640×480 high pixel aSi micro-heat detector. With its excellent imaging quality, friendly user interface operation and rich temperature measurement functions, this smart thermal camera can meet the strict testing requirements of thermal imaging experts. In addition, its flexible and rotatable touch screen and ergonomic appearance design can reduce the workload and help users to easily cope with the testing task.


Features of TI400S/TI600S HD Thermal Camera

  • 384×288|640×480 uncooled detector

  • DSX visible and infrared image fusion and overlay

  • Audible and visual alarm, text annotation, audio annotation

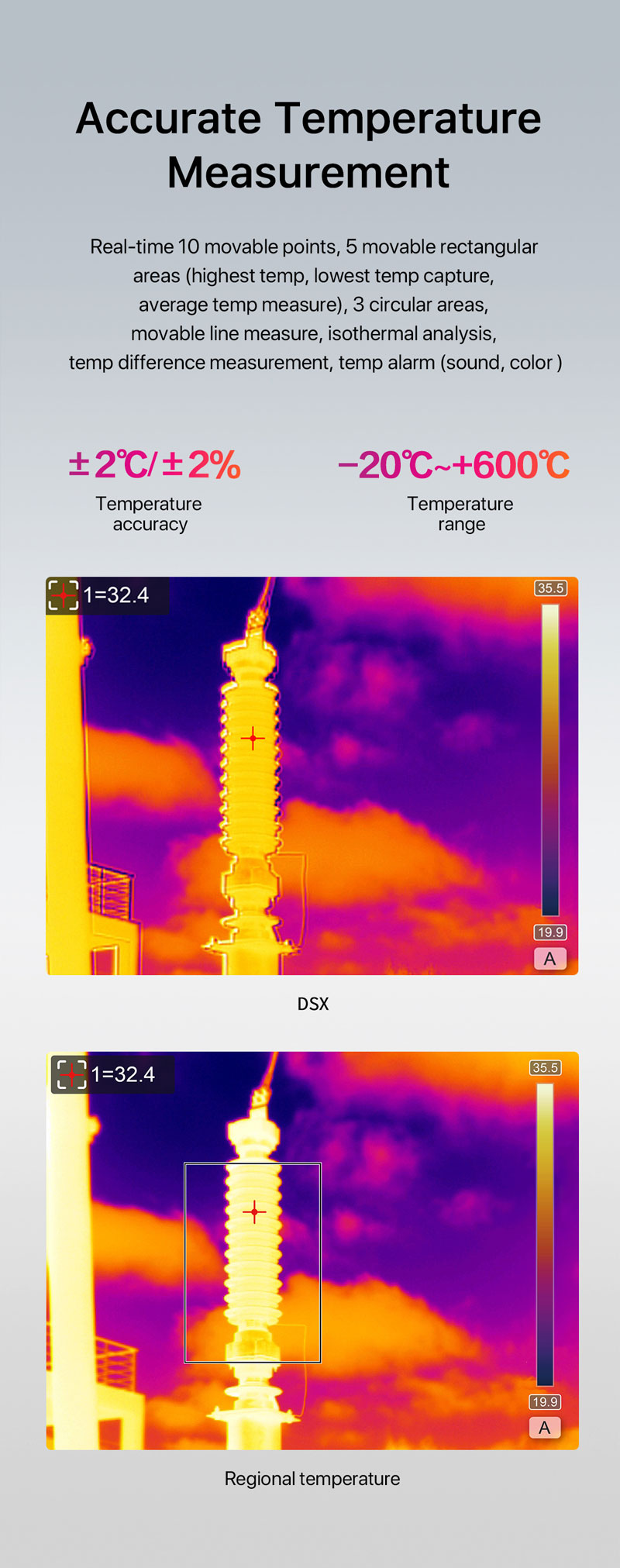

  • Multiple temperature measurement modes: high and low temperature automatic tracking, linear temperature measurement, rectangular temperature measurement, circular temperature measurement, isothermal analysis

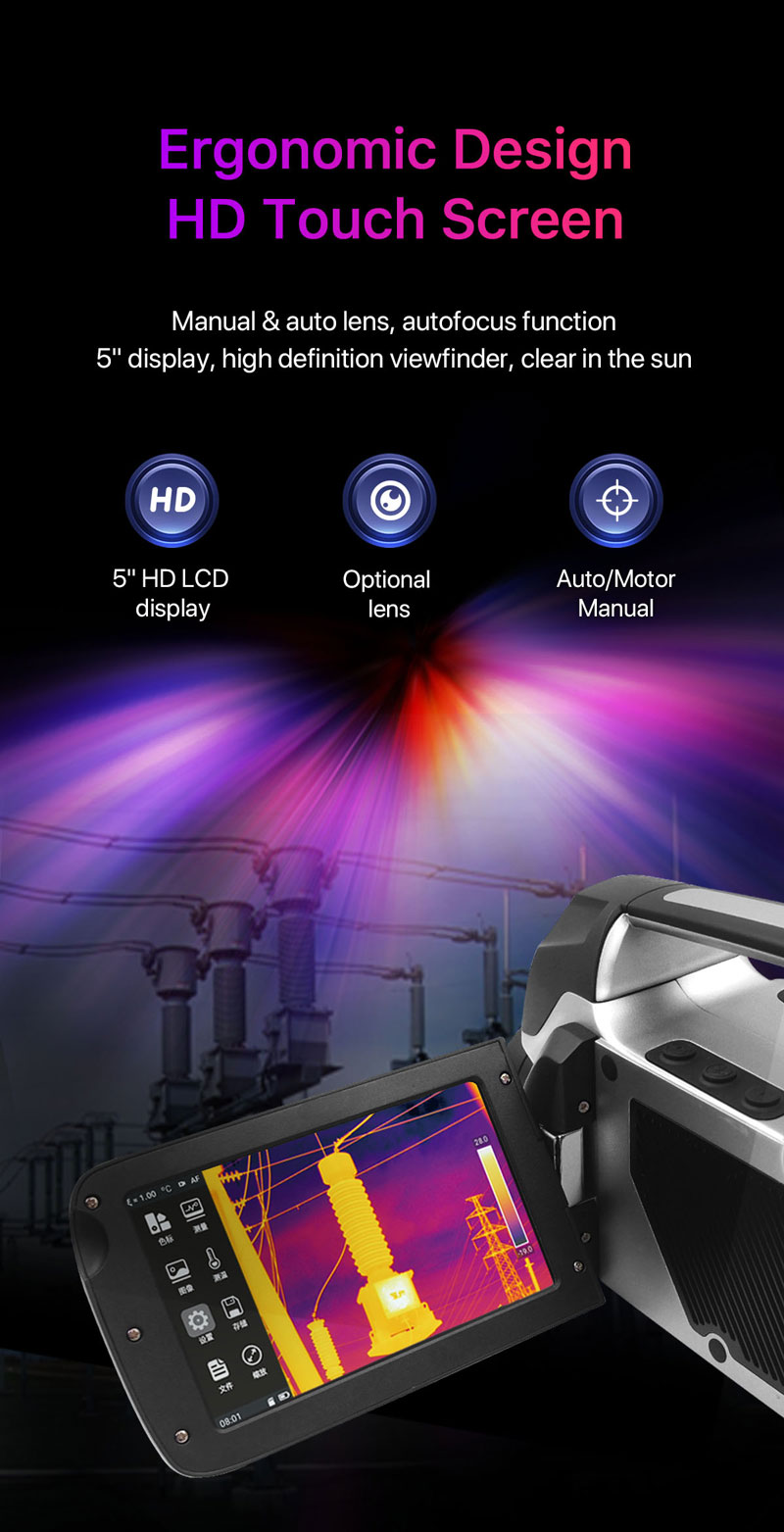

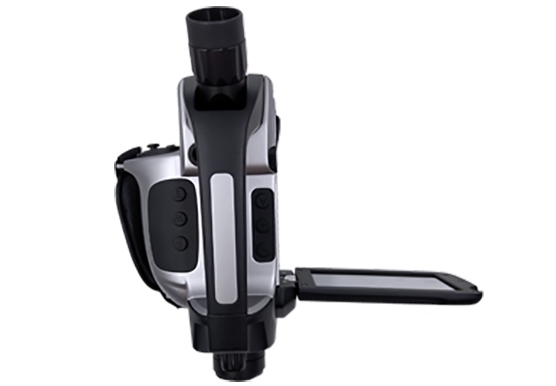

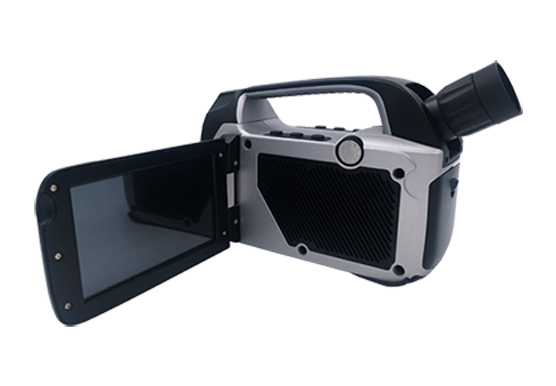

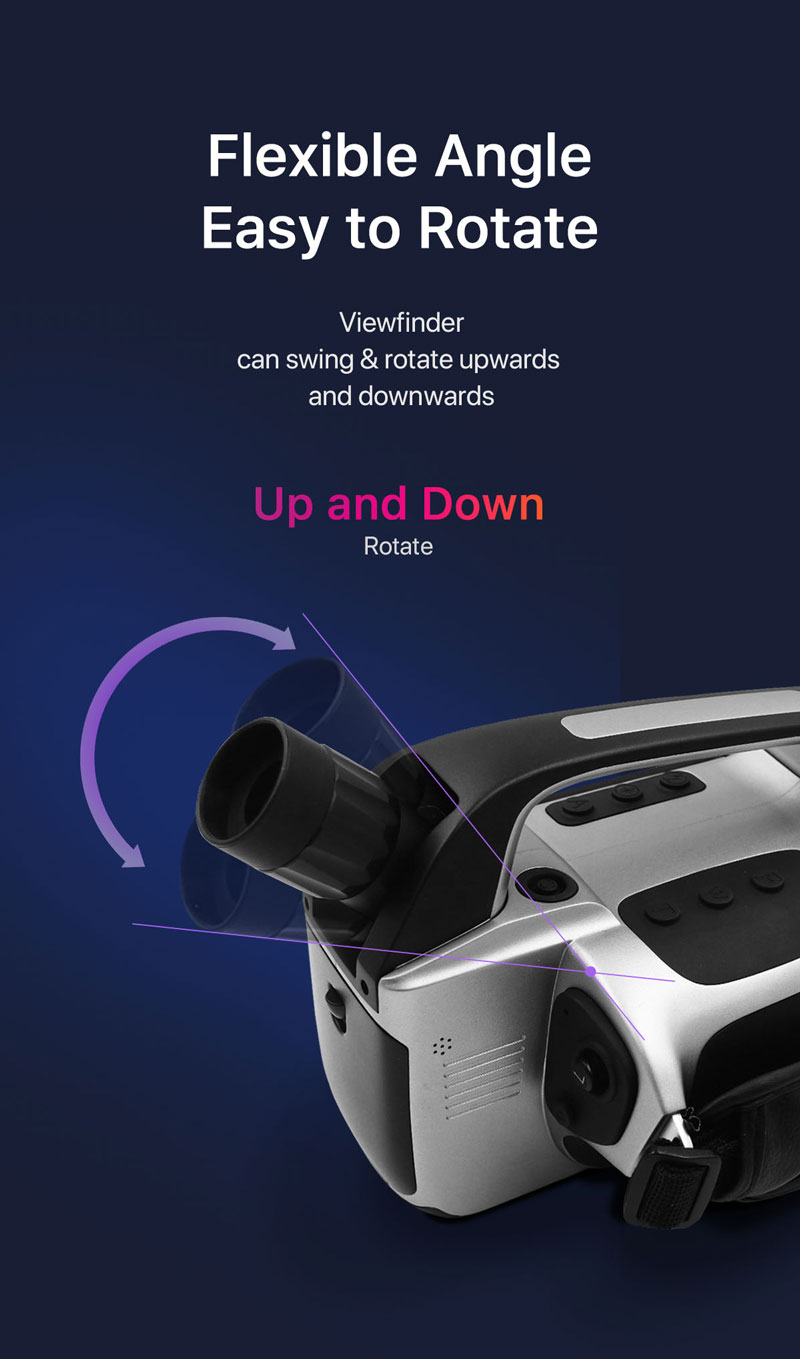

  • 5" rotatable display, high-definition viewfinder, clearly visible in sunlight

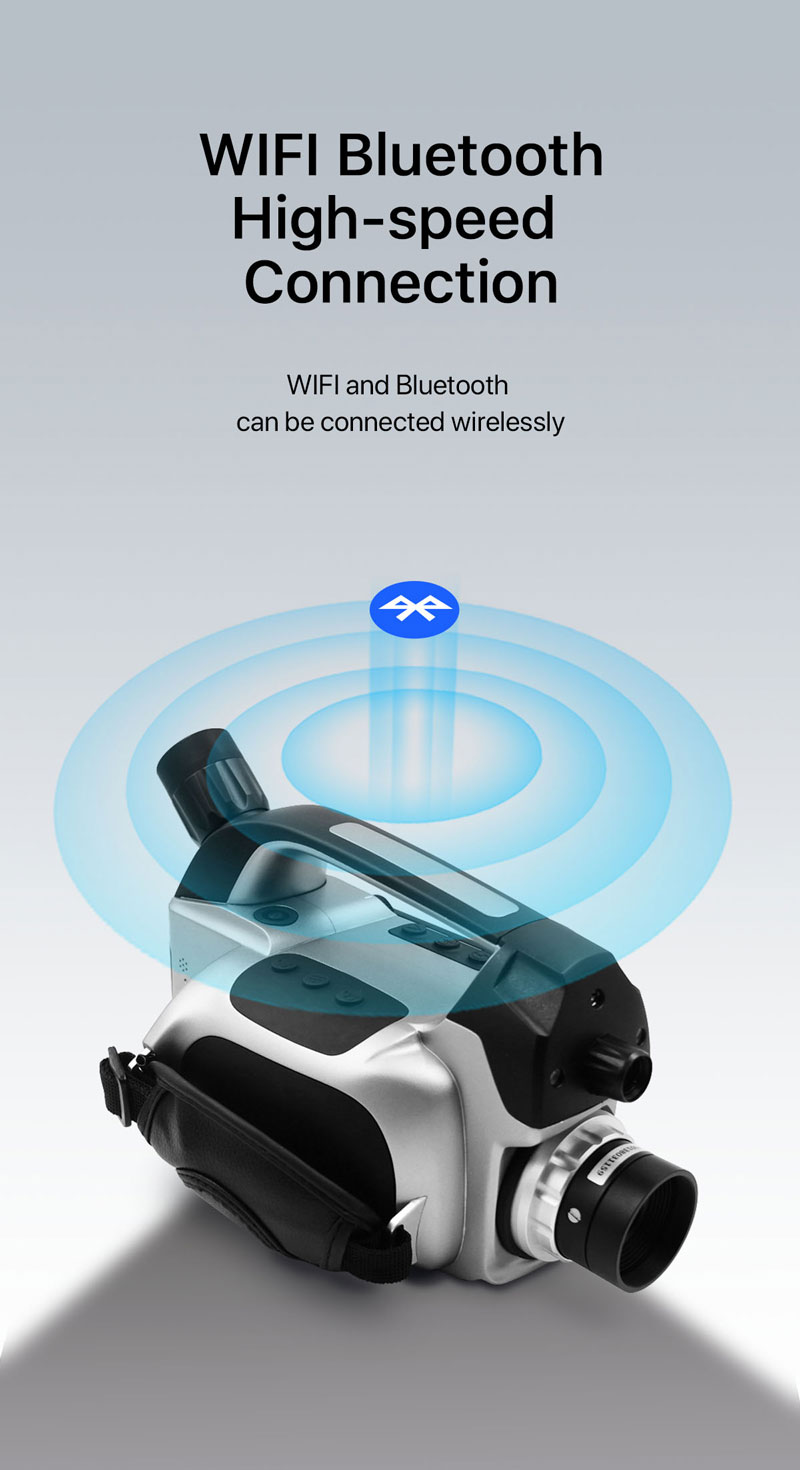

  • Bluetooth, WIFI transmission

ULIRVISION TI400S/TI600S thermographic imaging camera is sure to provide reliable performance for your work.



Technical Specifications of TI400S/TI600S HD Thermal Camera

Item

TI400S

TI600S

Detector Data

Type

Uncooled FPA

IR resolution

384×288

640×480

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

70mK

Lens

FOV

24°×18°

IFOV

1.2mrad

0.68mrad

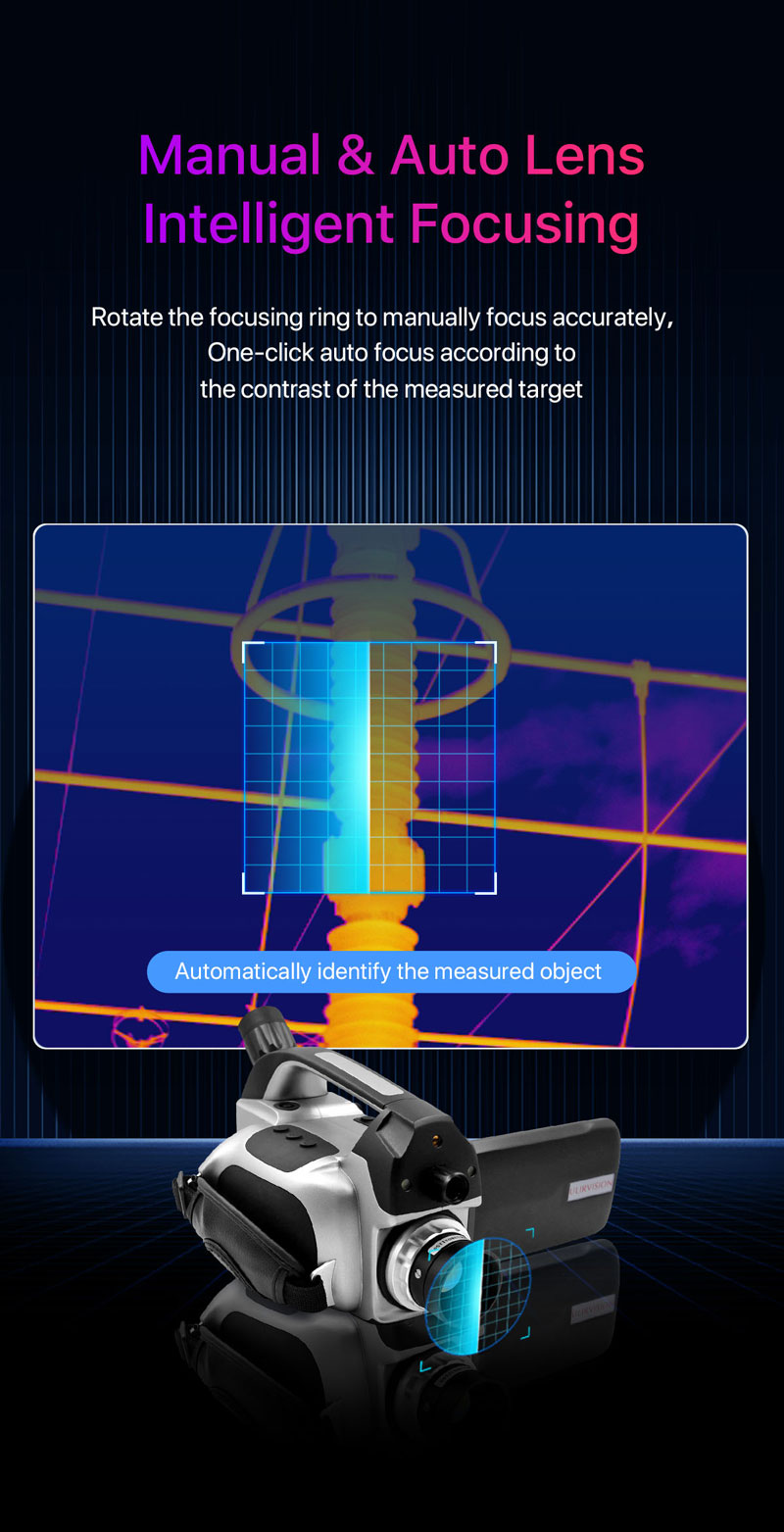

Focus

Auto/Motor/Manual

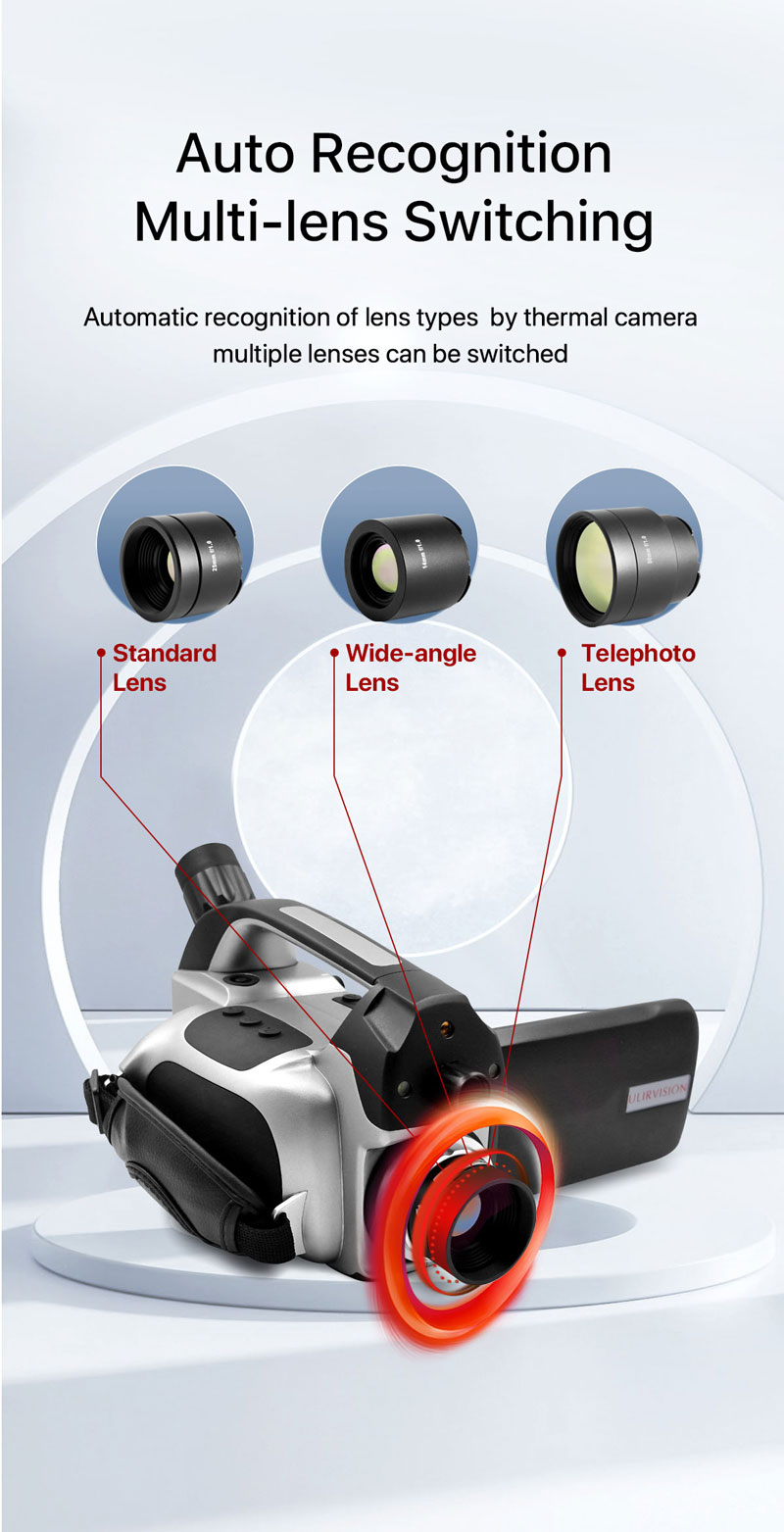

Lens(optional)

47°×35°/50cm、12°×9°/1m、6.3°×4.7°/4m

45°×33°/50cm、12°×9°/1m、6.2°×4.7°/8m

Image Performance

Display

5”,270° rotatable LCD,800×480 pixels

Visual camera

5.0 mega pixel

Frequency

50Hz/60Hz

Zoom

1X~10X continuous

Color palettes

12 palettes(including iron, rainbow, white hot and black hot etc.)

Contrast/brightness

Auto/Manual

Measurement

Temperature range

-20℃~+150℃,100℃~600℃(can be extended to 1200℃)

Temperature accuracy

±2℃/±2%(reading)

Spotmeter

10 adjustable spots

Line profile

Vertical/Horizontal

Area

5 adjustable boxes with max./min./avg temperature value

Isotherms analysis

Capture high/low temperature/interval

Alarm

Voice, color

Dew point alarm

Yes

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background temperature correction

Auto

Atmospheric transmissivity correction

Auto

Setting function

Date/time, temperature unit ℃/℉/K, language

Video

Can be recorded and saved

Image Storage

Storage media

64G SD card, >38400 images

64G SD card, >128000 images

Storage mode

Auto/manual store image in frame

Thermal image format

JPEG, with 14-Bit measured data image

Visible light image format

JPEG or stored with signal frame image

Voice annotation

60s voice record, stored with per image via built-in microphone

Text Annotation

Support 30 preset text annotations(editable)

Laser Point

Grade/Type

Class 2,1mW/635nmRed

Interfaces

Power interface

Yes

SD card slot

Yes

WIFI

Yes

Bluetooth

Yes

Video output

CVBS

Audio output

Yes

USB

USB 2.0

Tripod

1/4” -20

Power System

Battery type

Lithium battery

Battery operation time

3h continuous

External power

DC: 10V~15V

Charging system

Intelligent charger or in camera(AC adapter or 12V car charger)

Power saving

Yes

Environment Parameters

Operation temp range

-20℃~+50℃

Storage temp range

-40℃~+70℃

Humidity

≤95%(Non-condense)

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

Encapsulation

IP54(IEC60529)

Physical Data

Size

215mm×145mm×135mm

Weight

≤1.6kg(with battery and standard lens)

Packing

Standard

Thermal imaging camera with standard lens, 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate

Option

Laptop, SLR camera

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of TI400S/TI600S Thermal Scanner Camera

With its excellent performance, our TI400S/TI600S thermocamera is widely used in the following fields:

  • Building Diagnostics

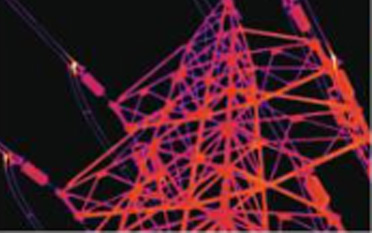

  • Electrical/Mechanical Inspection

  • Research & Development

  • Automation Applications

  • Preventative & Predictive Maintenance
