T5/T6 Thermal Imaging Cameras

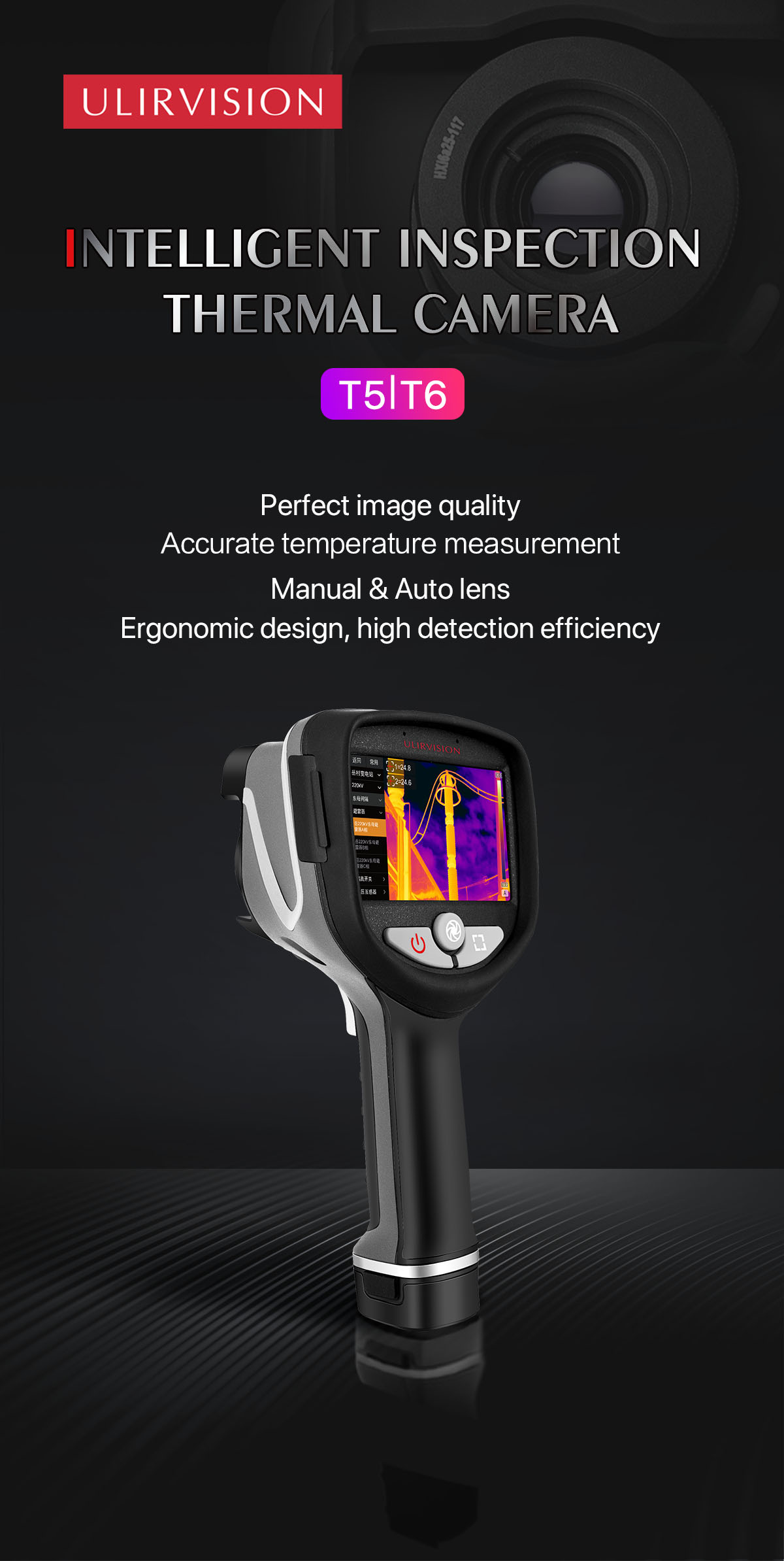

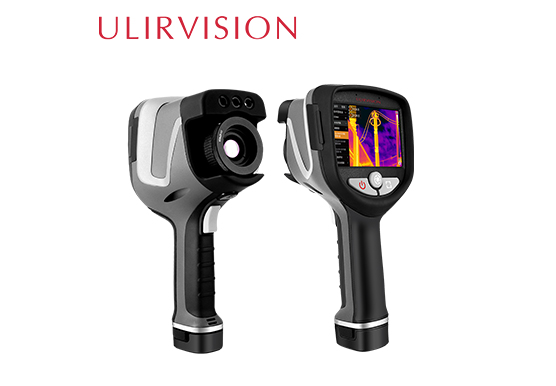

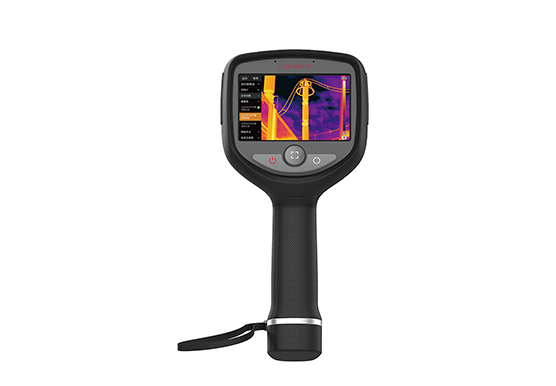

Overview of T5/T6 Thermal Imaging Camera

ULIRVISION T5|T6 are with ergonomic design, high performance with 5MP visual camera, interchangeable lens, 4,3” touch screen, manual & auto focus. It can provide powerful assistance for thermographers to have the most efficient instrument for maintenance inspections.

T5|T6 have a wide range temperature measurement to satisfy variety of thermograph applications and they enable you to identify the small temperature difference that could cause big problems.

Features of T5/T6 Thermal Imaging Camera

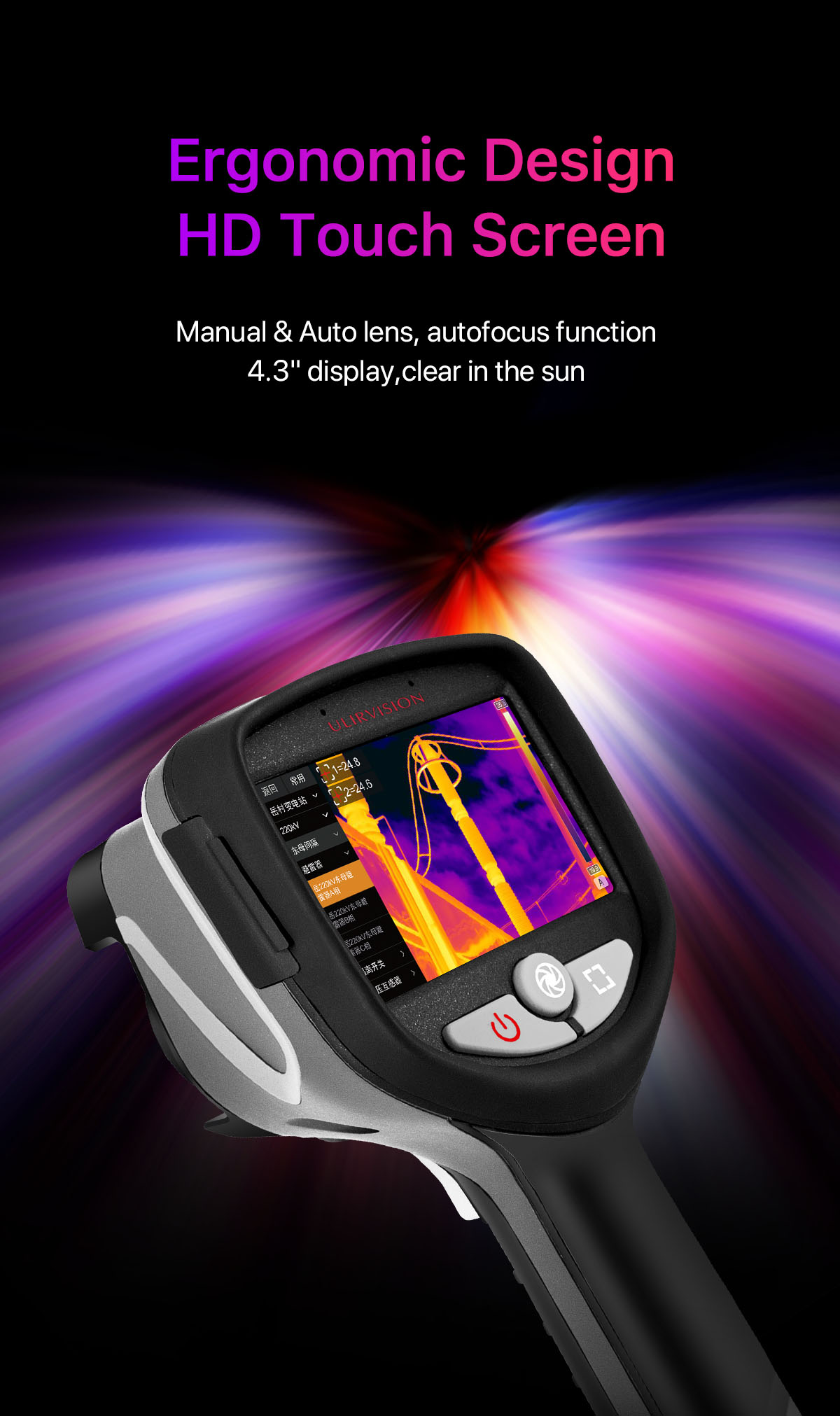

  • 4.3” touch screen display

  • Auto/Manual focus

  • Built-in digital camera, 5.0MP resolutions

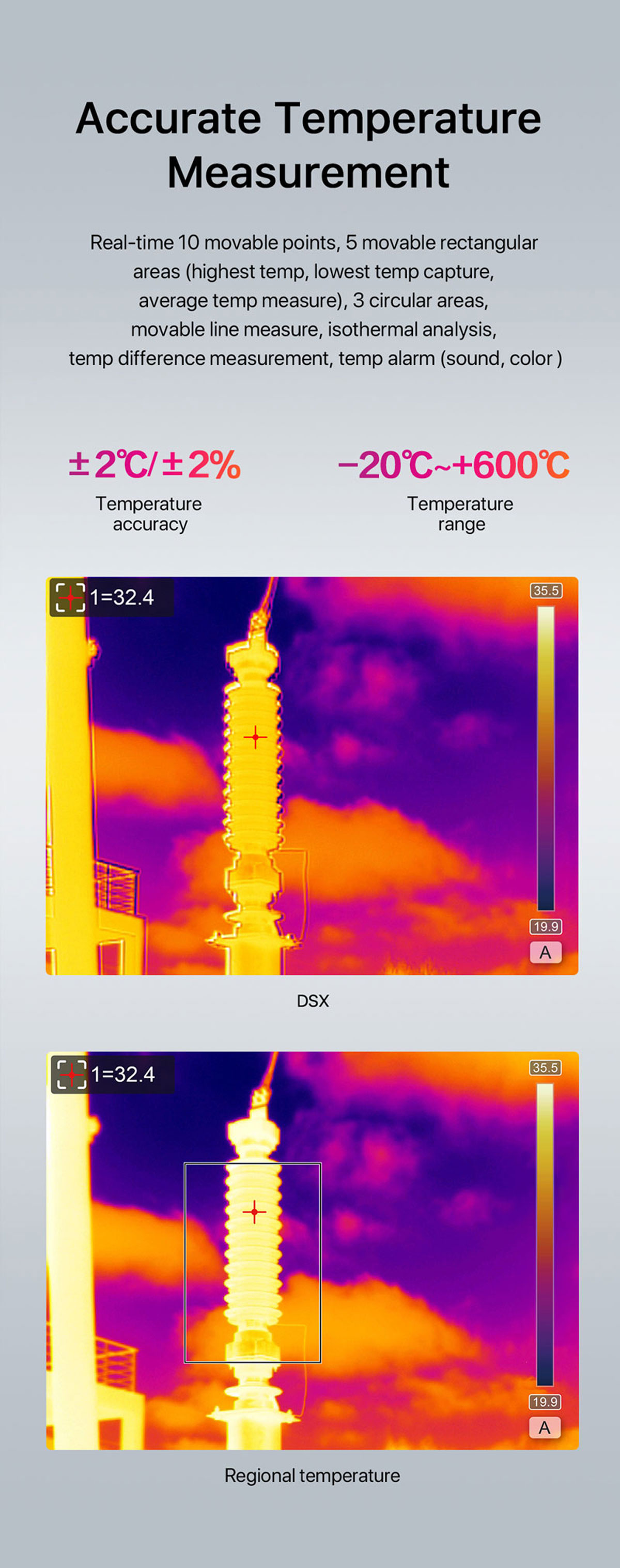

  • Multiple measurement: 10 spots, 5 vertical/horizontal lines, 5 boxes & 3 circles

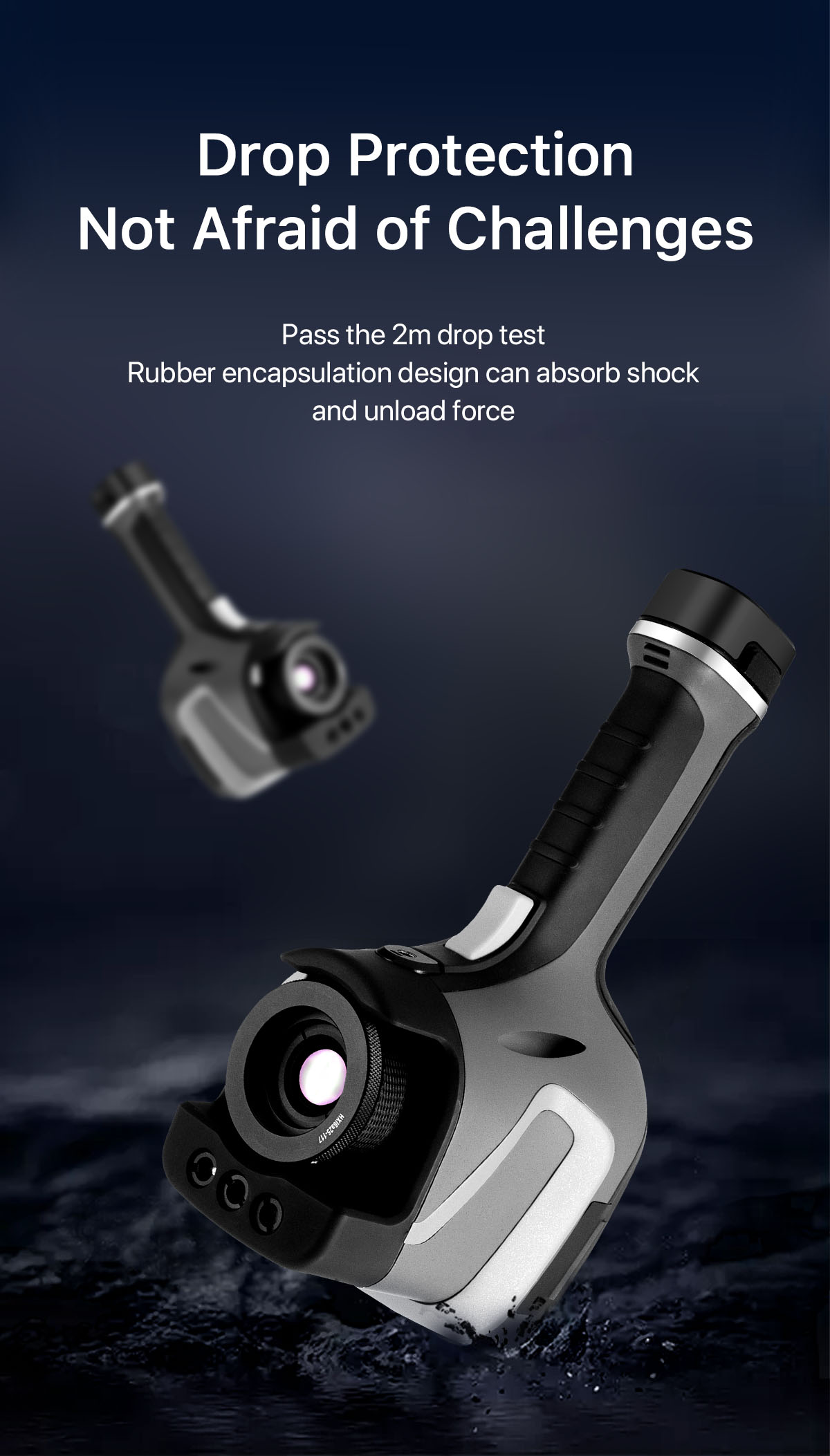

  • 2-meter drop protection

Technical Specifications of T5/T6 Thermal Imaging Camera

Item

T5

T6

Detector Data

Type

Uncooled FPA

IR resolution

384×288

640×480

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

70mK

Lens

FOV

24°×18°

IFOV

1.13mrad

0.68mrad

Focus

Auto/Manual

Lens Identification

Automatic

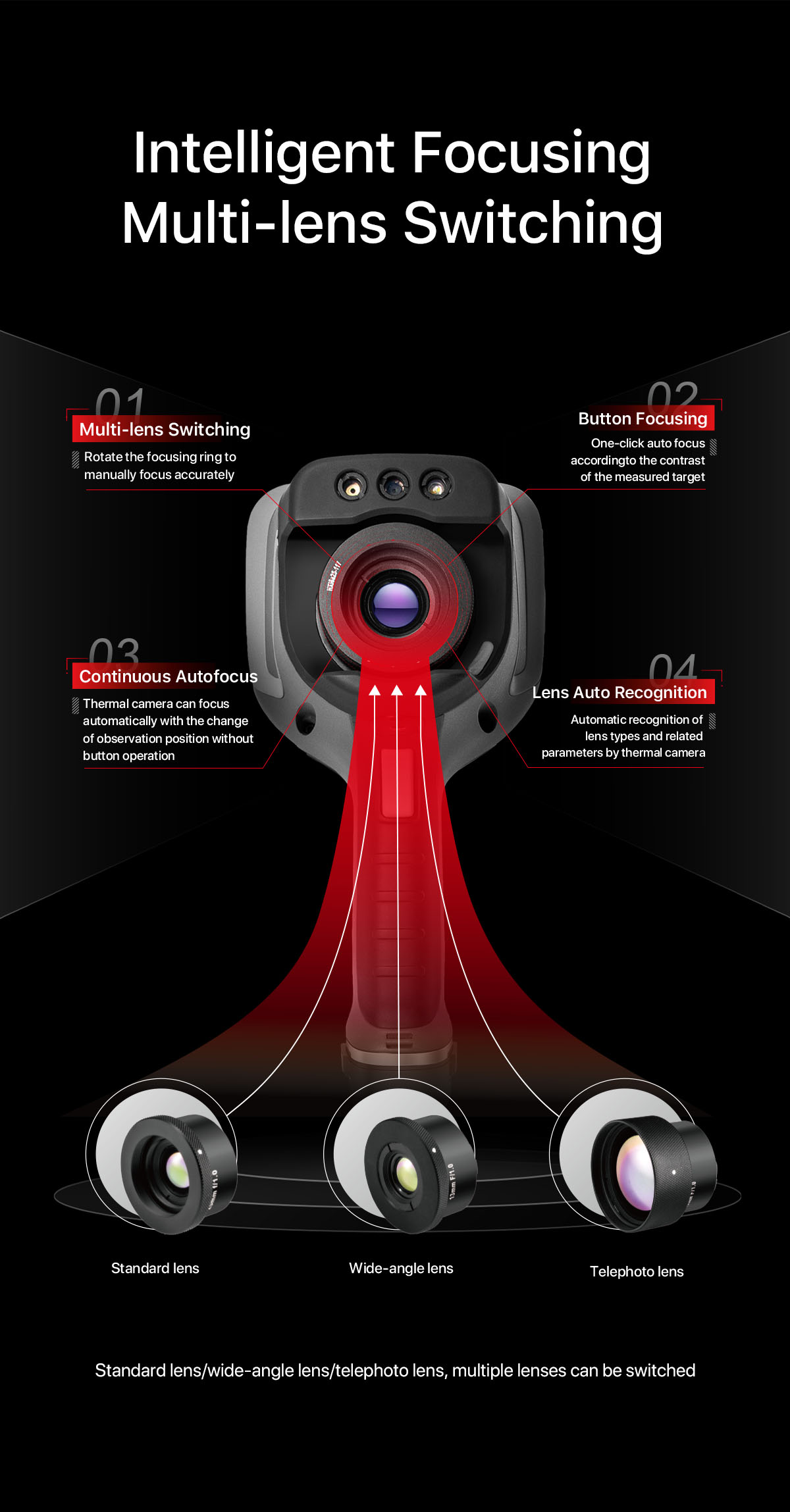

Lens(optional)

45°×33°,12°×9°

Image Performance

Display

4,3” touch screen,LCD with 800×480 pixels

Visual camera

5.0 mega pixel

Frequency

50Hz/60Hz

Zoom

1X~10X continuous

Color palletes

12 palletes (including iron, rainbow, white hot and black hot etc.)

Contrast/brightness

Auto/Manual

Measurement

Temperature range

-20℃~+600℃(can be extended to 1200℃)

Temperature accuracy

±2℃/±2%(reading)

Spotmeter

10 adjustable spots

Line profile

5 Vertical/Horizontal

Area

5 adjustable boxes & 3 adjustable circles with max./min./avg. temperature value

Isotherms analysis

Capture high/low temperature/interval

Alarm

Voice, color

Dew point alarm

Yes

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background  temperature  correction

Auto

Atmospheric  transmissivity correction

Auto

Setting function

Date/time, temperature unit ℃/℉/K, language

Video

Can be recorded and saved

Image Storage

Storage media

64G SD card, >128000 images

64G SD card, >38400 images

Storage mode

Auto/manual store image in frame

Thermal image format

JPEG, with 14-Bit measured data image

Visible light image format

JPEG or stored with signal frame image

Voice annotation

60s voice record, stored with per image via built-in microphone

Text Annoation

Support 30 preset text annotations(editable)

Laser Point

Grade/Type

Class 2,1mW/635nmRed

Interfaces

Power interface

Yes

SD card slot

Yes

WIFI

Yes

Bluetooth

Yes

Video output

HDMI

USB

USB 2.0

Power System

Battery type

Lithium battery

Battery operation time

4h continuous

External power

DC: 10V~15V

Charging system

Intelligent charger or in camera(AC adapter or 12V car charger)

Power saving

Yes

Environment Parameters

Operation temp range

-20℃~+50℃

Storage temp range

-40℃~+70℃

Humidity

≤95%(Non-condense)

Shock

2G(IEC60068-2-6)

Vibration

25G(IEC60068-2-29)

Encapsulation

IP54(IEC60529)

Physical Data

Size

262mm×125mm×138mm

Weight

≤950g(with battery and standard lens)

Packing

Standard

Thermal imaging camera with standard lens, 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate


Applications of T5/T6 Thermal Imaging Camera

  • Building Diagnostics

  • Electrical/Mechanical Inspection

  • Research & Development

  • Automation Applications

  • Preventative & Predictive Maintenance
