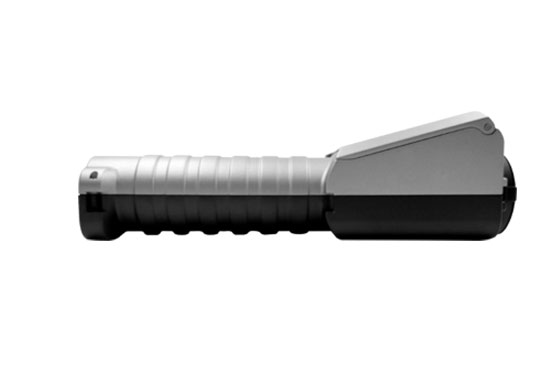

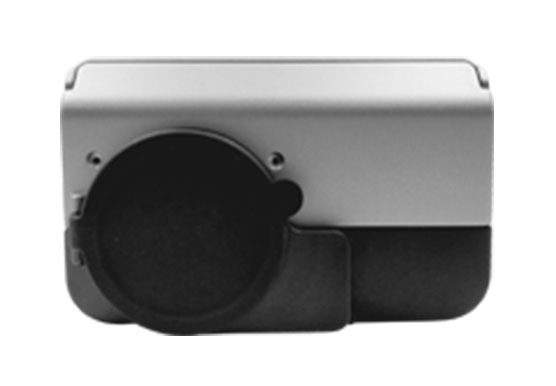

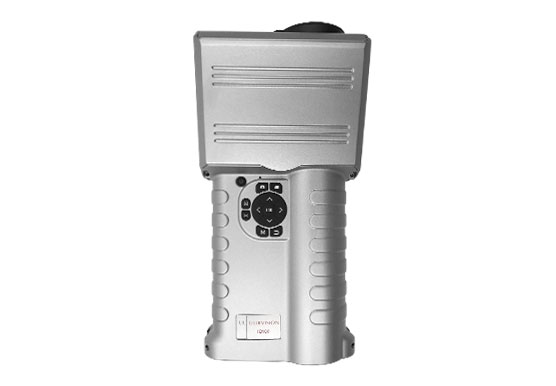

TD100 Corona Camera

Overview of TD100 Mini UV Camera

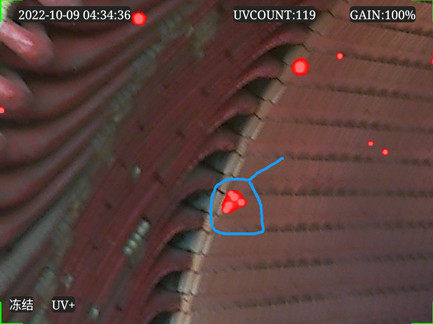

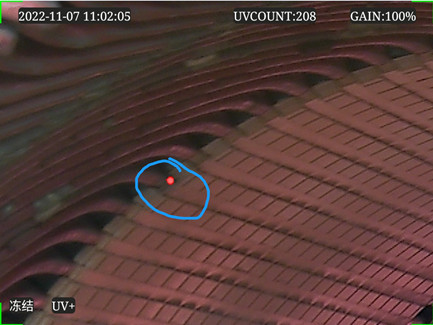

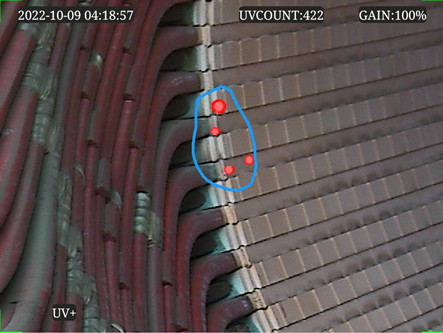

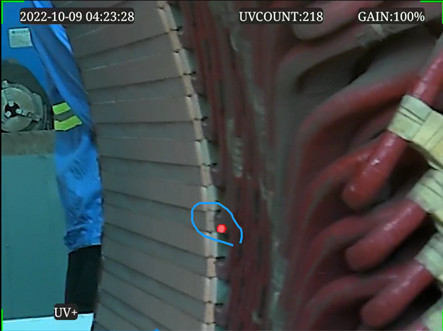

After our innovation updates, new items are launched—TD100 mini UV camera. ULIRVISION TD100 is an innovative NDT - Non-Destructive Testing equipment, which detects, pinpoints and documents flash-arc corona and arcing partial discharge camera. Equipped with high sensitivity, it is a powerful tool to detect UV emission in full daylight with high signals from faraway and nearby sources.


TD100 UV digital camera is a preferable predictive maintenance device for overhead transmission lines and high voltage substations. It has a wide range of use in different areas, such as Transmission line inspection, electrical utilities, HV research institutes, HV electrical component inspection, etc. Therefore, whatever the usage you need, TD100 UV digital camera can always satisfy you and help you solve the special problem!

Features of TD 100 Mini UV Camera

  • High sensitivity up to 3.0 × 10-18watt / cm2

  • Noise interference is small, using all-day blind detector

  • Accurate superposition and positioning of the whole area of ultraviolet and visible light

  • Hand-held inspection, easy to complete the inspection

  • Synchronous focusing of ultraviolet and visible light

  • SD card online upgrade function

  • High integration and low power consumption

  • Professional report analysis software, more conducive to on-site situation analysis

  • Small size, light weight, easy to operate

Technical Specifications of TD100 UV Imaging Camera

Item

TD100

UV – Optical Properties

Minimum UV sensitivity

3.0×10-18watt/cm2

Minimum discharge detection

5pC@10m

Radio voltage detector sensitivity

3.6 dBμV @ 1MHz

Spectral range

240-280nm

FOV

6.4° x 4.8°

Focus

Auto/Manual(Follow visible light)

Zoom

2X

Focus range

1.5m~∞

Detector life span

No degradation

Visible – Optical properties

Minimum visible light sensitivity

0.1 Lux

Color

Auto switch between color and BW

Focus

Auto/Manual

Focus range

1m~∞

Zoom

12x(Digital)、10x(Optical)

Image Performance

LCD screen

Visible 5” LCD screen under sunlight, 800×480

Image modes

Display only ultraviolet light image/display only visible light image/combination of visible light and ultraviolet light

UV/Visible overlay accuracy

≤1mrad

Status indicators

Battery power, gain, photons, date, focusing mode, stacking module, GPS

User configuration settings

Corona color (White, Red , Green, Yellow, Purple) , Time, Sleep Mode, Alarm threshold

Image Storage

Image format

JPG

Video format

AVI

Media download

Via Card Reader, USB

Audio

Sync with video/Note in picture

Playback

Video/Pictures/Audio

SD card

Maximum 32G

Software upgrade

SD card online upgrade

Storage capacity

1000+ images or >1 hr video/1GB

Control& Operation

Working modes

Real time, standby, off

Control inputs

Key, USB

Output Interface

CVBS

PAL/NTSC

Micro USB

Micro interface, video direct transmission, communication

Tripod

1/4”-20

Power System

External power

DC: 9V~12V

Battery type

Lithium battery (rechargeable)

Operation runtime

4h continuous (normal temperature)

Power consumption

10W

Mains adaptor

AC:110V~240V or DC: 50Hz~60Hz/9V 3.8A

Environmental Data

Operation temp range

-10℃~+50℃

Storage temp range

-25 ℃~+60℃

Humidity

90% (non-condense)

Encapsulation

IP54

Physical Characteristics

Size

290mm×136mm×87mm

Weight

1.39kg

Packing

Standard

Corona camera, battery, charger, SD card, SD card reader, video cable, USB cable, adapter, software CD, safety box, headset manual, warranty card, certificate

Option

Tripod

Quality assurance

EMC

CE, IEC1010-1


Applications of TD 100 UV Imaging Camera

  • Transmission line inspection

  • Electrical utilities inspection

  • HV substations

  • HV research institutes

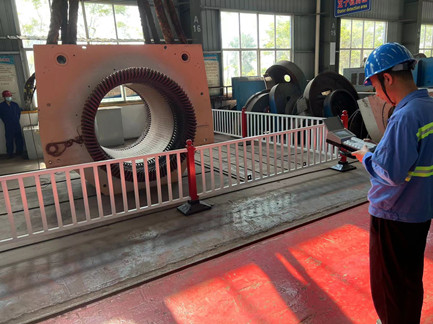

  • HV electrical component inspection
