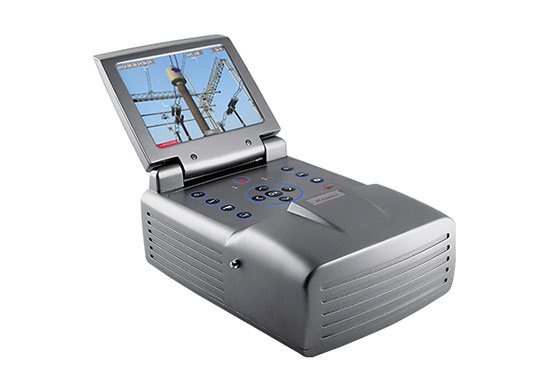

TD90 Corona Camera

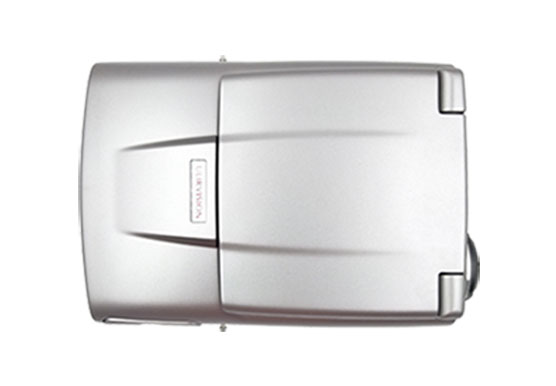

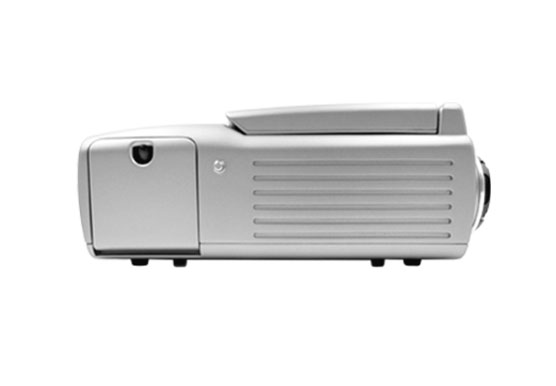

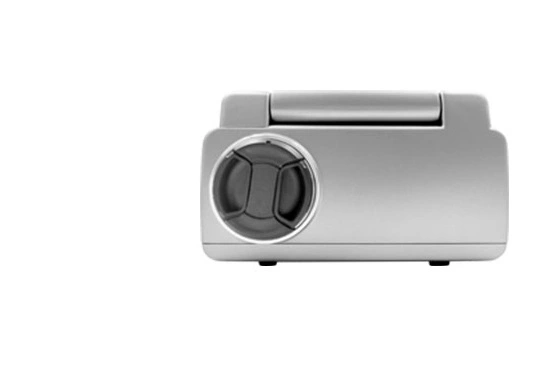

Overview of TD90 UV Sensitive Camera

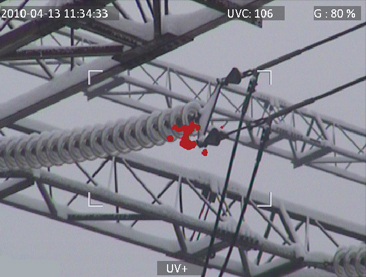

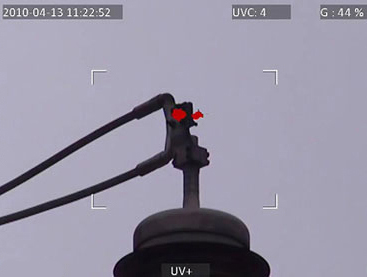

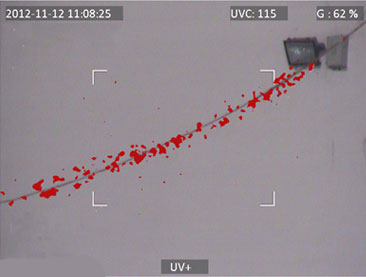

ULIRVISION UVSee TD90 is an innovative NDT - Non-Destructive Testing equipment, which detects, pinpoints and documents flash-arc corona and arcing partial discharge camera. It is a powerful device to detect UV emission in full daylight with high signals both from far away and nearby sources.

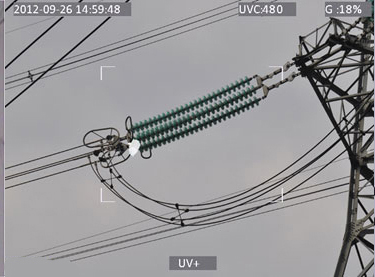

TD90 UV sensitive camera is also widely used in overhead transmission lines and high voltage substations. In many different areas, such as transmission line inspection, electrical utilities, HV research institutes laboratories and so on, you can use TD90 UV ray camera to help solve your problem.


Features of Ultraviolet Light Camera

  • High sensitivity to UV signals

  • Fully auto focusing function, intelligent operation

  • Auto focus of UV and visible channels

  • Light Weight 2.5kg, small size

  • 5.7” foldable color LCD, readable in the sun

  • Professional report analysis software, more conducive to on-site situation analysis


Technical Specifications of TD90 UV Ray Camera

Item

TD90

UV – Optical Properties

UV sensitivity

≤2.2 x 10-18watt/cm²

Minimum discharge detection

1pC @ 10 meters

Spectral range

240-280nm

FOV

5.5° x 4.0°

Focus

Auto/Manual

Focus range

2m~∞

Detector life span

No degradation

Visible - Optical properties

Visible light sensitivity

0.1 Lux

Focus

Auto/Manual

Zoom

12x(Digital)、25x(Optical)

Image Performance

Image Display

5.7” VGA color transflective sunlight readable LCD, folding 640×480

UV image enhancements

Digital Filtering denoising

Image frozen

Freeze the real-time image

Frequency

50Hz

Modes

Combined (UV & visible), UV only, Visible only

Video standard

PAL/NTSC

Image Storage

Image format

JPG

Video format

AVI

Media download

Via Card Reader, USB

Audio format

WAV

Playback

Video/Pictures/Audio

SD card

8G SD card, 64G SD card optional

Storage capacity

8000 images or 4 hr video

Data Process

UV/Visible Overlay Accuracy

Better than 1 milliradian

UV image integral time

Can set the integral time

Video streaming

H.264 standard

Functional Characteristics

Alarms

Audio or LED

Location

GPS

Software upgrade

Upgrade via SD card

Analysis Software

Generate report

Output Interface

Power interface

Yes

Video output

CVBS

Audio output

Microphone

SD card slot

Yes

Tripod

1/4”-20

Power System

External power

AC: 110V-240V / DC: 50-60Hz/9V 4A

Battery type

Rechargeable Li-Ion

Operation runtime

2h

Charge

Online charging or charger

Power consumption

≤10W

Power saving

Yes

Environmental Data

Operation temp range

-10 ℃~+50℃

Storage temp range

-25 ℃~+60℃

Humidity

≤95% (non-condense)

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

Encapsulation

IP54(IEC60529)

EMC

EN61000-6-4&EN61000-6-2/FCC47CFR Part15 class A/EN61000-4-8.L5

Physical Characteristics

Size

238mm×165mm×91mm

Weight

≤2.5kg

Packing

Standard

Corona Camera UVSee TD90,AC power adapter,2pcs Li-ion battery,charger,SD card,SD card reader,video cable,CDROM ( UVSee software and Manual), Warranty card, Strap, transport case, USB Cable

Option

Laptop, Tripod

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of TD90 UV Ray Camera

  •  Transmission line inspection

  •  Electrical utilities inspection

  •  HV substations

  •  HV research institutes

  •  HV electrical component inspection
