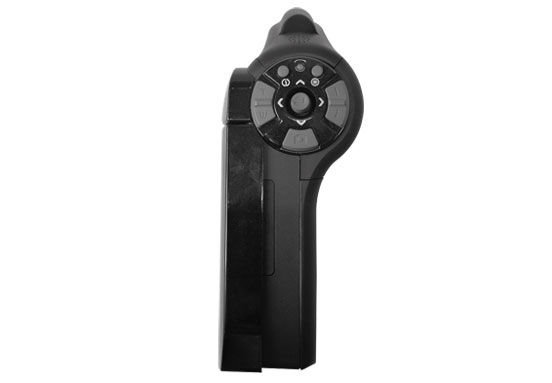

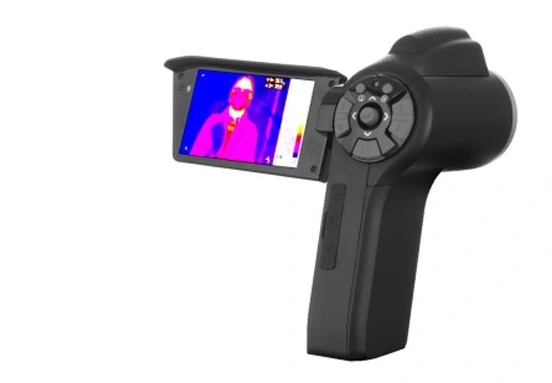

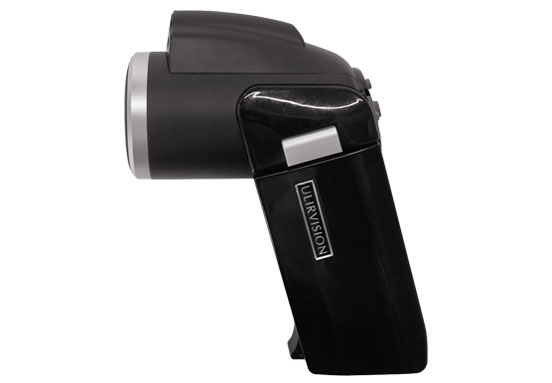

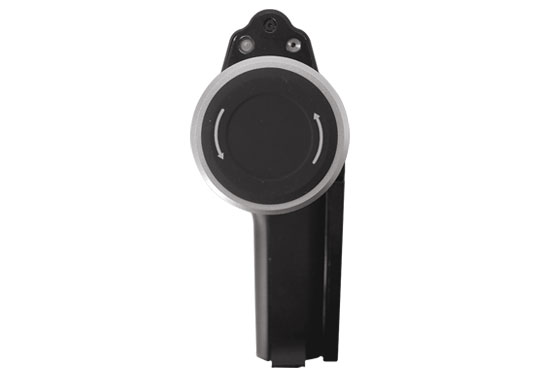

TI160-P1 384×288 Handheld Body Temperature Measuring Thermal Imaging Camera

Overview of TI160-P1 Infrared Body Surface Temperature Rapid Screening Camera

TI160-P1 is a specially designed infrared human body temperature measurement camera. High accurate temperature measurement, real-time imaging, high-temperature auto-tracking, quickly lock the target, etc. are part of the characters. This infrared camera for body temperature can be used in public places for investigation of human body temperature, in order to prevent the spread of disease. It is compact and lightweight, which is easy to use.


Features of TI160-P1 Thermal Imaging Camera

This TI160-P1 infrared camera for body temperature is easy to use and has the following features:

  • 384×288 Uncooled detector

  • Measurement accuracy ≤0.5℃

  • Visible and infrared image fusion and overlay

  • It can alarm through sound and light, 40 seconds voice recording

  • Multiple temperature measurement modes for you to choose

  • 3.2” Rotatable display for viewing at different angles, which can improve your work

  • Motorized lens, autofocus function

  • Palm design, weighing only 400g, light weight

  • Free professional analysis software for you


Technical Specifications of TI160-P1 Infrared Body Surface Temperature Rapid Screening Camera

Item

TI160-P1

Detector Data

Type

Uncooled FPA

IR resolution

384×288

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

50mK

Lens Data

FOV

24°× 18°

Minimum imaging distance

30cm

IFOV

1.2mrad

Focus

Motor/Auto

Lens(optional)

45°×34°/15cm, 12°×9°/1m

Image Performance

Display

High definition 3.2 ”color digital LCD display, rotatable,800×480

Visual camera

3 megapixel CMOS, auto focus, 1 led fill light

Frequency

50Hz/60Hz

Amplification

1X~8X Continuous zoom

Color palettes

12 options (including iron red, rainbow, black hot and white hot)

Contrast/Brightness

Auto/Manual

Measurement

Temperature range

+30℃~+45℃

Measurement accuracy

±0.5℃

Measurement mode

Real-time 4 movable points, 3 movable areas (highest temperature, lowest temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)

Measurement correction

Auto/Manual

Emissivity correction

Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter

Background temperature correction

Auto (based on the entered background temperature)

Atmospheric transmissivity correction

Auto (according to the entered distance, relative humidity, ambient temperature)

Function settings

Date / time, temperature unit ℃/℉/K, language

Image storage

Built-in memory

Yes, can store> 500 frames

Storage media

8G, can store> 8000 frames

Storage method

Auto / manual single frame image

Single frame infrared image format

JPEG format with 14-bit measurement data image

One frame visible image format

JPEG format, or stored with a single frame image (PIP)

Voice annotation

40s voice format, stored with image (built-in microphone)

Laser indicator

Laser classification

Second level

Laser power

1mW

Laser wavelength

635nm red

Interface

Power interface

Yes

SD card slot

Yes

Video output

CVBS

Audio output

Yes

USB interface

USB2.0, Image, measurement data, voice transmission to computer

Tripod

1/4” -20

Power System

Battery type

Lithium battery, rechargeable

Operating time

3h continuous working (room temperature)

External power

DC: 5V, ±5%

Charging system

Smart charger or local charger

Power saving

Yes

Environment Parameters

Operating temperature range

+16℃~+32℃

Storage temperature range

-40℃~+70℃

Humidity

≤95%(non-condensing)

Shock

25G(IEC60068-2-29)

Vibration

2G(IEC60068-2-6)

Encapsulation

IP54(IEC60529)

Physical data

Size

128mm×62mm×154mm

Weight

≤0.4kg(With battery and standard lens)

Packing


Standard

Thermal Imaging Camera(with standard lens), 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book

Optional accessories

Laptop, SLR

Quality assurance

ISO9001

Yes

CE

Yes

Third-party detection

Type Approval Certificate of Measuring Instruments issued by Zhejiang Quality and Technical Supervision Bureau


Application of TI160-P1 Thermal Imaging Camera

Ulirvision's TI160-P1 infrared camera for temperature measurement is widely used in the following areas:

  • clinical diagnosis

  • veterinary

  • Medical Research

  • Disease field

  • Public area
