Zoom Lens


Focal Length (mm)F NumberAdapter DetectorField of ViewRear Working Distance (mm)InterfacePhysical DimensionWorking TemperatureCoating Waterproof RatingCoating

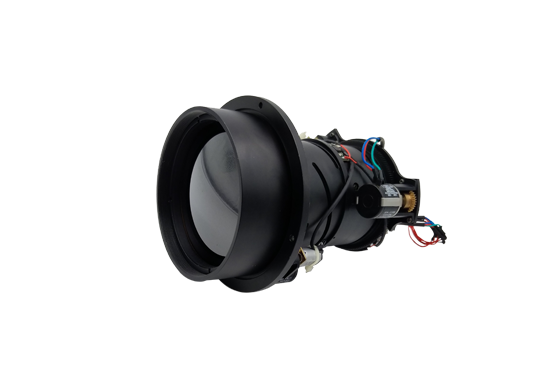

Zoom Lens25~750.9~1.1640*512-17μm24.6°*19.8°~
8.3°*6.6°
8FlangeL157 ψ121-40℃~60℃IP67HC
25~1000.9~1.1640*512-17μm24.6°*19.8°~
6.2°*5°
22FlangeL190 ψ130-40℃~60℃IP67HC

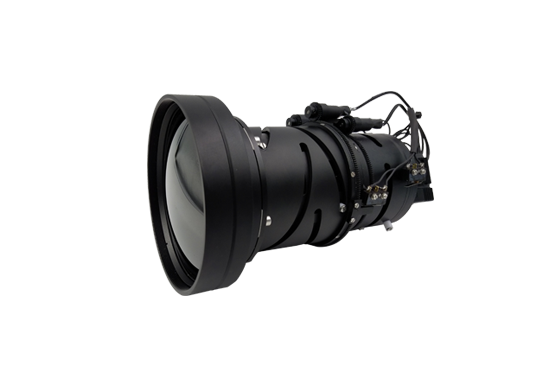

30~1500.85~1.2640*512-17μm20.6°*15.5°~
4.2°*3.1°
12FlangeL225 ψ158-40℃~60℃IP67HC

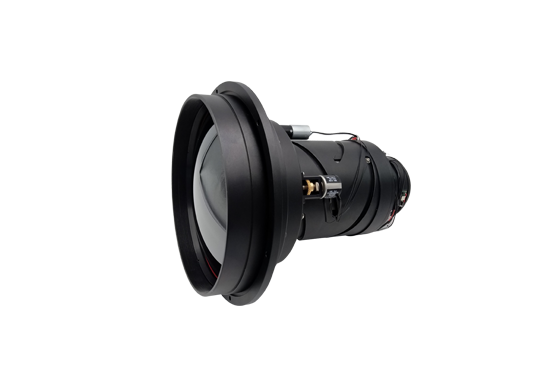

25~2250.85~1.3640*512-17μm24.6°*19.8°~
2.8°*2.2°
14FlangeL246 ψ196-40℃~60℃IP67HC
