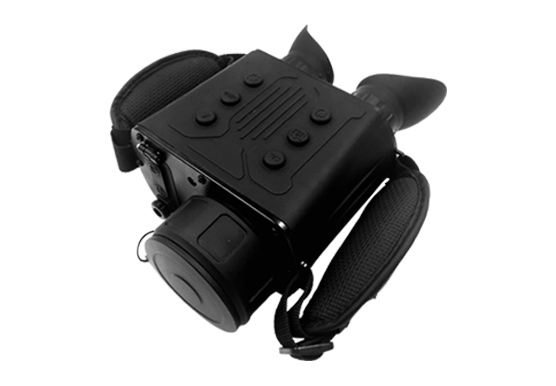

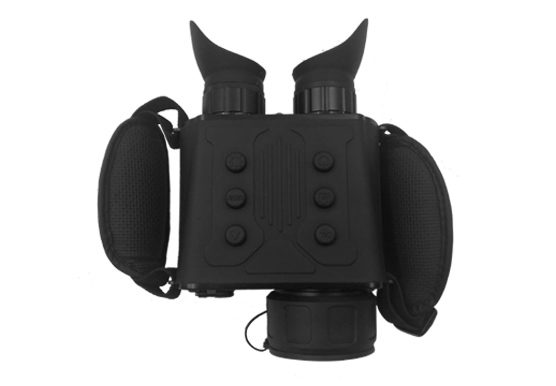

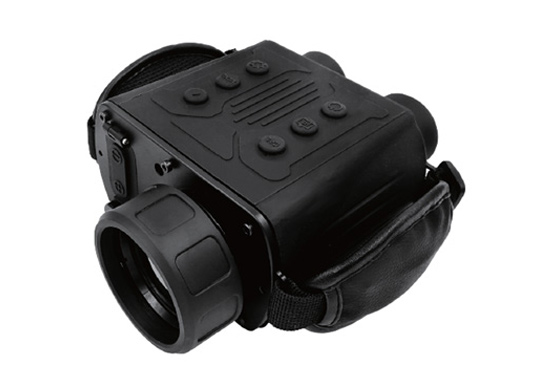

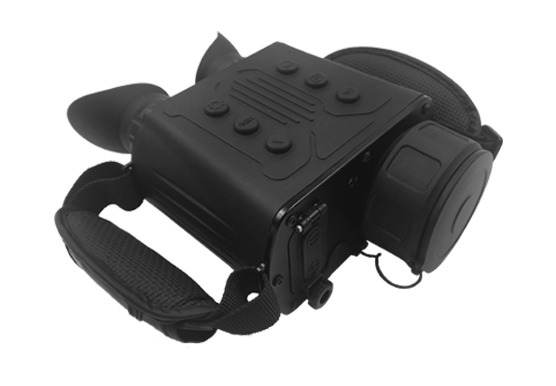

Wolf30 /Wolf60 Thermal Imaging Binocular

Overview of Thermal Imaging Binocular Wolf30/Wolf60


Wolf30/Wolf60 are equipped with high-sensitivity thermal imaging module. You can also set to store images and videos. Quick start and flexible & easy operation will never let you down. Night, rain, snow, smoke and other extreme weather or bad conditions still can't prevent the device from providing a clear target image.

Features of Thermal Imaging Binocular Wolf30/Wolf60


  • Built-in photo and video functions

  • Proximity sensor with light leakage prevention

  • Take photos and record them in the device

  • Electronic compass

Technical Specifications of Thermal Imaging Binocular Wolf30/Wolf60


Item

Wolf30

Wolf60

Detector Data

Type

Uncooled FPA

Material

aSi

IR resolution

384×288

640×480

Pixel pitch

17μm

Spectral range

8~14μm

NETD/Sensitivity

≤70mK

≤60mK

Lens Data

Focal distance

50mm

75mm

50mm

75mm

FOV

7.5°×5.6°

5.0°×3.7°

12.4°×9.3°

8.3°×6.2°

Recognition distance(Vehicle)

1200m

1600m

1200m

1600m

Recognition distance(Human)

420m

600m

420m

600m

Eye relief

22mm

Diopter

-5~+5

Image Performance

Display

800×600 binocular OLED

1024×768 binocular OLED

Polarity/LUT mode

Black hot/White hot

Frequency

50Hz

Focus mode

Manual

Noise reduction

Digital filtering

Digital zoom

2X ,4X

2X, 4X

Image enhancement

Manual

Startup time

4s

Contrast/Brightness

Manual

Compass

No

Yes

Interfaces

Format

Composite aviation plug

Power interface

Yes

Video output

PAL

Storage card

32G

Power System

Battery type

2pcs 18650 lithium batteries

Operation time

≥6h continuous(normal temperature)

≥4.5h continuous(normal temperature)

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-45℃~+70℃

Encapsulation

IP67

Vibration& Shock

MIL-STD-810F

Physical Data

Size

183mm×138mm×76mm(without eyepiece)

195mm×140mm×90mm(without eyepiece)

Weight

<1.2kg(50mm lens with battery)

≤1.3kg(75mm lens with battery)

Packing

Standard

Thermal imaging binocular, 4pcs batteries, Charger, Composite output cable, Warranty card, User manual, Certificate, Transport case

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of Thermal Imaging Binocular Wolf30/Wolf60


  • Law enforcement

  • Scouting

  • Searching and rescuing

  • Hunting
