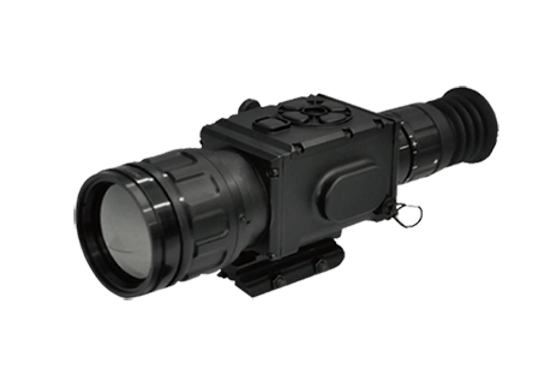

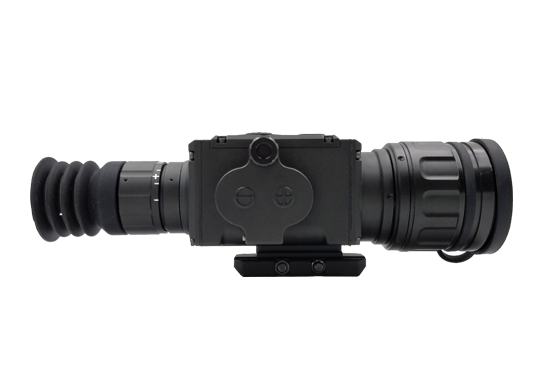

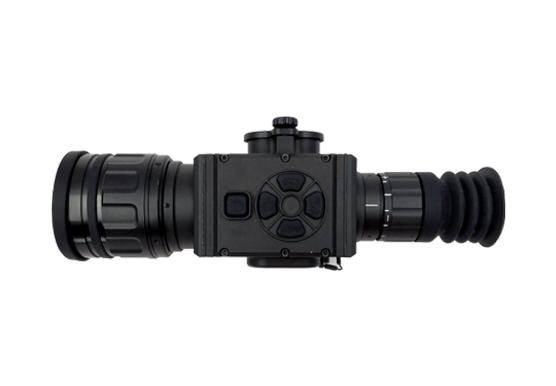

Eagle70CC Thermal Imaging Sight

Overview of  infrared night camera Eagle 70CC


Eagle70CC is the thermal weapon sight. With high resolution, it is widely used for law enforcement. Equipped with shutterless technology, it can continuously detect heat of targets. In severe conditions, such as total darkness, haze, dust, sleet, forest, grass, etc., this product can help you a lot.


Features of  infrared night camera Eagle 70CC


  • 640×480 High resolution

  • Shutterless technology, superior quality

  • 50Hz imaging in real time, clear imaging

  • Compact and anti-shock design, strong and sturdy

  • Photo & video recording


Technical Specifications of  infrared night camera Eagle 70CC


Item

Eagle 70CC

Detector Data

Type

Uncooled FPA

Material

aSi

IR resolution

640×480

Pixel pitch

17μm

Spectral range

8~14μm

NETD/Sensitivity

≤60mK

Lens Data

FOV/Focal distance

17.6°×13.2°/35mm

12.4°×9.3°/50mm

8.3°×6.5°/75mm

Focus range

3m~∞

5m~∞

8m~∞

Recognition distance(Vehicle)

950m

1200m

1600m

Recognition distance(Human)

320m

420m

600m

F

F 1.0

Eye relief

48mm

Diopter

-6~+4

Image Performance

Display

800×600 OLED

Image enhancement

IVE image enhancement algorithm

Frequency

50Hz

Zoom

2X, 4X

Polarity/LUT mode

Black hot/White hot

Reticle color

White/Black

Reticle type

6 reticle types

Startup time

4s

Contrast/brightness

Manual

Interfaces

USB

Yes

Picatinny rail

MIL-STD 1913

Video output

PAL

Storage card

32G

Power System

Battery type

2pcs 18650 lithium battery

Operating time

≥6h

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-40℃~+70℃

Encapsulation

IP67

Vibration

MIL-STD-810F

Shock

MIL-STD-810F

Physical Data

Size(without eyepiece)

187mm×87mm×77mm

213mm×87mm×77mm

252mm×99mm×87.5mm

Weight(with battery)

<900g

<1kg

<1.2kg

Packing

Standard

Thermal imaging sight, 4pcs batteries, Charger, Picatinny quick release interface, Composite output cable, Warranty card, User manual, Certificate, Transport case

Option

DC12V power adapter

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of infrared night camera Eagle 70CC


  • Searching and rescue

  • Targeting system

  • Law enforcement


Video:
