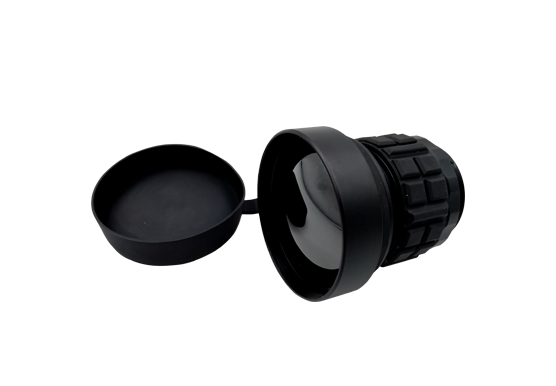

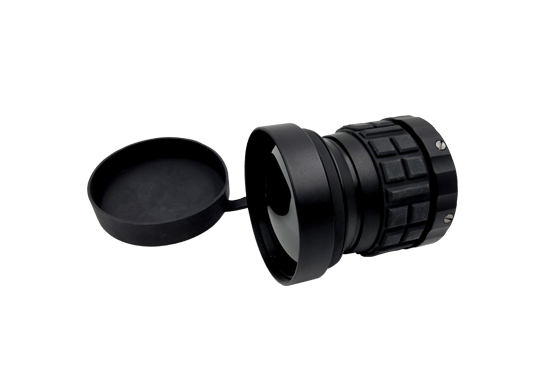

Manual Lens


Focal Length (mm)F NumberAdapter DetectorField of ViewRear Working Distance (mm)InterfacePhysical DimensionWorking TemperatureCoating Waterproof RatingCoating
Manual Lens351.0640*512-17μm17.7°*14.2°8M34*0.75L49.7 ψ54-40℃~60℃IP67HC
501.0640*512-17μm12.4°*9.9°8M49*1L77.2 ψ62-40℃~60℃IP67HC
751.0640*512-17μm8.3°*6.6°8M49*1L88.7 ψ86-40℃~60℃IP67HC
751.2640*512-17μm8.3°*6.6°6M45*1L84.3 ψ75-40℃~60℃IP67HC
1001.0640*512-17μm6.2°*5°8M49*1L88.7 ψ86-40℃~60℃IP67HC
1001.2640*512-17μm6.2°*5°6M45*1L100.2 ψ95-40℃~60℃IP67HC
