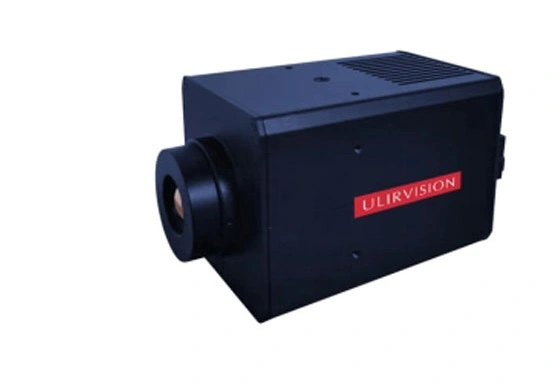

TI160-P4 Online Body Temperature Measuring Thermal Imaging Camera

Overview of TI160-P4 Thermal Camera for Body Temperature

TI160-P4 is an online infrared body temperature screener, which can be used for human body temperature measurement. Accurate temperature measurement, real-time imaging, high-temperature auto-tracking, and fast targeting enable it to be a powerful device. TI160-P4 thermal camera for body temperature has many features, such as compact structure, small size and lightweight, stable performance, high sensitivity, clear image, etc. If you are choosing an online monitoring system for human body temperature measurement, don’t miss this device.


Features of TI160-P4 Thermal Camera for Body Temperature

  • Stable performance and clear image display

  • Multiple lens for you to choose, autofocus is also available

  • Auto track high-temperature points and display temperature values

  • Real-time recording of the temperature data stream

  • Temperature data transmission up to 100M bandwidth

  • Professional analysis software and SDK software package

  • ONVIF protocol is supported

With the above features, Ulirvision's TI160-P4 thermal camera for body temperature offers you a reliable work performance.

Technical Specifications of TI160-P4 Thermal Camera for Body Temperature

Item

TI160-P4

Detector Data

Type

Uncooled FPA

IR resolution

384×288

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

80mK

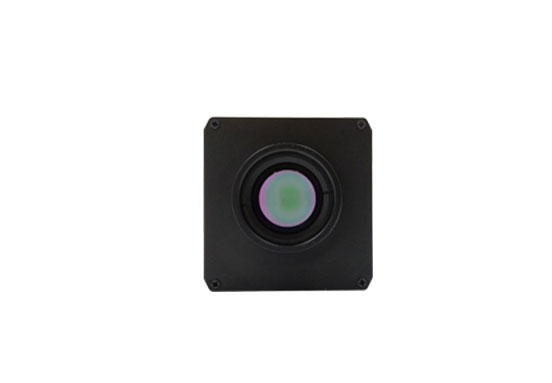

Lens Data

FOV

24°× 18°

Minimum imaging distance

30cm

IFOV

1.13mrad

Focus

Auto/Motor

Lens(optional)

15mm lens

Image Performance

Image enhancement

IVE image enhancement algorithm

Frequency

25Hz

Digital zoom

2X、4X

Color palettes

10 options (including iron red, rainbow, black hot and white hot, etc.)

Measurement

Temperature range

+30℃~+45℃

Measurement accuracy

±0.5℃ or ±0.3℃ (with blackbody)

Measurement correction

Auto

Highest temperature tracking

Real-time display of high-temperature point position and temperature value

Emissivity correction

Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter

Background temperature correction

Auto (based on the entered background temperature)

Atmospheric transmissivity correction

Auto (based on input reflected ambient temperature, distance, relative humidity, ambient temperature)

Filter or window transmittance

Auto (based on input transmittance)

Function settings

Date/time, temperature unit ℃/℉/K, language

Data storage

Temperature data

PC standard UTD format, analysis with IRX software

Temperature data flow

Device-side standard HXR format, can be played back with IRX software, with time stamp, adjustable playback speed, freezing, looping, and image processing during playback

Image format

Memory storage JPG format (With temperature data), PC side BMP, JPG

Video format

AVI format, H.264 compression

SD card interface

Built-in 32G high-speed TF card

Storage control

Serial port command, level trigger

Report

Word format with content selection guide

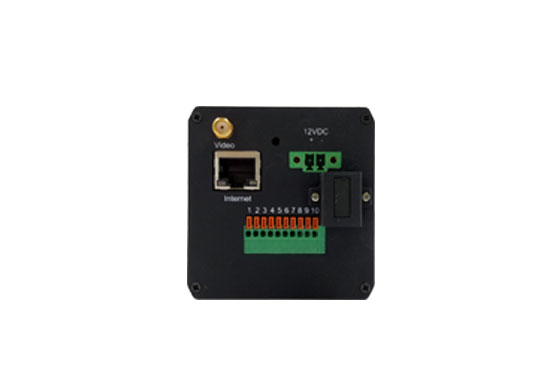

Interface

Network interface

100M / 1000m Ethernet, RJ45 interface, temperature data transmission

Video output

SMA RF interface

Control

RS232, RS485

Alarm I/O

Normally closed, normally open

API

Support SDK (Win & Linux), support ONVIF protocol

Power System

Working voltage

DC: 12V

Power consumption

<6w

Environment Parameters

Operating temperature range

-20℃~+50℃ (ambient temperature 10℃-32℃ accurate measurement)

Storage temperature range

-40℃~+70℃

Humidity

≤95%(non-condensing)

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

EMC

Consistent with CE/FCC

Physical data

Size

136mm(L)×65mm(W)×67mm(H)

Weight

≤500g

Mounting

UNC1/4-20 standard tripod interface, M3 thread interface

Packing

Standard

Thermal imaging camera, integrated cable, warranty card, certificate, case

Quality assurance

ISO9001

Yes

CE

Yes

Third-party detection

Type Approval Certificate of Measuring Instruments issued by Zhejiang Quality and Technical Supervision Bureau


Application of TI160-P4 Thermal Camera for Body Temperature

The TI160-P4 body temperature screening device can be used for both veterinary and human body temperature measurement. It is often used in the following fields:

  • Clinical Diagnosis

  • Veterinary

  • Medical Research

  • Disease field

  • Public Area
