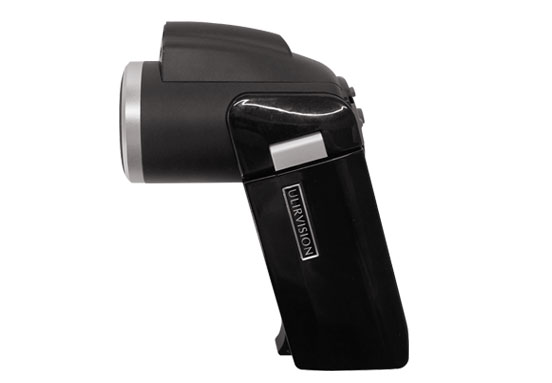

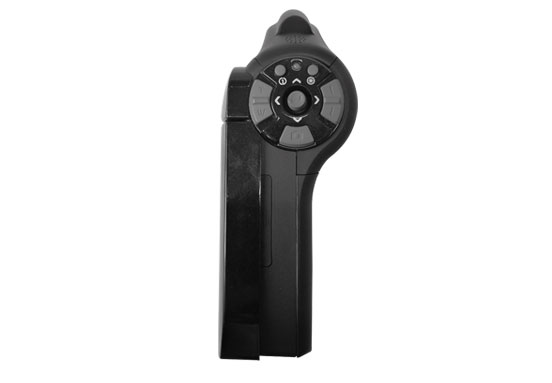

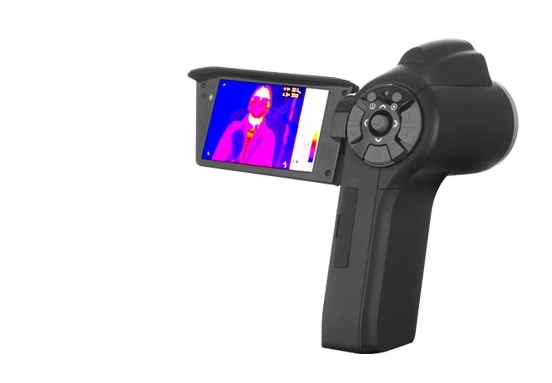

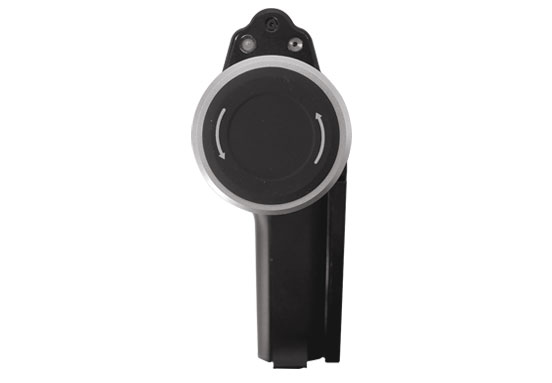

TI160-P5 160×120 Handheld Body Temperature Measuring Thermal Imaging Camera

Overview of TI160-P5 Body Temperature Camera

TI160-P5 is one of the thermal imaging cameras that can be used for human body temperature measurement. It can measure human body temperature accurately. It can form a clear image, and the device body is compact and lightweight. This body temperature camera is widely used in airport, dock, station and other public places. In addition, it can be quickly installed and will not be limited by places. Easy operation, free from technical personnel installation and debugging can greatly improve the detection efficiency.

Features of TI160-P5 Body Temperature Camera

  • 160×120 Uncooled detector

  • Measurement accuracy ≤0.5℃

  • Sound and light alarm, 40 seconds voice recording

  • Multiple temperature measurement modes for you: high and low-temperature auto-tracking, line temperature measurement, isothermal analysis

  • 3 megapixel visible light

  • Motorized lens, autofocus

  • Palm design, the weight is only 400g

  • Save the picture with temperature data, you can trace from the records

With all these features, the TI160-P5 imaging IR thermometer works accurately and stably.


Technical Specifications of TI160-P5 Body Temperature Camera

Item

TI160-P5

Detector Data

Type

Uncooled FPA

IR resolution

160×120

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

50mK

Lens Data

FOV

24°× 18°

Minimum imaging distance

15cm

IFOV

2.3mrad

Focus

Motor/Auto

Lens(optional)

45°×34°/15cm, 12°×9°/1m

Image Performance

Display

High definition 3.2 ”color digital LCD display, rotatable,800×480

Visual camera

3 megapixel CMOS, auto focus, 1 led fill light

Frequency

50Hz/60Hz

Amplification

1X~4X Continuous zoom

Color palettes

12 options (including iron red, rainbow, black hot and white hot)

Contrast/Brightness

Auto/Manual

Measurement

Temperature range

+30℃~+45℃

Measurement accuracy

±0.5℃

Measurement mode

Real-time 4 movable points, 3 movable areas (highest temperature, lowest temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)

Measurement correction

Auto/Manual

Emissivity correction

Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter

Background temperature correction

Auto (based on the entered background temperature)

Atmospheric transmissivity correction

Auto (according to the entered distance, relative humidity, ambient temperature)

Function settings

Date / time, temperature unit ℃/℉/K, language

Image storage

Built-in memory

Yes, can store> 500 frames

Storage media

8G, can store> 8000 frames

Storage method

Auto / manual single frame image

Single frame infrared image format

JPEG format with 14-bit measurement data image

One frame visible image format

JPEG format, or stored with a single frame image (PIP)

Voice annotation

40s voice format, stored with image (built-in microphone)

Laser indicator

Laser classification

Second level

Laser power

1mW

Laser wavelength

635nm red

Interface

Power interface

Yes

SD card slot

Yes

Video output

CVBS

Audio output

Yes

USB interface

USB2.0, Image, measurement data, voice transmission to computer

Tripod

1/4” -20

Power System

Battery type

Lithium battery, rechargeable

Operating time

3h continuous working (room temperature)

External power

DC: 5V, ±5%

Charging system

Smart charger or local charger

Power saving

Yes

Environment Parameters

Operating temperature range

+16℃~+32℃

Storage temperature range

-40℃~+70℃

Humidity

≤95%(non-condensing)

Shock

25G(IEC60068-2-29)

Vibration

2G(IEC60068-2-6)

Encapsulation

IP54(IEC60529)

Physical data

Size

128mm×62mm×154mm

Weight

≤0.4kg(With battery and standard lens)

Packing

Standard

Thermal Imaging Camera(with standard lens), 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book

Optional accessories

Laptop, SLR

Quality assurance

ISO9001

Yes

CE

Yes

Third-party detection

Type Approval Certificate of Measuring Instruments issued by Zhejiang Quality and Technical Supervision Bureau


Applications of TI160-P5 Body Temperature Camera

If you need to use the device in the following areas, then our TI160-P5 body temperature camera can be a good choice for you!

  • Clinical Diagnosis

  • Veterinary

  • Medical Research

  • Disease Field

  • Public Area
