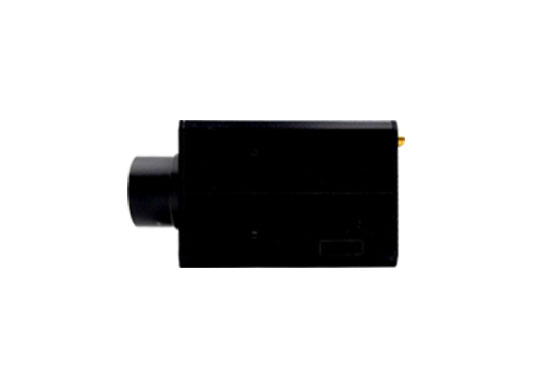

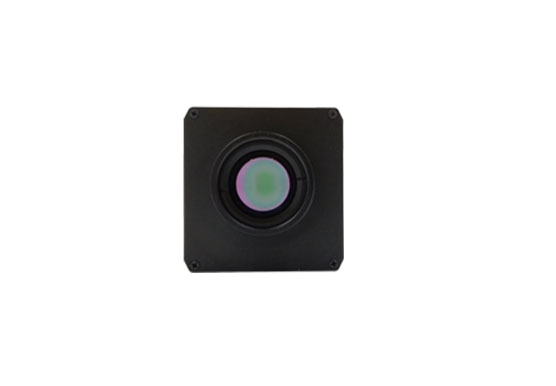

TI35S/TI65S Online Temperature Measurement Thermal Imager Module

Overview of TI35S|TI65S Infrared Camera for Temperature Measurement

With advanced thermal imaging technologies, TI35S|TI65S are one of our most innovative thermal imaging products for online monitoring system. They can work easily for long-distance monitoring for machines, electrical equipment, and flammable materials and so on. This device can detect potential dangers in time, therefore, the production safety is guaranteed.


Features of TI35S|TI65S Infrared Camera for Temperature Measurement

  • 384×288|640×480, 17μm uncooled FPA detector, can be used in different area

  • Multiple motorized lenses, auto-focus is available

  • Auto tracking hot spots and showing temperature values

  • Temperature data transmission up to 100M bandwidth

  • Compact structure, only 500g

  • Support ONVIF protocol


Technical Specifications of TI35S|TI65S Infrared Camera for Temperature Measurement

Item

TI35S

TI65S

Detector Data

Type

Uncooled FPA

IR resolution

384×288

640×480

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

60mK

40mK

Infrared Lens

Lens

Standard 15mm lens

6.2mm optional

Standard 25mm lens

13mm optional

FOV

Standard lens 24°× 18°

Optional lens 55°× 43°

Standard lens 24°× 18°

Optional lens 45°× 35°

Minimum imaging distance

50cm

IFOV

1.13mrad

2.74mrad

0.68mrad

1.3mrad

Focus

Motor, support auto focus

Image Performance

Image enhancement

IVE image enhancement algorithm

Frequency

25Hz

Digital zoom

2X、4X

Color palettes

10 palettes(including iron, rainbow, white hot and black hot etc.)

Measurement

Temperature range

-20℃~+150℃(Up to+600℃)

Temperature accuracy

±2℃/±2%(reading)

Highest temperature tracking

Display the location and value of the highest temperature point

Measurement correction

Auto

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background temperature correction

Auto

Atmospheric transmissivity correction

Auto

Filter or window transmittance

Auto

Setting function

Date/time, temperature unit ℃/℉/K, language

Data Storage

Temperature data

PC standard UTD format, analysis with IRX software

Temperature data flow

Device-side standard HXR format, can be played back with IRX software, with time stamp, adjustable playback speed, freezing, looping, and image processing during playback

Image format

JPG format

Video format

AVI format, H.264 compression

SD card

32G high speed card

Storage control

Serial port command, level trigger or key trigger is optional

Report

Word format, customized format function

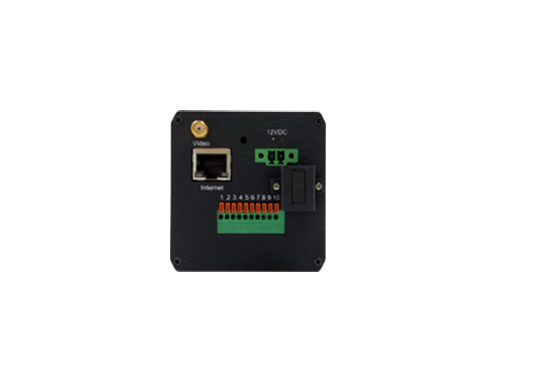

Interfaces

Internet interface

1000M Ethernet, RJ45, temperature data transmission

Power interface

Yes

Video output

SMA

Alarm I/O

YES

API

Support SDK(Win&Linux), ONVIF

Control port

RS232,RS485

Power System

DC supply

DC: 12V

Power consumption

<4.8W

<6W

Environment Parameters

Operation temperature range

-20℃~+50℃

Storage temperature range

-40℃~+70℃

Humidity

≤95%(Non-condense)

EMC

CE/FCC

Vibration

5Hz~200Hz~5Hz 2.5G swept sine

Shock

30G 11ms

Physical Data

Size(L×W×H)

126mm×65mm×67mm

136mm×65mm×67mm

Weight

≤490g

≤500g

Installation interface

UNC 1/4”-20 standard interface, M3 threaded joint

Packing

Standard

Thermal imaging camera, integrated cable, USB flash drive, warranty card, certificate, calibration book, transport case

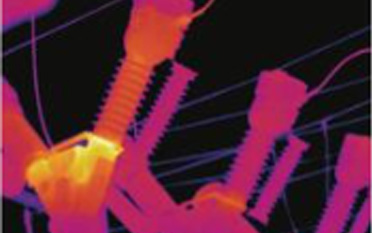

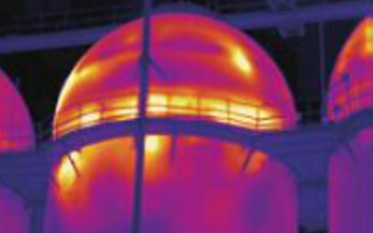

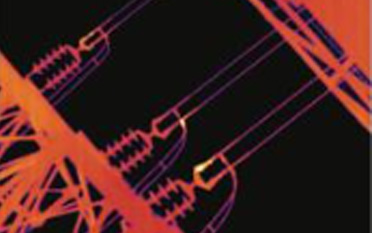

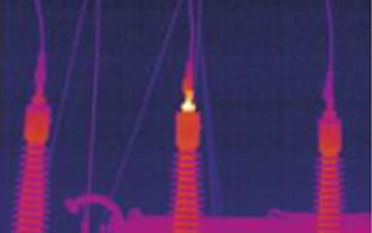

Applications of TI35S|TI65S Infrared Camera for Temperature Measurement

  • Online monitoring system

  • Robot application

  • Automation security
