T2 Pocket Thermal Camera

Overview of T2 Compact Thermal Imaging Camera

ULIRVISION T2 portable thermal camera is a cost-effective pocket thermal camera specially designed for beginners without any professional knowledge. Due to its small size, this portable thermal imager is convenient to carry and use.


T2 handheld thermal camera boots quickly and supports various measurement methods. In various temperature measurement areas such as electric industry, mechanical inspection, etc., you can use this mini thermal imaging camera to finish your work easily.


Features of T2 Handheld Thermal Imaging Device

  • 3.5" screen, auto rotation and easy observation

  • Small size and easy to carry

  • Quick start

  • Various measurement methods: auto track highest & lowest temperature, central point measurement, average temperature measurement

  • 3 button keyboard which is suitable for beginner

  • 50° to view that can help you discover problems quickly

  • USB interface for charging and transmitting data

The T2 handheld thermal imaging device is not only small enough to hold but also an inexpensive thermal camera. Such a low cost thermal imaging camera offers you the best solution for your project!


Technical Specifications of T2 Compact Thermal Imaging Camera

Item

T2

Detector Data

Type

Uncooled FPA

IR resolution

80×60

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

<50mK

Lens Data

FOV

50°× 37.5°

Image Performance

Display

3.5” 480×320

Frequency

9Hz

Focus mode

Fixed

Color palettes

Iron、rainbow and white hot

Measurement

Temperature range

-20℃~+150℃

Measurement accuracy

±2℃/±2%

Emission correction

Adjustable from 0 to 0.95, or selected from list of materials

D:S

15:01

Measurement modes

Spot(center) mode, capture max./min./avg.temperature automatically

Image Storage

Storage capacity

800

Storage format

JPG

Interface

Power interface

Yes

Data transmission

USB3.0 Type-C

Power System

Battery type

Rechargeable Li-ion battery

Operating time

>4h

Charging type

USB

External power

DC: 5V

Environmental Parameters

Operating temperature range

0℃~+45℃

Storage temperature range

-20℃~+55℃

Encapsulation

IP54

Physical Data

Size

125mm×72mm×16mm

Weight

173g

Others

Sensor

Direction sensor

Standard packing

Pocket thermal camera, power adapter, USB Type-C cable, user manual, warranty card, certification

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of T2 Handheld Thermal Imaging Device

The T2 portable thermal imaging camera is a kind of low cost thermal imager, which is widely used in the following areas:

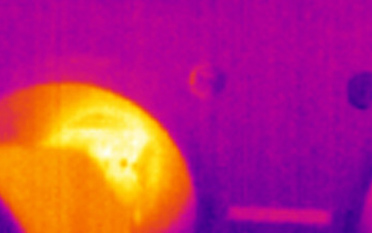

  • Architectural problems

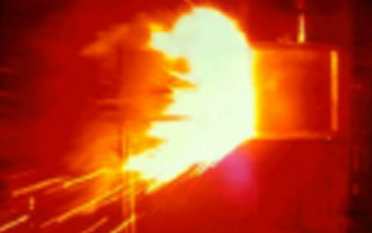

  • Electronic industry, mechanical inspection

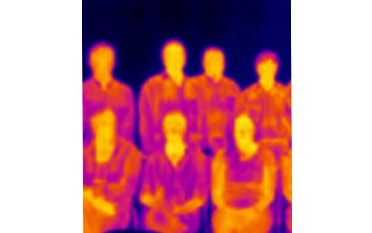

  • Researching system

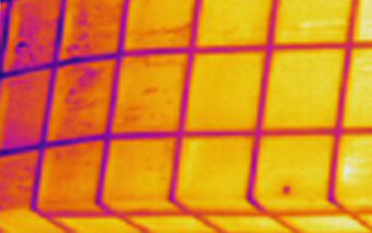

  • Automation application system
