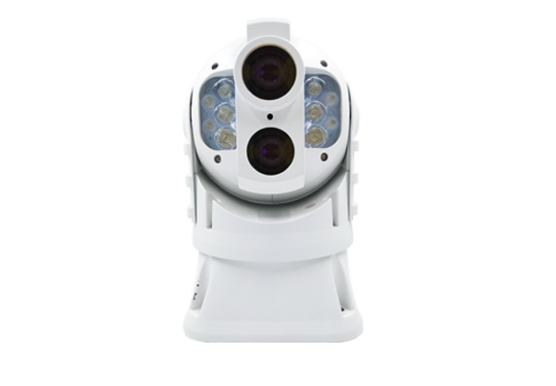

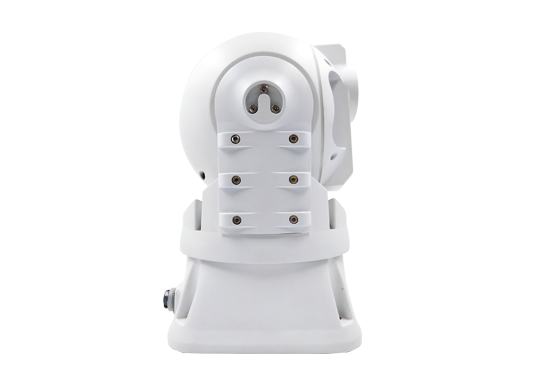

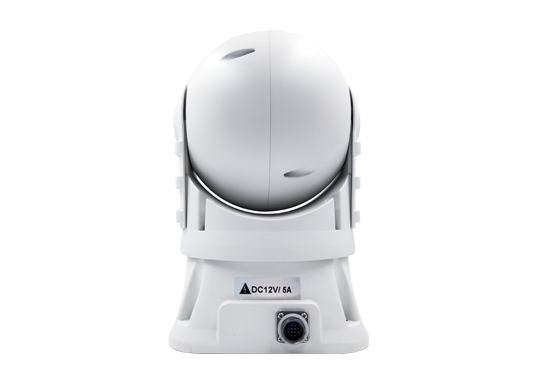

TI400PTZ Online Monitoring Thermal Imaging Pan&Tilt

Overview of TI400 Thermal PTZ Camera

TI400PTZ pan tilt surveillance camera is made of aluminum alloy material, which is strong and sealed. The body is very light, with a built-in high-performance uncooled infrared thermal imager, the device can produce clear infrared images and display real-time temperature even without any light. It can achieve real-time monitoring of important electric power, mechanical operation parts and inflammable materials, which can be your greater helper.


Features of TI400 Thermal PTZ Camera

  • Visible light and infrared light

  • Multiple presets for long-term precision operation

  • Full working environment design,

  • Anti-shock, anti-corrosion, dustproof and water proof, IP66

  • Integrated design, compact and reliable



Technical Specifications of TI400 Thermal PTZ Camera

Item

TI400PTZ

Detector Data

Type

Uncooled FPA

IR resolution

384×288

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

65mK

Lens Data

FOV

24°×18°

Minimum imaging distance

30cm

IFOV

1.3mrad

Focus

Auto/Manual

Lens(optional)

6.5mm、15mm、25mm motorized lens

Measurement

Temperature range

-20℃~+250℃(Scalable to 650℃)

Measurement accuracy

±2℃/±2%(Reading range), take the maximum

Temperature measurement mode

Point temperature measurement, area temperature measurement, highest value

Measurement correction

Auto/Manual

CCD Video Camera

Resolution

1920×1080

Signal system

PAL/NTSC

Sensor type

1/2.8‘’ Progressive Scan Cmos

Zoom

20X optics, 12X digital

Minimum illumination

0.05Lux

SNR

50dB

Electronic image stabilization

ON/Off

Focal distance

F4.7-94mm

Pan & Tilt

Horizontal range

0°~360°

Horizontal speed

0.04°~80°/s

Vertical range

-20°~90°

Vertical speed

0.05°~60°/s

Presetting amount

255

Repositioning accuracy

±0.05°

Interface

Video output

Thermal image analog video, network video

Control

RS485

Address range

0~255

Protocol

PELCO-P/PELCO-D auto recognition

Baud rate

2400-4800-9600bps auto recognition

Network

Type

1000Mbps

Network protocol

IEEE802.3

Connector interface

RJ-45

Communication protocol

IEC60807-5-104、IEC61850

Power System

Working voltage

DC:+12V

Power consumption

<50W

Environment Parameters

Operating temperature range

-25℃~+50℃

Storage temperature range

-40℃~+70℃

Encapsulation

IP66

Vibration protection

Horizontal 9G, vertical15G

Wind protection

180km/h

Physical Data

Size

φ199mm×300mm

Weight

7kg

Packing

Standard

Thermal Imaging Pan&Tilt, operating instructions, warranty card, packing box

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.

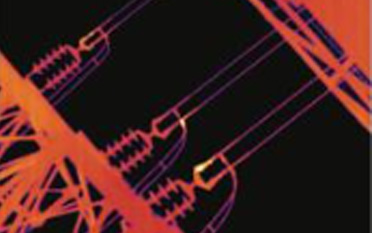

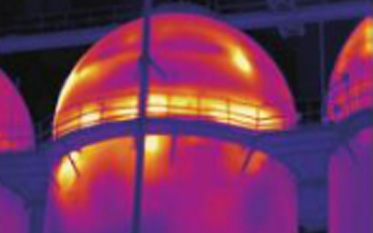

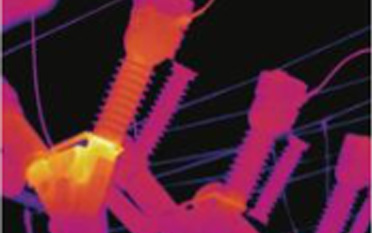

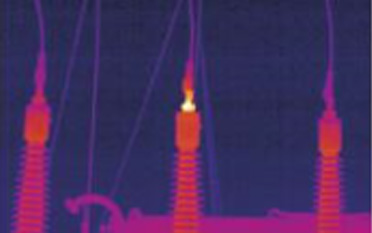

Applications of TI400 Thermal PTZ Camera

  • Quickly recall preset positions

  • Digital anti-shake image

  • Analyze the temperature at any point

  • Long time stable operation, low false alarm rate
