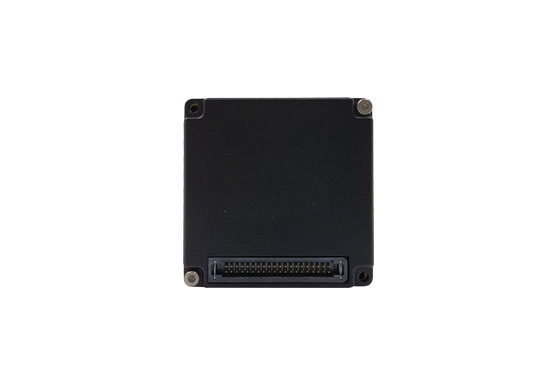

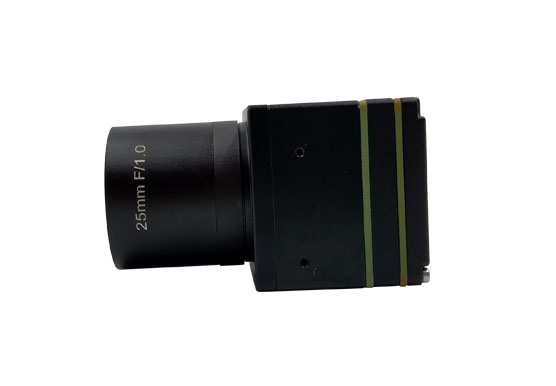

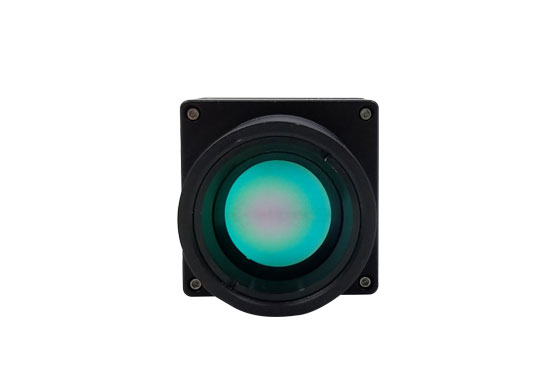

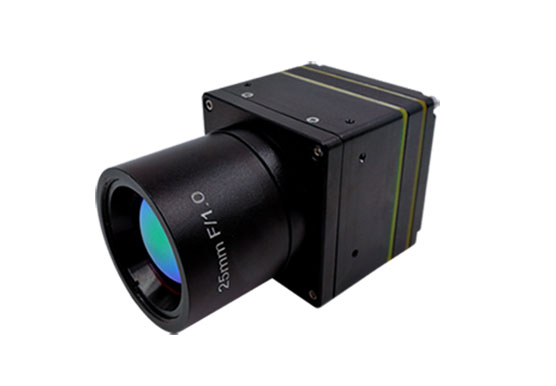

TC388G/TC688G Thermal Imaging Cores

Overview of TC388G/TC688GThermal Imaging Core

TC388G|TC688G is the thermal imaging camera core with an advanced reliable shutter, it can provide stable and high-quality thermal images and videos. It can be easily integrated into security and surveillance systems. This thermal core is specially designed for hardware manufacturers and system integration developers, which is no doubt your best choice.


Equipped with a high-performance aSi detector, TC388G|TC688G has a rapid development of performance. Part of the outstanding features are as follows:

  • A variety of motorized lenses can be selected;

  • A variety of communication protocols can be supported;

  • IVE image algorithm can be used to enhance and output high-quality infrared thermal images.

Features of TC388G/TC688G Thermacore

  • Suitable for customer secondary development integration

  • Develop customized requirements to meet different requirement

  • High reliability & stability


Technical Specifications of TC388G/TC688G Thermacore

Item

TC388G

TC688G

Detector Data

Material

aSi

IR resolution

384×288

640×480

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

≤70mK

≤60mK

Lens Data

Lens(optional)

35mm、50mm、75mm athermal lens, 100mm、150mm motorized lens, 25~100mm、30~150mm、25~225mm continuous zoom lens、60/150mm dual FOV lens(other lens are optional)

Image Performance

Image enhancement

IVE image enhancement algorithm

Frequency

50Hz

Amplification

2X, 4X

Polarity/LUT mode

Black hot/White hot

Startup time

3s

Image gain

Auto/Manual

Focusing

Motor

Cross cursor

ON/OFF

Image frozen

Yes

Interface

Primary electrical connector

40pin

Control

RS232

Analog video output

PAL

Digital video output

Cameralink、LVCMOS optional

Keypad

4 button keyboard

Power System

Working voltage

DC: +4V~+5.5V(Standard: 5V)

Power consumption

1.5W

1.25W

Reverse polarity protection

Yes

Over&Under voltage protection

Yes

Environment Parameters

Operating temperature range

-40℃~+60℃

Storage temperature range

-50℃~+70℃

Humidity

5%~95%(non-condense)

Shock

GJB150-16 2.3.1, 100g; 6msec

Vibration

GJB150-16 2.3.1, 4.3g 3 axes, 8h

Physical Data

Size

44.5mm×44.5mm×39.5mm

Weight

≤103g(without lens)

≤100g(without lens)

Mounting

4 x  M2×0.4,  1/4” -20

Packing

Standard

Thermal imaging core, interface cable, user manual of CD, warranty card, calibration certificate

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of TC388G/TC688G Thermacore

  • Surveillance systems

  • Thermal image pan & tilt

  • Remote control system

  • Vehicle and shipborne monitoring systems
