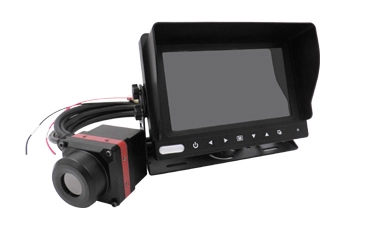

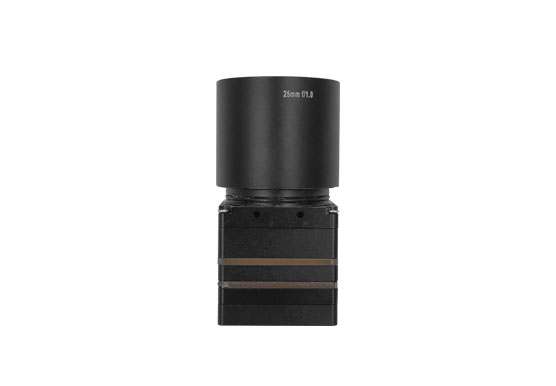

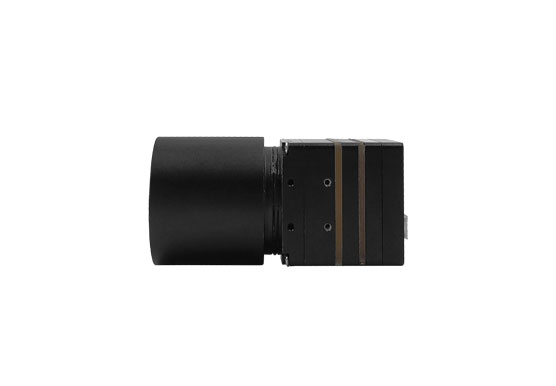

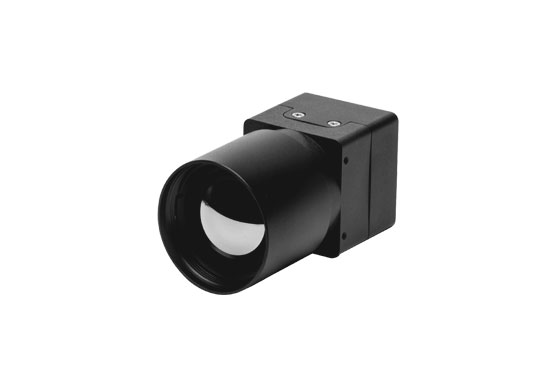

TC490|TC790G is the latest generation of shutterless thermal imaging camera cores. The major features of this core are the smallest size, lightest weight, ultimate IR resolution, and lowest power consumption. They can be used in any integrations that have corresponding requirements. Don’t miss it.
Subminiature design, the weight is only 35g
Ultra-low power design, the power consumption is less than0.75W/1.0W
Shutterless NUC technologies to ensure image quality
Intelligent View Enhancement(IVE)technology and intelligent dimming algorithm
Isolated metal frame for radiating, component thermal characteristics are stable
Item | TC490 | TC790G |
Detector Data | ||
Material | Uncooled Microbolometer Detector | |
IR resolution | 384×288 | 640×480 |
Pixel pitch | 17μm | |
Spectral range | 7.5～14μm | |
NETD/Sensitivity | ≤60mK | ≤50mK |
Lens Data | ||
Lens(optional) | 9mm/13mm/19mm/25mm/35mm athermal lens | |
Image Performance | ||
NUC | Shutterless technology | |
Image enhancement | IVE image enhancement algorithm | |
Frequency | 50Hz | |
Amplification | 2X, 4X | |
Polarity/LUT mode | Black hot/White hot | |
Startup time | 3s | |
Image gain | Auto/Manual | |
Cross cursor | ON/OFF | |
Interface | ||
Primary electrical connector | 40pin | |
Control | RS232 | |
Analog video output | PAL | |
Digital video output | Cameralink、LVCMOS、 8-Bit BT656 | |
Keypad | 5 button keyboard | |
Power System | ||
Working voltage | DC: +2.5V～+5.5V(standard: 3.7V) | |
Power consumption | 0.75W | 1W |
Reverse polarity protection | Yes | |
Over&Under voltage protection | Yes | |
Environment Parameters | ||
Operating temperature range | -40℃～+60℃ | |
Storage temperature range | -50℃～+70℃ | |
Humidity | 5%～95%(non-condense) | |
Shock | GJB150-16 2.3.1, 100g; 6msec | |
Vibration | GJB150-16 2.3.1, 4.3g，3 axes, 8h | |
Physical Data | ||
Size | 28mm×28mm×21mm（From FPA to back） | |
Weight | ≤35g(without lens) | |
Mounting | M2×0.4 | |
Packing | ||
Standard | Thermal imaging core, interface cable, user manual of CD, warranty card, calibration certificate | |
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. | ||

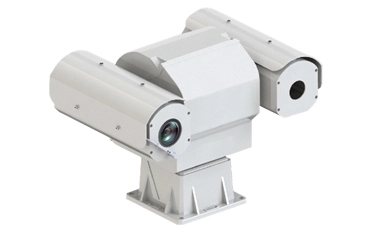

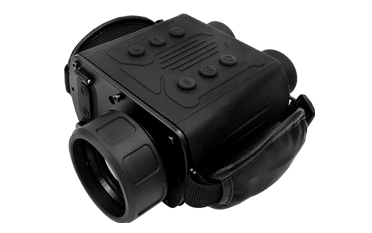

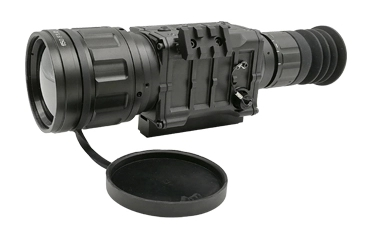

Thermal imaging integration (helmet, telescope, weapon sight, etc.)
Electro-optical system for UAV & aircraft
