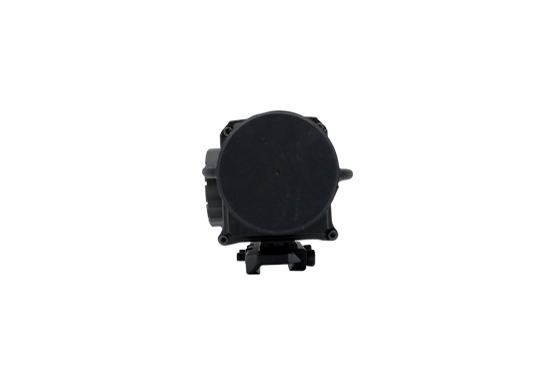

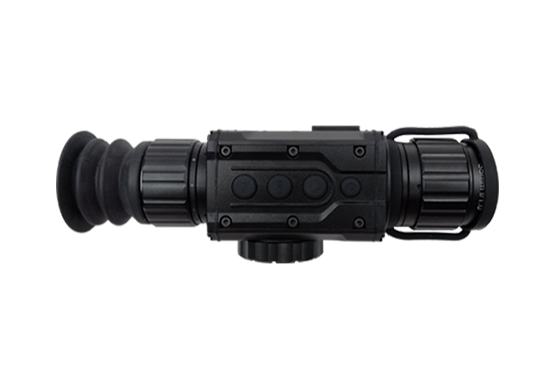

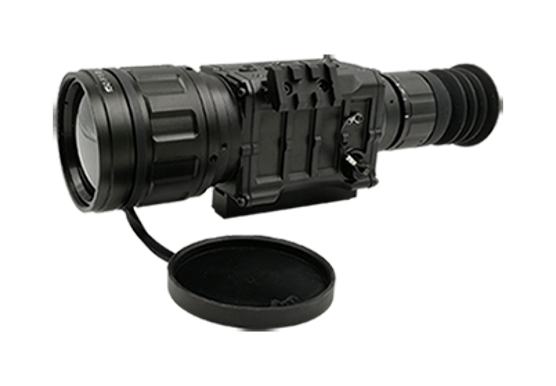

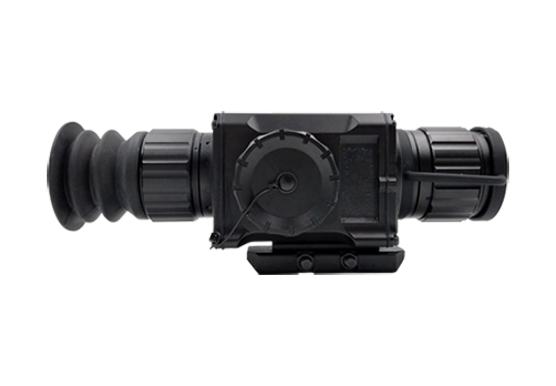

Eagle30 Thermal Imaging Sight

Overview of Eagle30 Portable Night Vision Camera

Eagle30 is a thermal weapon sight, and it is widely used for law enforcement. It is capable of detecting heat of targets against cooler background during day and night. Even in severe conditions such as total darkness, haze, dust, sleet, forest, grass, disguise and so on, it can work smoothly.


Features of Eagle30 Thermal Night Camera

  • Pixel pitch 17μm, NETD≤70mK

  • 50Hz instant imaging, 3s start-up, time-saving

  • Multiple lenses for option: 35mm, 50mm and 75mm

  • AMOLED SVGA 800×600

  • Polarity control(black hot/white hot)


Technical Specifications of Eagle30 Portable Night Vision Camera

Item

Eagle 30

Detector Data

Type

Uncooled FPA

Material

aSi

IR resolution

384×288

Pixel pitch

17μm

Spectral range

8~14μm

NETD/Sensitivity

≤70mK

Lens Data

FOV/Focal distance

10.6°×8.0°/35mm

7.5°×5.5°/50mm

5.0°×3.75°/75mm

Recognition distance(Vehicle)

950m

1200m

1600m

Recognition distance(Human)

320m

420m

600m

F

F 1.0

Eye relief

50mm

Diopter

-5~+5

Image Performance

Display

800×600 OLED

Frequency

50Hz

Zoom

2X

Polarity/LUT mode

Black hot/White hot

Reticle color

White/Black/Red/Green(optional)

Reticle type

5 reticle types(customizable)

Startup time

3s

Contrast/Brightness

Auto/Manual

Interfaces

Format

Waterproof aviation plug

Picatinny rail

MIL-STD 1913

Video output

PAL

Power System

Battery type

2pcs CR123A battery

Operating time

≥4hour

Environment Parameters

Operating temperature range

-30℃~+60℃

Storage temperature range

-40℃~+70℃

Encapsulation

IP67

Vibration

MIL-STD-810F

Shock

MIL-STD-810F

Physical Data

Size(without eyepiece)

156mm×61mm×66mm(with 35mm lens)

186mm×70mm×70mm(with 50mm lens)

210mm×86mm×86mm(with 75mm lens)

Weight(with battery)

560g(with 35mm lens)

720g(with 50mm lens)

880g(with 75mm lens)

Packing

Standard

Thermal imaging sight, 4pcs CR123A batteries, Picatinny rail, Picatinny quick release interface, Composite output cable, Warranty card, User manual, Certificate, Transport case

Option

5V power adapter

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of Eagle30 Thermal Night Camera

  • Law enforcement

  • Targeting systems

  • Defense systems
