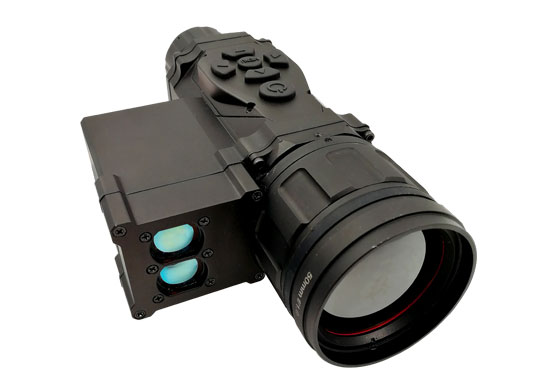

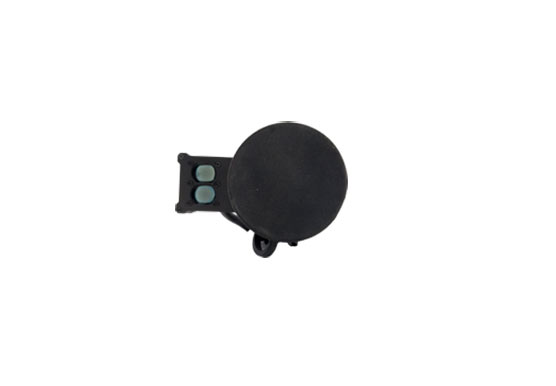

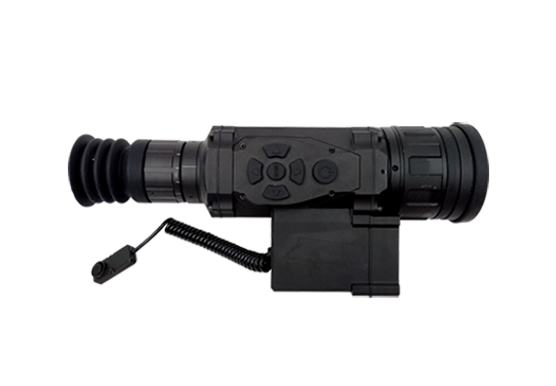

Eagle30CC Thermal Imaging Sight

Overview


Eagle30CC can be used not only as a gun sight, but also as a one handed telescope. High performance and high precision laser rangefinder, AMOLED1024X768 high resolution eyepiece and PIP function of the screen help you find more details of your target. And also don’t forget the features of quick start, ready to use and flexible.


Features


  • Integrated high performance 600 meter effective laser rangefinder

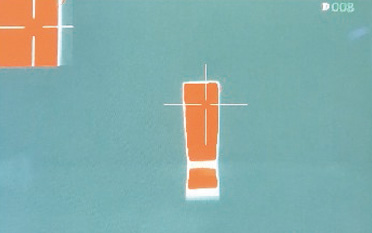

  • In different scenes, a variety of aiming reticles are optional

  • Built-in long-term lithium battery

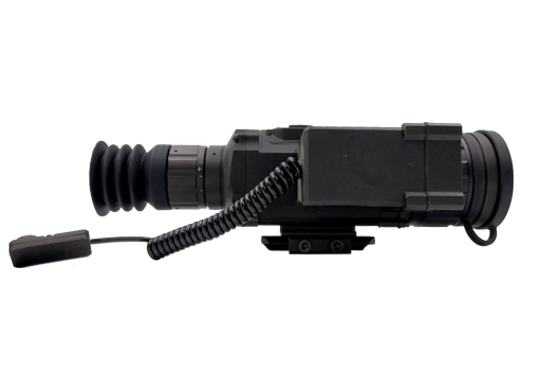

  • Quick Disassembly of Picatinny Rails


Technical Specifications


Item

Eagle30CC

Detector Data

Type

Uncooled FPA

Material

aSi

IR resolution

384×288

Pixel pitch

17μm

Spectral range

8~14μm

NETD/Sensitivity

≤70mK

Lens Data

FOV

10.6°×8.0°

7.5°×5.5°

Focal distance

35mm

50mm

Recognition distance(Vehicle)

950m

1200m

Recognition distance(Human)

320m

420m

F.no

1

Distance of exit pupil

48mm

Diopter

-5~+5

Image Performance

Display

1024×768  OLED

Frequency

50Hz

Amplification

2×, 4×

Polarity/LUT mode

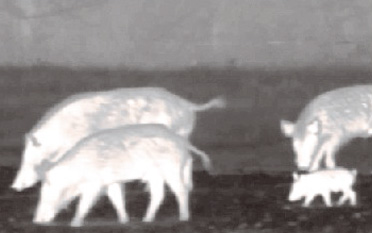

Black hot/White hot/Red hot

PIP

Yes

Reticle color

White/Black with reverse

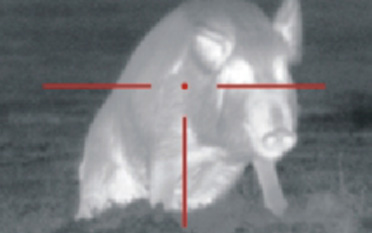

Reticle type

5 reticle types(customizable)

Startup time

3s

Contrast/Brightness

Auto/Manual

Laser Ranging

Wavelength

905nm

Ranging distance

600m

Ranging accuracy

±2m

Interface

Format

Waterproof aviation plug(with power,video,RS232)

Video output

PAL

Picatinny rail

MIL-STD 1913 Picatinny Rail

Power System

Battery type

Non-removable, rechargeable lithium battery

Operating time

>5h continuous

Environment Parameters

Operating temperature range

-20℃~+50℃(-30℃~+60℃ ,optional)

Storage temperature range

-40℃~+70℃

Encapsulation

IP66

Shock&vibration

MIL-STD-810F

Physical Data

Size(without eyepiece)

200mm×115mm×78mm(with 35mm lens)

220mm×115mm×78mm(with 50mm lens)

Weight(with battery)

900g(with 35mm lens)

1000g(with 50mm lens)

Packing

Standard

Thermal imaging sights, Combination cables, Picatinny rail, Warranty card, User manual, Certificate, Transport case

Option

DC 5V power adapter

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications


  • Law enforcement

  • Targeting systems

  • Defense systems
