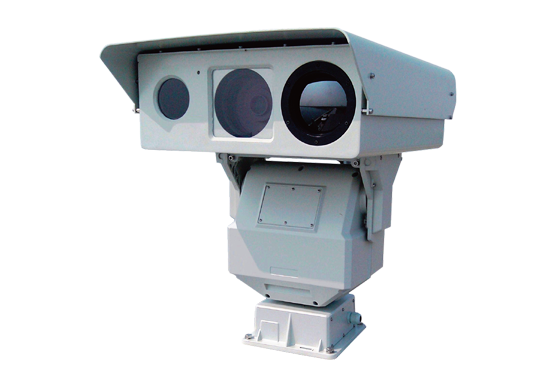

TC800PTZ Heavy-Duty Dual-Spectrum Pan/Tilt

Overview


TC800PTZ infrared thermal imaging camera is composed of large-caliber continuous zoom infrared thermal imaging camera, full HD color B&W dual-mode low-illumination visible light camera, 360° omni-directional high-precision pan&tilt and fully sealed anti-corrosion shield, laser lighting or laser ranging, Beidou/GPS and electronic multi-disk module can be selected as required; It is a camera specially designed and developed for the field of remote day and night monitoring. It can detect and alarm fire sources within 6KM to ensure the safety of life and property. It is suitable for remote monitoring in scenes such as border and coastal defense bases.


Features


  • The thermal image detector is based on the new generation MEMS technology, NETD≤50 mk, the picture quality is more delicate, and it is less affected by fog, rain and snow weather

  • Support hot spot detection and alarm, based on front-end raw data algorithm

  • Can expand laser ranging or laser lighting, Beidou/GPS, electronic compass and other sensors

  • Adopt high-definition network camera and large zoom lens, with fog penetration function and various user-defined automatic configuration modes to meet various scene detection requirements

  • Unique AS + DOE advanced optical continuous zoom design and 3CAM high-precision optical-mechanical design make zoom smooth and stable, which is conducive to large-scale search and long-distance identification;

  • SDE image detail enhancement technology, the image is smooth and noise-free, a variety of pseudo-color and hot black, hot white polarity image mode switching, strong adaptability, easy to find low contrast hidden targets


Technical Specifications

Item

TC800PTZ

Detector Data

Detector type

VOx Uncooled FPA

IR resolution

640×512

Pixel pitch

17μm

Spectral range

8 ~14μm

NETD/Sensitivity

≤50mK

Infrared lens

Lens type

Continuous zoom

Focal distance

31mm~155mm

FOV

Wide FPV: 20°×15°

Narrow FOV: 4°×3°

Focusing

Electric zoom manual/automatic focusing, adaptive active focusing algorithm, supporting multiple trigger modes, accurate and high speed

High infrared transmittance, no virtual focus in zoom process, small axis

Detect people/vehicles/fire sources

4.8KM/13KM/6KM(fire source target2X2m)

Identify people/vehicles

1.3KM/3.4KM

Infrared imaging performance

Image enhancement

Second generation SDE digital image enhancement algorithm, improving image details, NUC correction: automatic/manual correction, background correction

Image parameters

AGC automatic gain control, brightness, contrast

Frequency

50Hz

Electronic Zoom

2X, 4X, supports global synchronous display

Polarity/LUT mode

black hot/white hot 16 kinds of pseudo-color images

Contrast/Brightness

Automatic/Manual

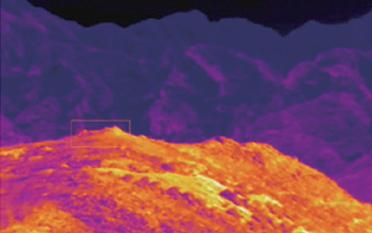

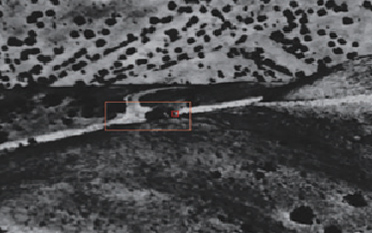

Thermal imaging spot detection alarm

Alarm threshold

Level 255 can be set

Target Size

The range can be set to automatically identify targets of different sizes

Number of Alarm Targets

1-16 settable to automatically select the most prominent target display

Alarm mode

Video overlay alarm box + switch value (or data return) multiple alarm modes, the alarm is intuitive and easy to read

Front-end algorithm

Optimized front-end fast processing algorithm, based on the analysis of each frame of the original heat map data, the alarm response is 0.1s, and there is no delay and no information loss

Remote parameter adjustment

All alarm parameters and indications can be remotely set through the video OSD menu, which has strong universality

Special platform

Special warning platform software can be selected to realize various requirements and functions

CCD Video Camera

Resolution

1920×1080 200W pixels

CCD type

1/1.8” target starlight v, integrated ICR dual filter day and night switching

Lens Data

12.5 ~ 770mm, HD electric zoom, (multiple focal lengths available)

With optical infrared correction design, the focus is consistent day and night

FOV

0.44°~ 23.12° (wide angle ~ telescopic)

Illuminance

Color: 0.001 Lux; B&W: 0.0001Lux

Coding

H.265/H.264/MPEG4/MIPEG video format with multi-stream support

Video bit rate

32Kbps~16Mbps, 60Hz 30 frames/second

Performance

Support SD card local storage, support movement detection, occlusion alarm, cross-border detection, area intrusion detection

Support AFR fog penetration, electronic anti-shake, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposure, ABF automatic back focus adjustment function

Pan & Tilt

Angle back function

PELCO-D support

Pan angle

0°~ 360°  accuracy: ±0.1°

Tilt angle

-45°~ +45°

Pan speed

0.01°~ 30° /s  supports lens focal length adaptation

Tilt speed

0.01°~ 15° /s supports lens focal length adaptation

Interface

Format

Aviation interface

Network interface

1 RJ45 10M/100M Adaptive Ethernet Port

Communication Interface

RS485

Power System

Working voltage

AC: 24V±10%

Power consumption

≤120W(normal)

≤180W(heated)

Environment Parameters

Operating temperature range

-25℃~+65℃(-40℃ optional)  humidity<90%

Storage temperature

-45℃~+70℃

Encapsulation

IP66 (IP67 optional)

Lightning surge protection

Power supply 4000V, communication video signal 2000V

Earthquake resistance

0.2g (in accordance with GB/T15211-2013 5.4 Hardness Class 2)

Impact resistance

15g (in accordance with GB/T15211-2013 5.3 Hardness Class 3)

Anti-salt fog

When the PH value is 6.5 ~ 7.2, the surface does not change after continuous spraying for 48 hours

Physical data

Size

590mm(L)×485mm(W)×600mm(H)

Weight

≤50kg

Packing

Standard

Thermal imaging camera, user manual, warranty card, packing box

Option

Laser ranging or laser lighting, GPS/Beidou, electronic compass, special software

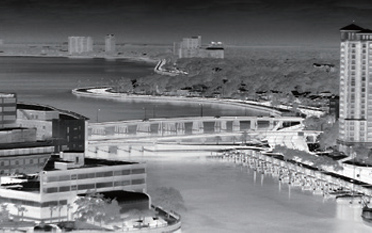

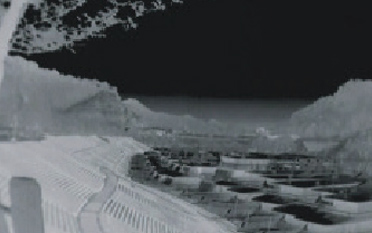

Applications

  • Border security, shore security, city high point

  • Port wharf, offshore base

  • Forest fire prevention, oil field, oil depot security, iron tower
