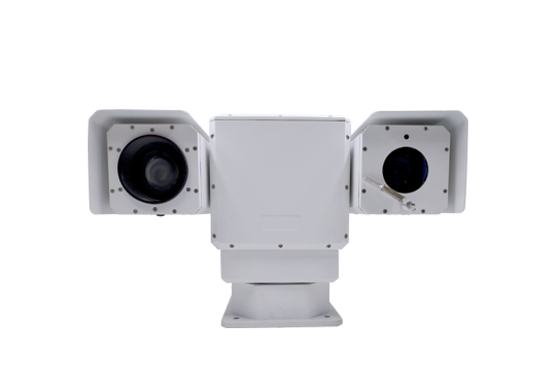

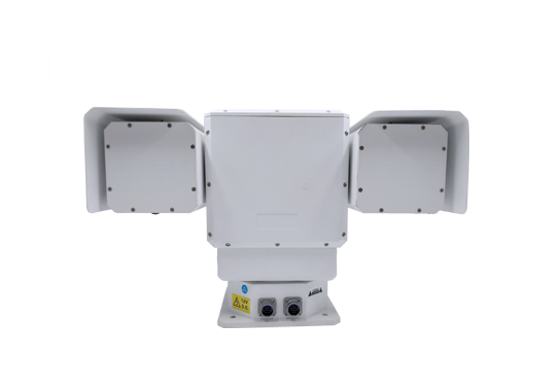

TC400PTZ|TC600PTZ The series of high-performance, multi-sensor pan/tilt cameras bring dual-channel with thermal and visible-light imaging together. Their precision pan/tilt mechanism gives you accurate pointing control while providing sharp image and video for critical facilities.
Dual-channel: thermal and visible-light camera
Multiple lenses for option
Support Onvif protocol
Support Pelco-D protocol
High precision 360° pan/tilt
Item | TC400PTZ | TC600PTZ | |||
Detector Data | |||||
Detector type | aSi Uncooled FPA | ||||
IR resolution | 384×288 | 640×480 | |||
Pixel pitch | 17μm | ||||
Spectral range | 8～14μm | ||||
NETD/Sensitivity | ≤70mK | ≤60mK | |||
Lens Data | |||||
Focal distance | 50mm | 75mm | 100mm | ||
FOV(384×288) | 7.5°x5.5° | 5°x3.75° | 3.75°x2.75° | ||
FOV(640×512) | 12.4°x9.3° | 8.3°x6.5° | 6.3°x4.5° | ||
Focus mode | Electric/Auto | ||||
Recognition distance(Vehicle) | 1200m | 1600m | 2100m | ||
Recognition distance(Human) | 420m | 600m | 820m | ||
Image Performance | |||||
Polarity/LUT mode | Black hot/White hot | ||||
Image enhancement | IVE image enhancement algorithm | ||||
Frequency | 50Hz | ||||
Mirroring | Horizontal/Vertical/Horizontal+Vertical | ||||
Contrast/Brightness | Adjustable | ||||
Visible Light Camera | |||||
Sensor | 1/2.8" Progressive Scan CMOS | ||||
Resolution | 1920(H) ×1080(V) | ||||
Lens Data | 4.5-135mm,30X optical zoom | ||||
HFOV | 65.1-2.34°(Wide-Narrow) | ||||
Aperture | F1.6-F4.4 | ||||
Minimum illumination | Color: 0.05Lux @ (F1.6, AGC ON) | ||||
B&W: 0.01Lux @ (F1.6, AGC ON) | |||||
Day-and-night switch | ICR Filter | ||||
Focusing | Auto Focus / One Focus / Manual Focus | ||||
Pan & Tilt Performance | |||||
Rotating angle | Pan: 0°~360°(Continuous rotation); Tilt: +90°~-90° | ||||
Rotating speed | Pan: 0.01°~60°/S; Tilt: 0.01°~30°/S | ||||
Presetting amount | 200 | ||||
Cruise scanning | Support | ||||
Scan mode | Cruise scanning/Auto scanning | ||||
Real-time angle return | Support real-time angle return or query angle return function | ||||
Network Features | |||||
Network protocol | IPv4/v6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、SIP | ||||
Storage communication protocol | CIFS、NFS | ||||
Networktransmission control | Embedded network bandwidth self-adaptive flow control technology | ||||
WEB management | Embedded Web service, which can be viewed and configured through the IE explorer | ||||
Remote upgrade and maintenance | Support | ||||
Integration feature | In support of ONVIF/Third-party protocol | ||||
Interface | |||||
Control | RS485 | ||||
Control protocol | Pelco-D | ||||
Baud rate | 2400/4800/9600/19200bps | ||||
Network interface | RJ-45, 10/100Base-T | ||||
Power System | |||||
Working voltage | AC: 24V(±20%), 50/60HZ | ||||
Power consumption | ≤100W | ||||
Environment Parameters | |||||
Operating temperature range | -25℃~+60℃(Wide temperature range with optional heating and fan) | ||||
Humidity | RH90% MAX(non-condense) | ||||
Encapsulation | IP66 | ||||
Physical Data | |||||
Size | 282mm (L)x 419mm(W)x 316mm | ||||
Weight | ≤15Kg | ||||
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. | |||||
Government: military bases, maritime, country borders, law enforcement
Infrastructures: power grid, nuclear power, mining, oil & gas facilities, chemical facilities, water utilities
Transportation: waterways, airports, roads and highways, railroads
