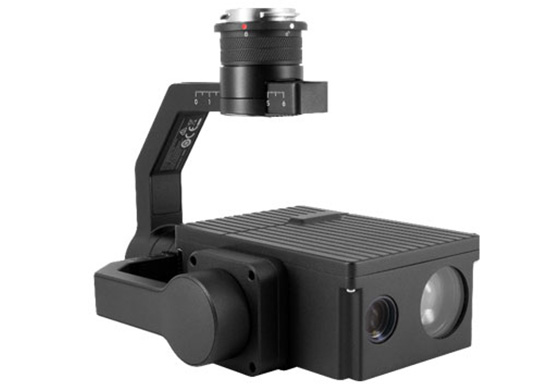

Airborne UV Imaging Camera TD20U

Overview of Airborne UV Imaging Camera TD20U

The TD20U Airborne UV Imaging Camera is equipped with solar-blind, high-sensitivity UV camera and HD visible light camera, which can accurately overlay the whole area, accurately locate the discharge position, and has strong anti-interference ability. It is completely free from the influence of sunlight and is able to work all day. It has a wide field of view, with compact and light size. Combined with UAV inspection, close-range monitoring can be achieved to detect small defects and faults, providing effective help for preventive inspections of substations and high-voltage transmission lines.


Features of Airborne UV Imaging Camera TD20U

  • High sensitivity up to 3.0×10-18watt/cm2

  • Noise interference is small, using solar-blind detector

  • Accurate superposition and positioning of the whole area of ultraviolet and visible light

  • Wide field of view, 18°×13.5°

  • Synchronous focusing of ultraviolet and visible light

  • Small size, light weight, easy to operate

Technical Specifications of Airborne UV Imaging Camera TD20U

Item

TD20U

UV-Optical properties

Minimum UV sensitivity

3.0×10-18watt/cm2

Minimum discharge detection

1.0pC@10m

Spectral range

240~280nm

FOV

18°×13.5°

Amplification

1-4X Continuous zoom

Focus range

3m~∞

Detector life span

No degradation

Visible light optical properties

Minimum visible light sensitivity

0.1Lux

Resolution

1080P, 1920×1080

Focus

Auto/manual

Focus range

1m~∞

Amplification

10X optical zoom, 4X digital zoom

Pan & Tilt

PTZ Controllable rotation range

Tilt:+30°to -120°, yaw: ±320

Control accuracy

<0.15°

Protection level

IP44(Pan & Tilt)

Size

128×140×145mm

Image Performance

Mode

Display UV images only/Display visible light images only/Combination of visible light and UV light

Overlay precision

≤1mrad

UV imaging angular resolution

≤5mrad

Corona color

White, red, green, yellow, purple

Image storage

Image resolution

960×720

Image format

JPEG

Video format

AVI

Media download

USB(external)

Storage

Maximum 16G

Communication

Communication protocol

TD20U-Protocol, MAVlink, S. BUS(bus)

Interface

Communication Interface

DJI SkyPort V2

USB

Type-C

Power System

Power input

DC: 13.6V(DJI X-Port)

Power consumption

8W

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-25℃~+60℃

Humidity

90%(non-condensing)

Protection level

IP42

Physical data

Size

112mm×80mm×55mm

Weight

≤410g

Suitable model

DJI M200, M300


Applications of Airborne UV Imaging Camera TD20U

  • Power industry

  • Electrified railway

  • Research institutions

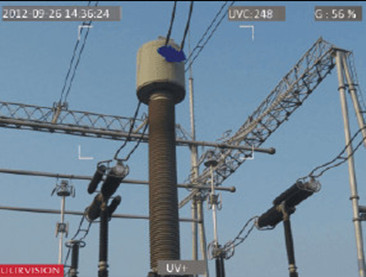

td20u 1
td20u 1

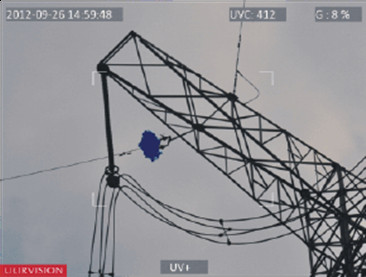

td20u 2
td20u 2

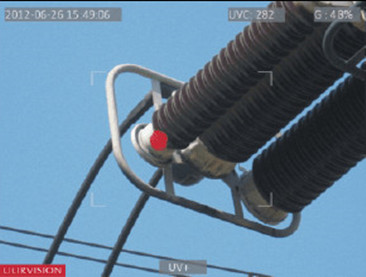

td20u 3
td20u 3

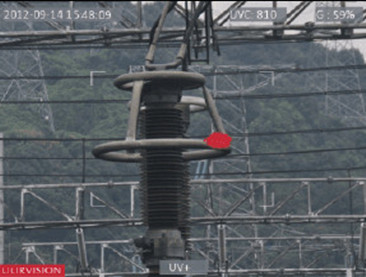

td20u 4
