T50/T70 Thermal Imaging Camera

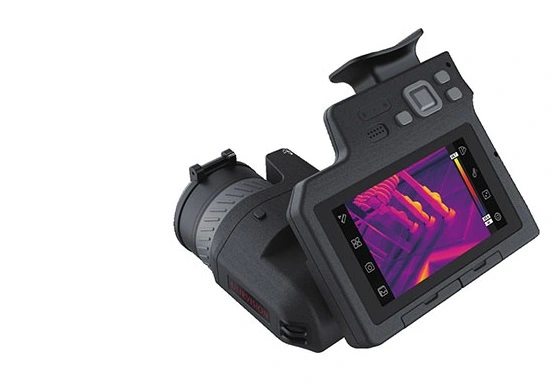

Overview of T50/T70 Thermal Imaging Camera

 T50|T70 is the latest expert-level thermal imaging camera of ULIRVISION. The product adopts a 384×288|640×480 high-pixel aSi microthermal detector, manual & auto-integrated lens, 180° rotation, laser-assisted focusing, excellent imaging quality, and meets the strict requirements of industrial market for a high-end thermal camera.














Features of T50/T70 Thermal Imaging Camera

  • 384×288|640×480 Uncooled detector

  • Continuous auto-focusing | laser-assisted focusing

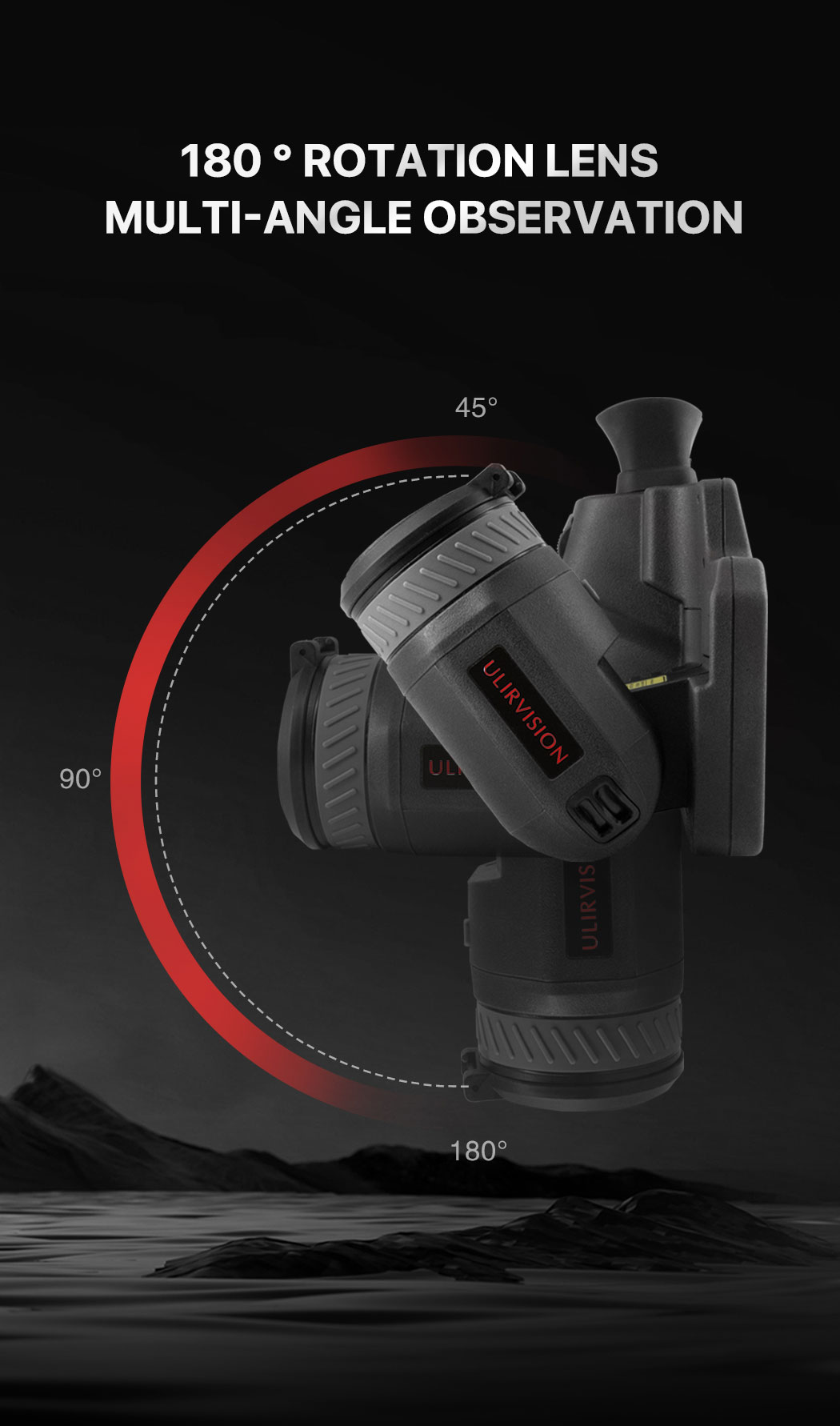

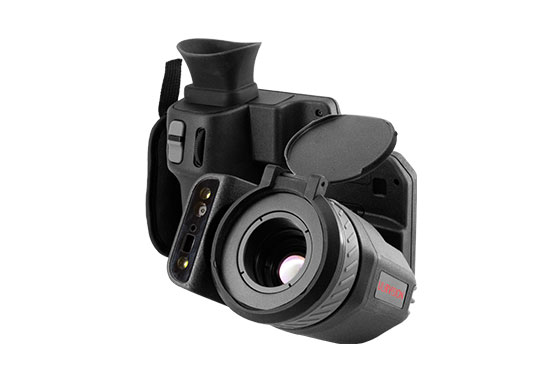

  • Automatic lens recognition, 180 ° rotation

  • Infrared | Visible Light | PIP | DSX, multiple image modes

  • Multiple measure modes: high and low temp auto tracking, line temp measure, isothermal analysis, area temp measure

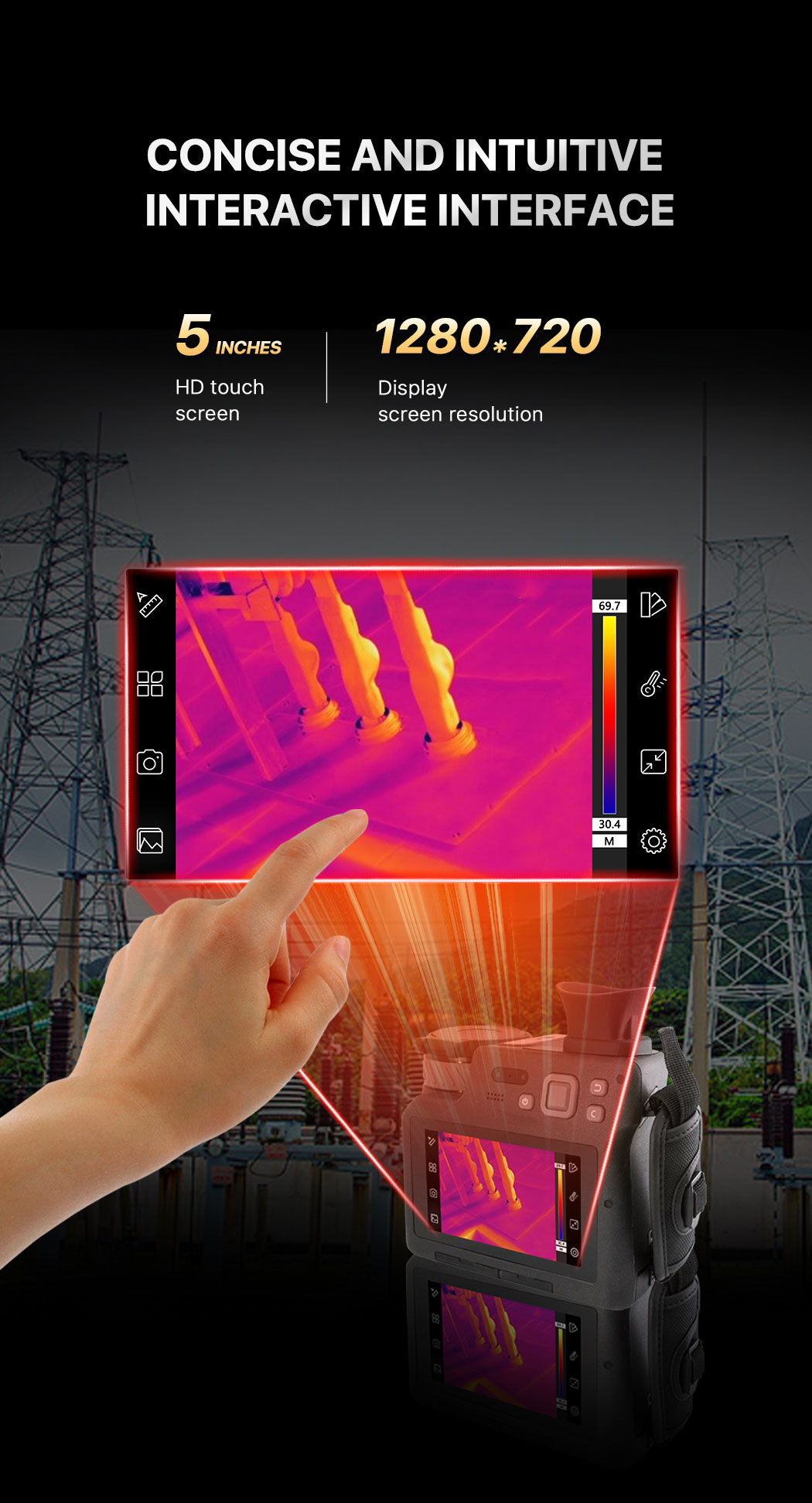

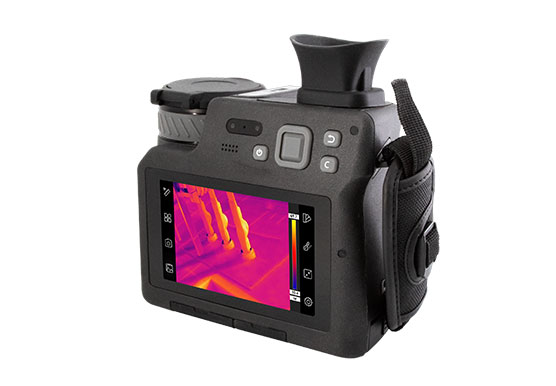

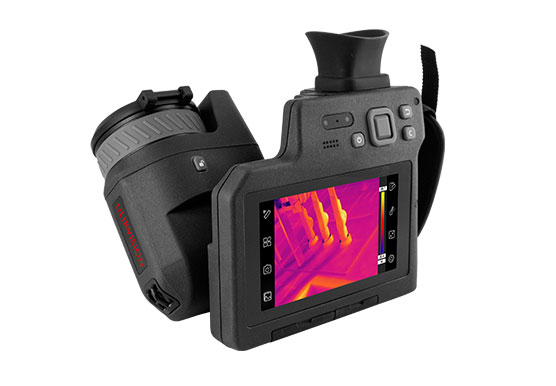

  • 5" Touch screen, HD viewfinder, clearly visible in the sun

  • GPS, compass azimuth information is saved with the image

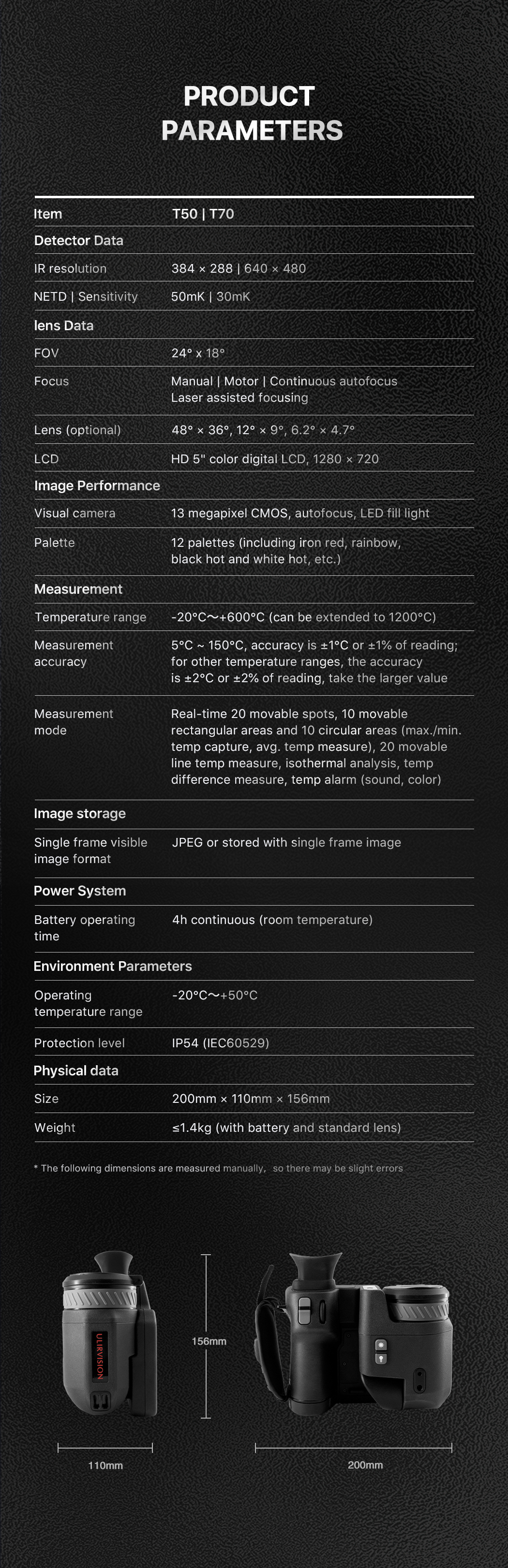

Technical Specifications of T50/T70 Thermal Imaging Camera

Item

T50

T70

Detector Data

Type

Uncooled FPA

IR resolution

384×288

640×480

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

50mK

30mK

Lens Data

FOV

24°×18°

Minimum imaging distance

0.3m

IFOV

1.13mrad

0.68mrad

Focus

Manual/Motor/Continuous autofocus/Laser assisted focusing

Lens recognition

Auto recognition

Lens(optional)

45°×34°, 12°×9°, 6.2°×4.7°

lens rotation

180° rotation

Image Performance

LCD

HD 5" color digital LCD, 1280×720

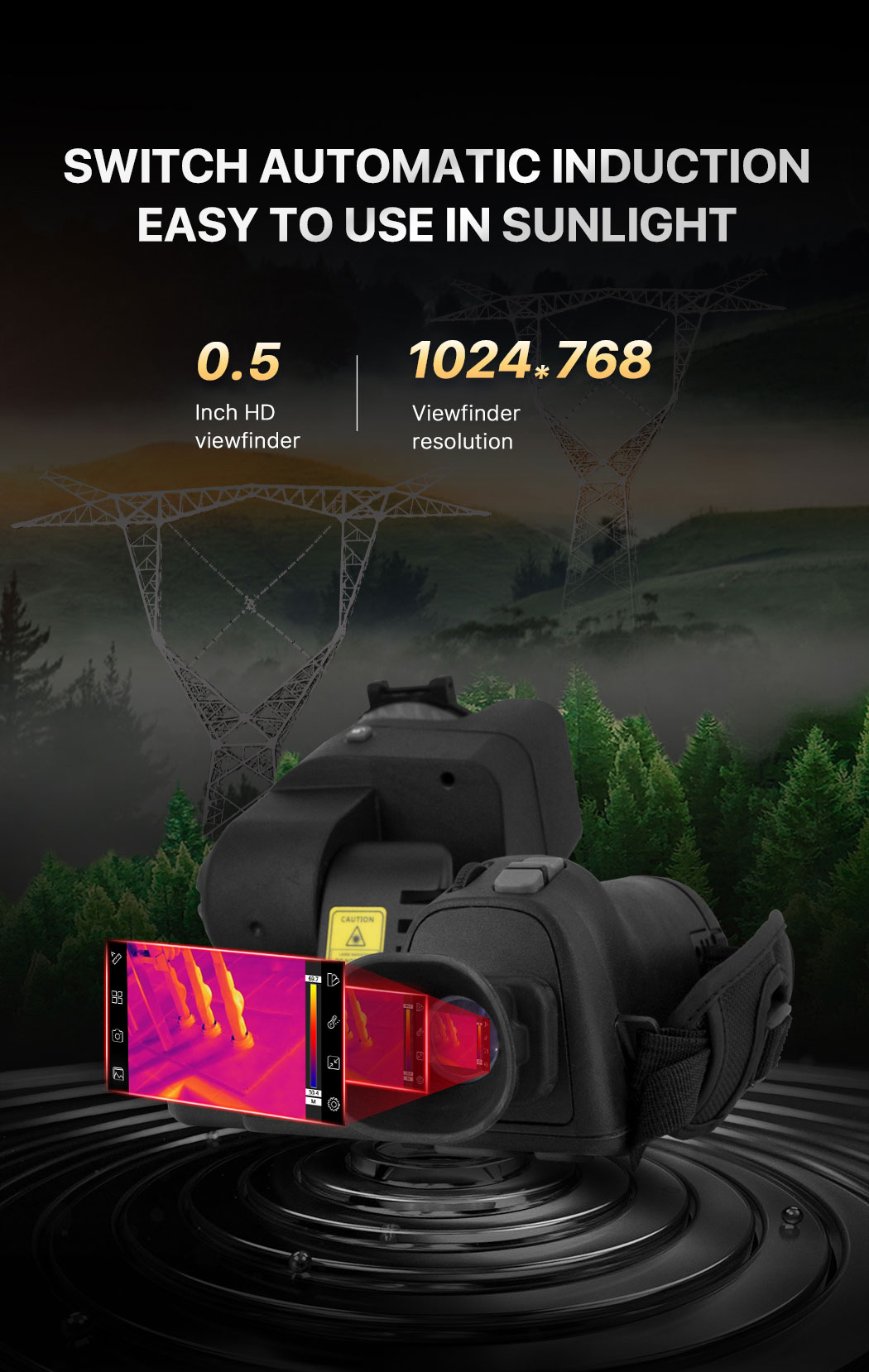

Viewfinder

0.5" color OLED display, supporting manual zoom, 1024×768

Visual camera

13 megapixel CMOS, autofocus, LED fill light

Frequency

50Hz/60Hz

Amplification

1X~35X continuous

Palette

12 palettes (including iron red, rainbow, black hot and white hot, etc.)

Contrast/Brightness

Auto/Manual

Measurement

Temperature range

-20℃~+600℃(can be extended to 1200℃)

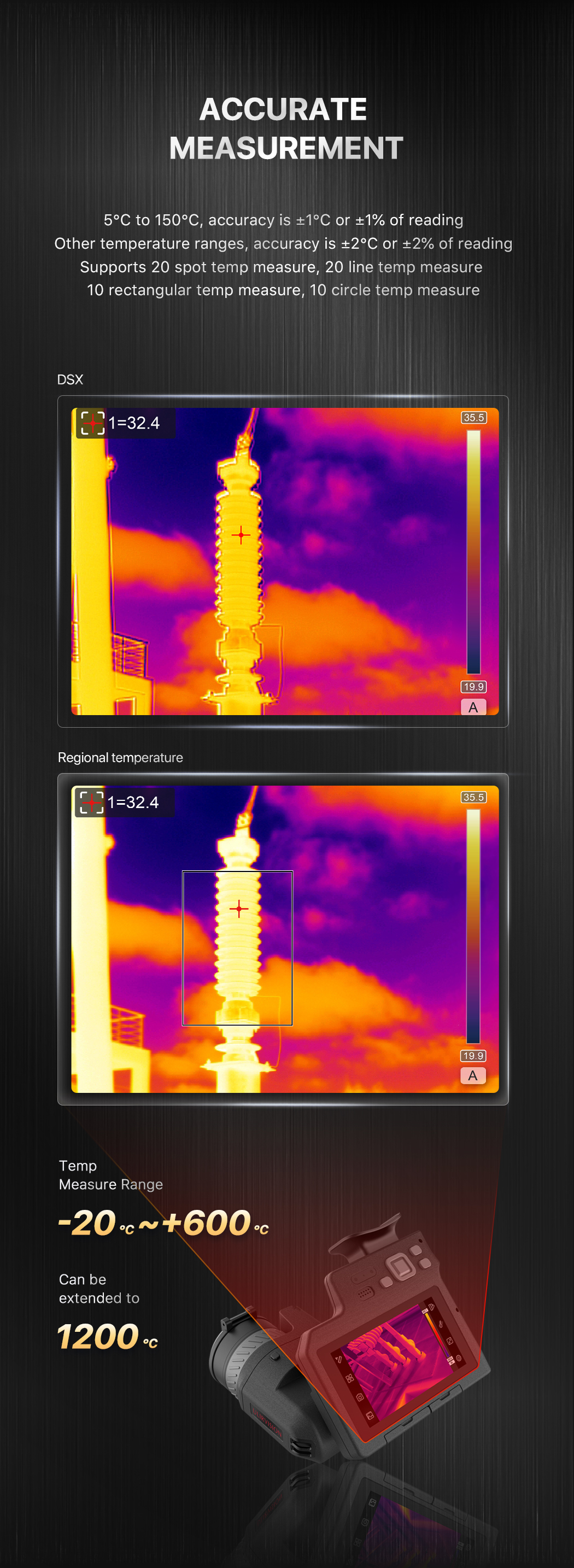

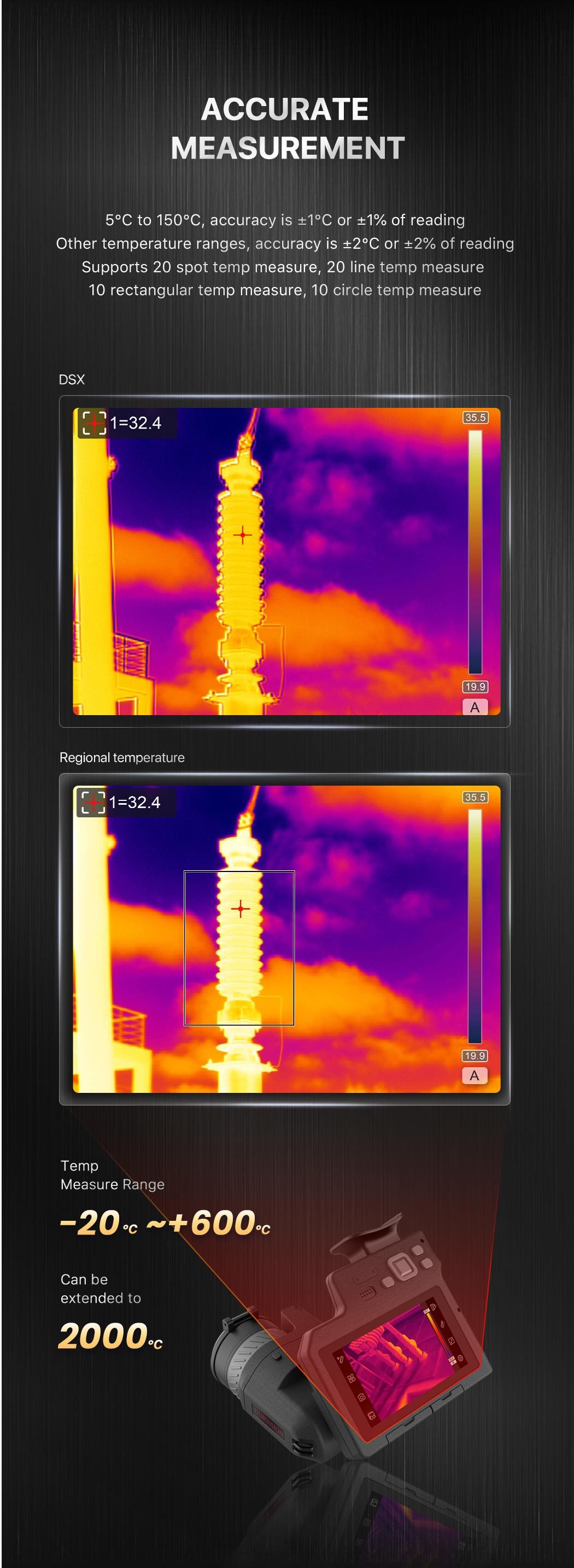

Measurement accuracy

5°C ~ 150°C,  accuracy is ±1°C or ±1% of reading; for other temperature ranges, the accuracy is ±2°C or ±2% of reading, take the larger value

Measurement mode

Real-time 20 movable spots, 10 movable rectangular areas and 10 circular areas (max./min. temp capture, avg. temp measure), 20 movable line temp measure, isothermal analysis, temp difference measure, temp alarm (sound, color)

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background temperature correction

Auto (according to the input background temp)

Atmospheric transmissivity correction

Auto (according to the input distance, relative humidity, ambient temp)

Setting function

Date/time, temp unit ℃/℉/K, language

Alarm

Sound and light alarm

Yes

Image storage

Memory card

64G

Storage method

Auto/manual store image in frame

Single frame infrared image format

JPEG, with 14-Bit measured data image

Single frame visible image format

JPEG or stored with single frame image

Text annotation

Support 30 preset text annotations(editable)

Voice annotation

60s voice record, stored with per image via built-in microphone

Laser

Laser type

Class 2, 1mW, 650nm red

Laser Ranging

Measuring distance: 0.1m-50m

Interface

Power interface

Yes

SD card slot

Yes

Video output

HDMI

Audio output

Yes

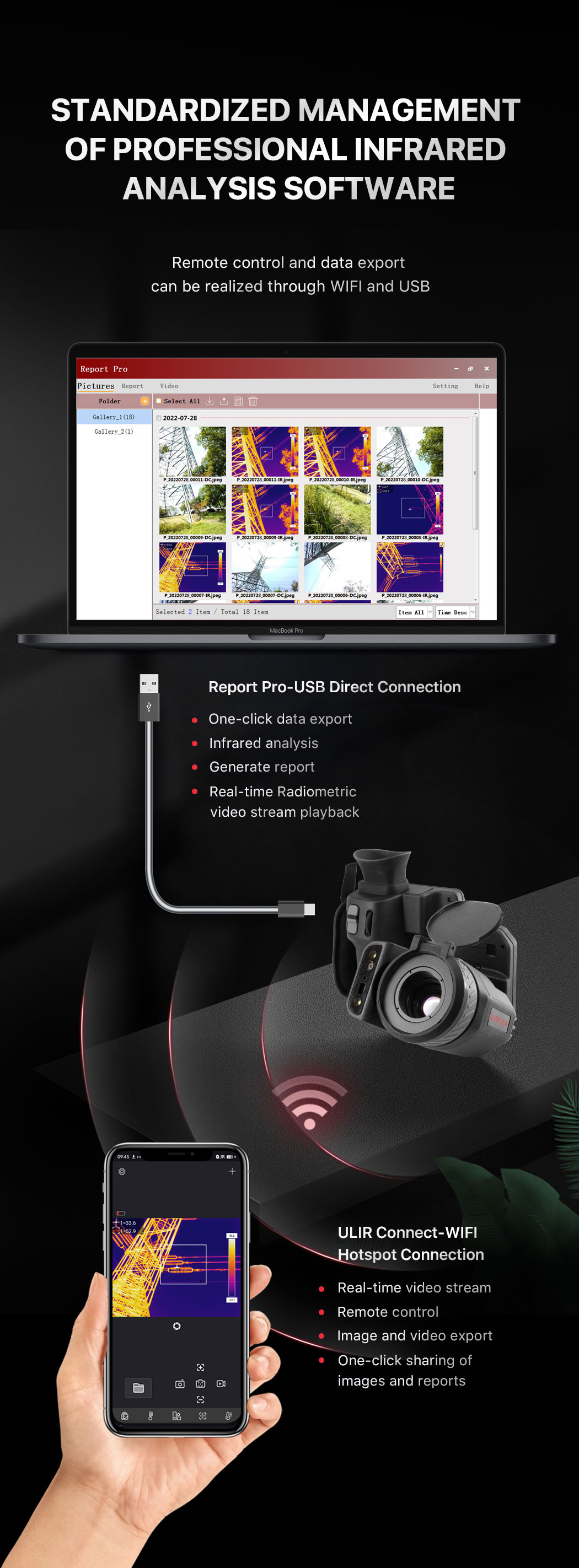

USB

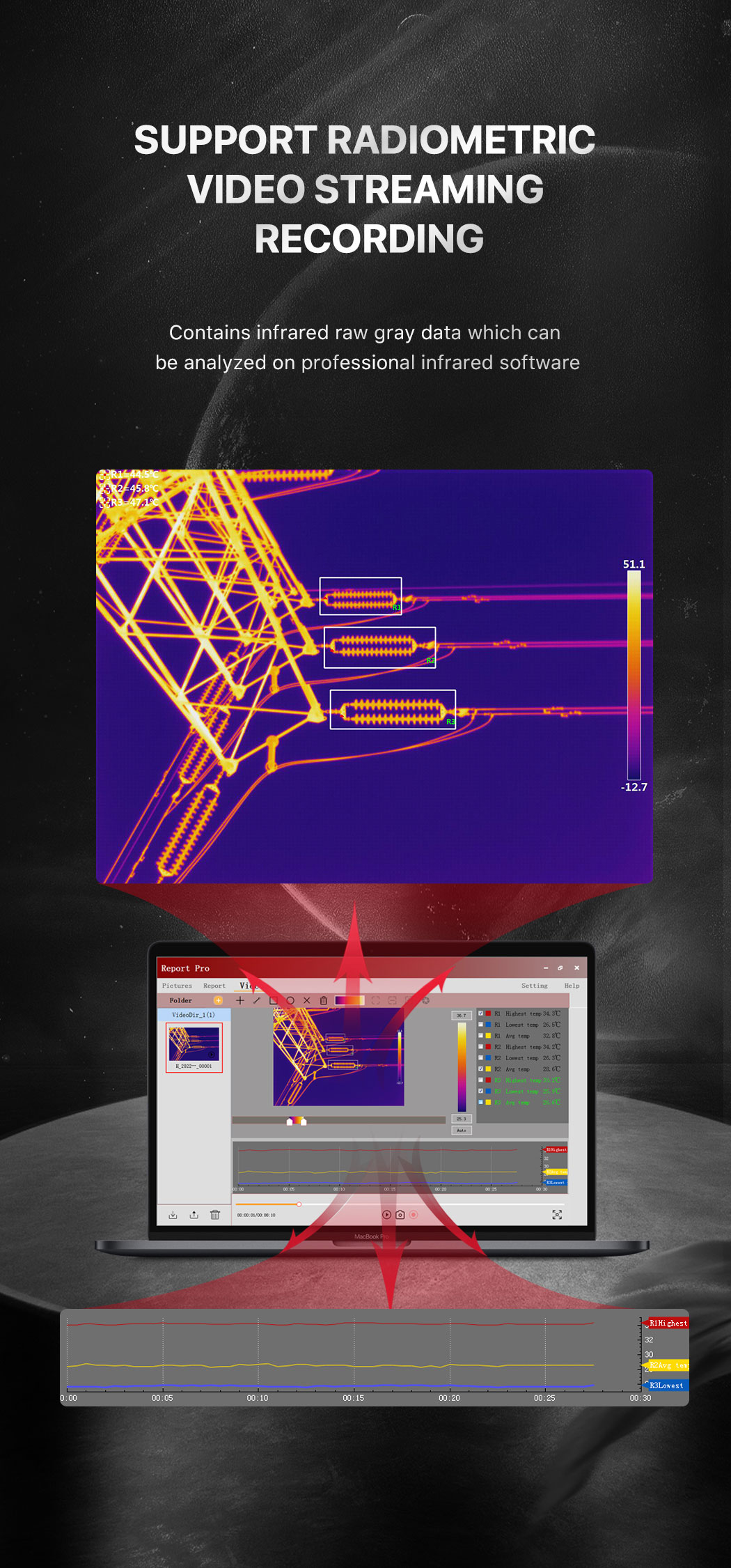

USB TypeC: Data transmission, radiometric video streaming

WIFI

Yes

Bluetooth

Yes

4G

Optional

GPS

Yes

Compass

Yes

Tripod

1/4” -20

Power System

Battery type

Lithium battery (rechargeable)

Battery operating time

4h continuous (room temperature)

External power

DC: 5V

Charging type

Two-seater charger or in camera (AC adapter or 12V car charger)

Power saving

Yes

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-40℃~+70℃

Humidity

≤95%(non-condensing)

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

Protection level

IP54(IEC60529)

Physical data

Size

200mm×110mm×156mm

Weight

≤1.4kg(with battery and standard lens)

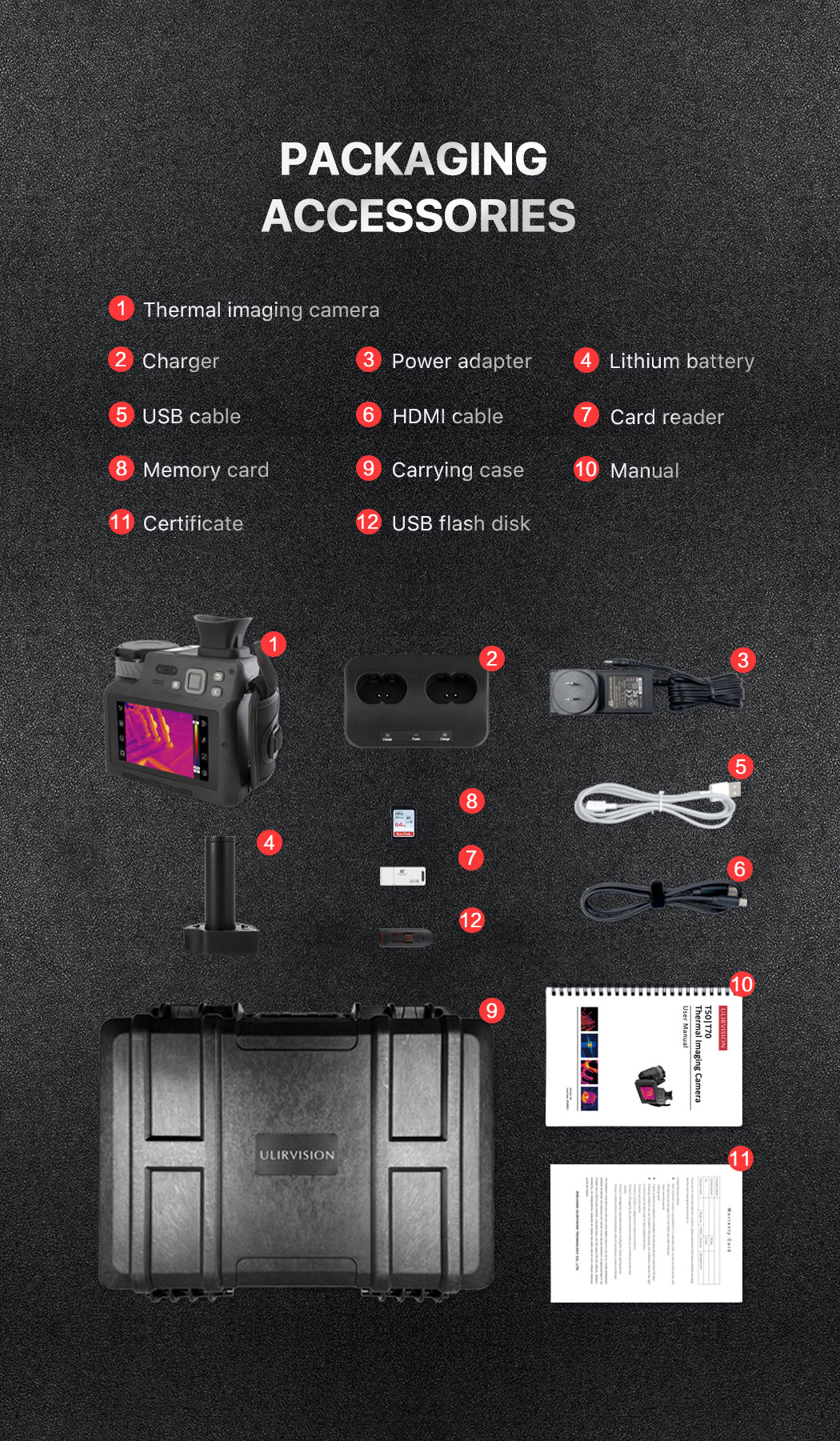

Packing

Standard

Thermal imaging camera, 2 lithium batteries, battery charger, adapter, USB cable, SD card, video cable, card reader, USB flash drive, warranty card, certificate, calibration book, carrying case

Optional accessories

Laptop, SLR camera


Applications of T50/T70 Thermal Imaging Camera

  • Building Diagnostics

  • Electrical/Mechanical Inspection

  • Research & Development

  • Automation Applications

  • Preventative & Predictive Maintenance
