T100 Thermal Imaging Cameras

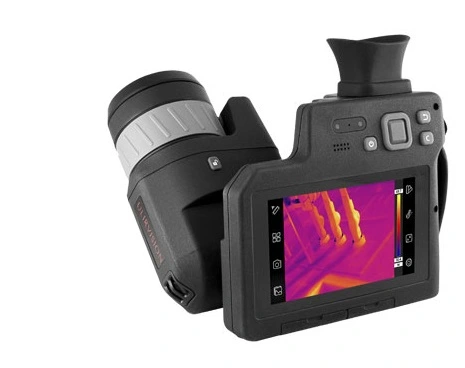

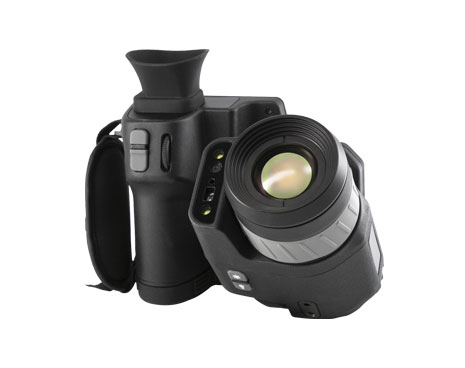

Overview of T100 Thermal Imaging Camera

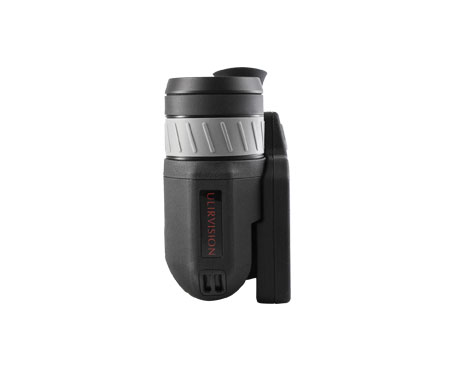

T100 is the latest expert-level thermal imaging camera of ULIRVISION. Product adopts 1024×768 high-pixel aSi microthermal detector, manual & auto integrated lens, 180° rotation, laser assisted focusing, excellent imaging quality, and meets the strict requirements of industrial market for high-end thermal camera.


Features of T100 Thermal Imaging Camera

  • 1024×768 Uncooled detector

  • Continuous auto focusing | laser assisted focusing

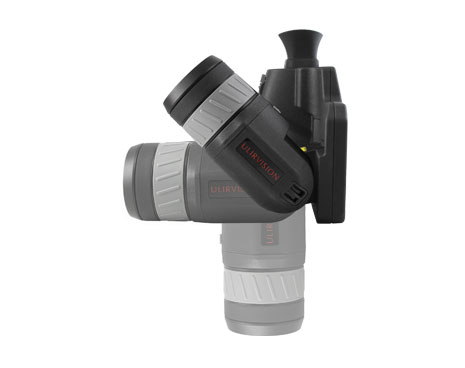

  • Automatic lens recognition, 180 ° rotation

  • Infrared | Visible Light | PIP | DSX, multiple image modes

  • Multiple measure modes: high and low temp auto tracking, line temp measure, isothermal analysis, area temp measure

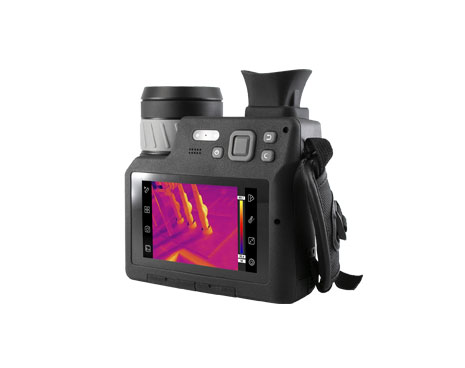

  • 5.5" Touch screen, HD viewfinder, clearly visible in the sun

  • GPS, compass azimuth information is saved with the image

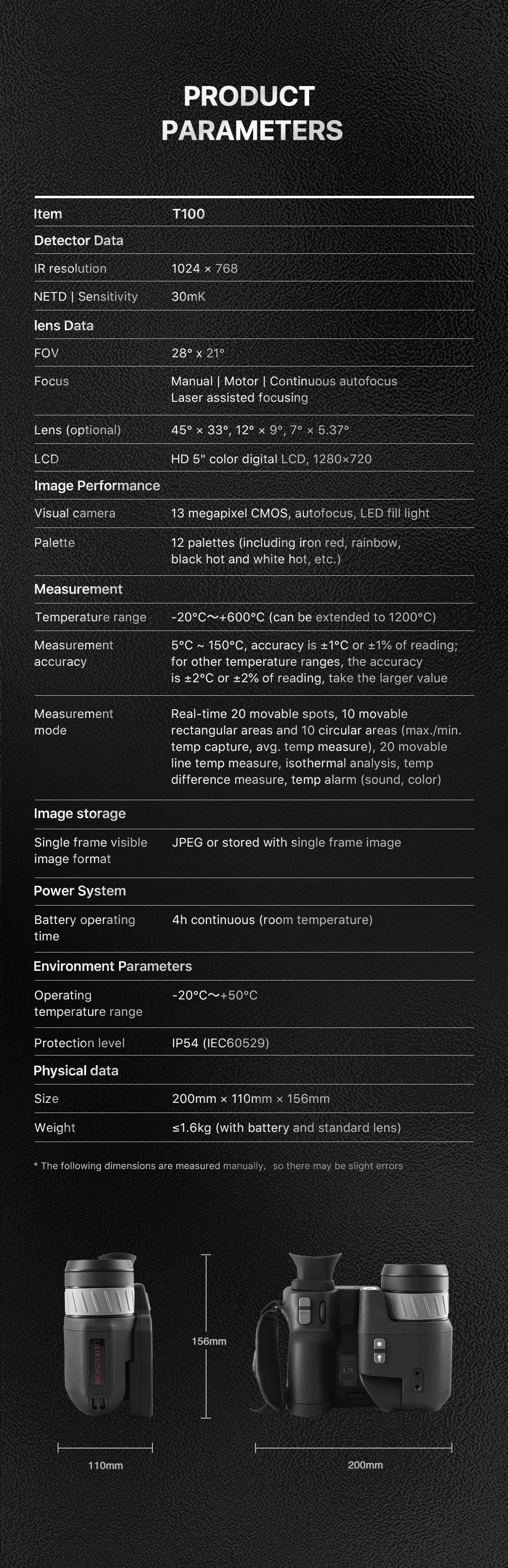

Technical Specifications of T100 Thermal Imaging Camera

Item

T100

Detector Data

Type

Uncooled FPA

IR resolution

1024×768

Pixel pitch

17μm

Spectral range

7.5~14μm

NETD/Sensitivity

25mK

Lens Data

FOV

28°×21°

Minimum imaging distance

0.5m

IFOV

0.48mrad

Focus

Manual/Motor/Continuous autofocus/Laser assisted focusing

Lens recognition

Automatic

Lens(optional)

45°×33°, 12°×9°,7°×5.3°

lens rotation

180° rotation

Image Performance

Display

HD 5.5" touch AMOLED , 1920×1080

Viewfinder

0.5" color OLED display, supporting manual zoom, 1920×1080

Visual camera

13 megapixel CMOS, autofocus, LED fill light

Frequency

50Hz/60Hz

Amplification

1X~35X continuous

Palette

12 palettes (including iron red, rainbow, black hot and white hot, etc.)

Brightness

Auto/Manual

Measurement

Temperature range

-20℃~+600℃(can be extended to 1700℃)

Measurement accuracy

5°C ~ 150°C,  accuracy is ±1°C or ±1% of reading; for other temperature ranges, the accuracy is ±2°C or ±2% of reading, take the larger value

Measurement mode

Real-time 20 movable spots, 10 movable rectangular areas and 10 circular areas (max./min. temp capture, avg. temp measure), 10 movable line temp measure, isothermal analysis, temp difference measure, temp alarm (sound, color)

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Background temperature correction

Auto (according to the input background temp)

Atmospheric transmissivity correction

Auto (according to the input distance, relative humidity, ambient temp)

Setting function

Date/time, temp unit ℃/℉/K, language

Alarm

Sound and light alarm

Yes

Image storage

Memory card

64G

Single frame infrared image format

JPEG, with 14-Bit measured data image

Text annotation

Support 30 preset text annotations(editable)

Voice annotation

60s voice record, stored with per image via built-in microphone

Laser

Laser type

Class 2, 1mW, 650nm red

Laser Ranging

Measuring distance: 0.2m-50m

Interface

Power interface

Yes

SD card slot

Yes

Video output

HDMI

Audio output

Yes

USB

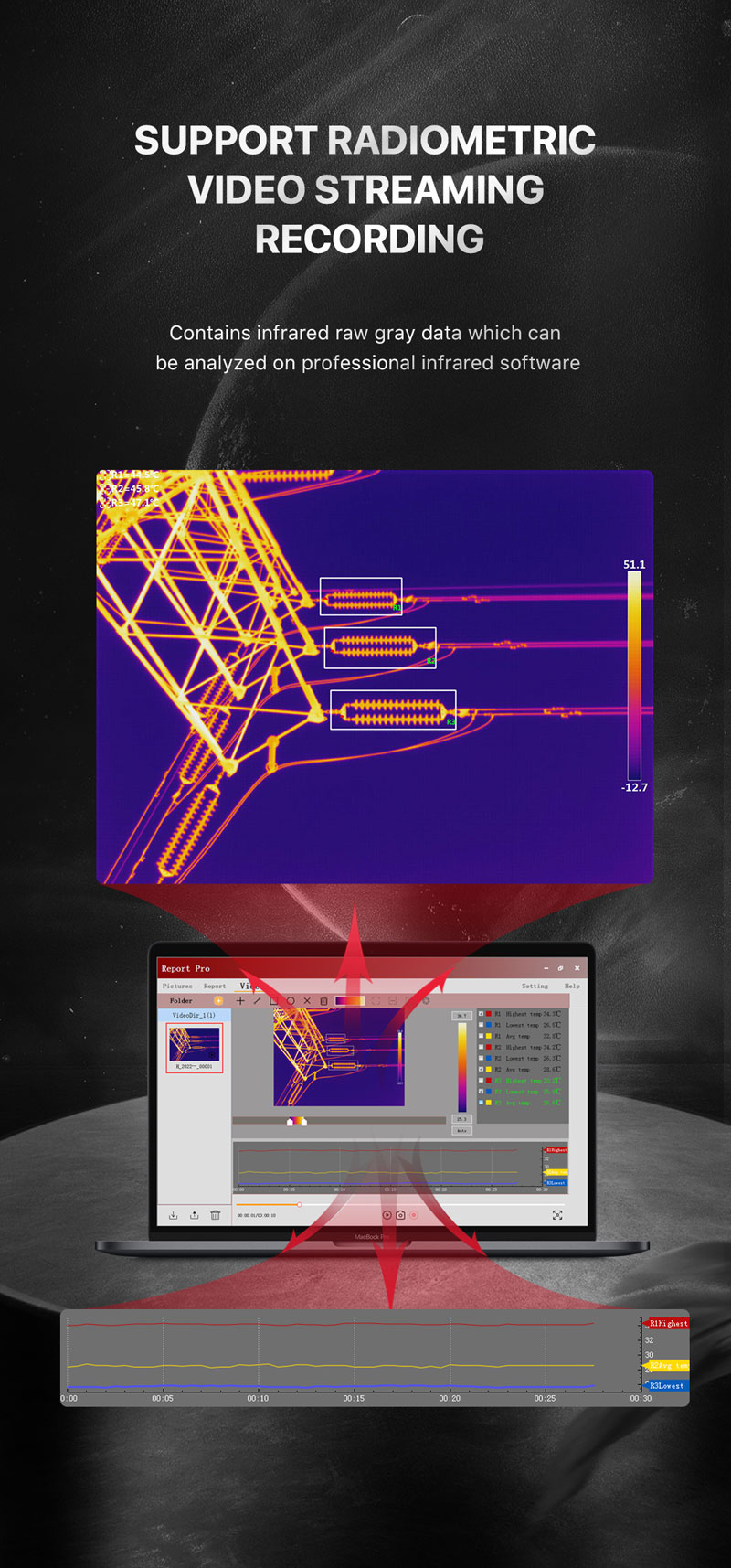

USB TypeC: Data transmission, radiometric video streaming

WIFI

Yes

Bluetooth

Yes

GPS

Yes

Compass

Yes

Tripod

1/4” -20

Power System

Battery type

Lithium battery (rechargeable)

Battery operating time

4h continuous (room temperature)

External power

DC: 5V

Charging type

Two-seater charger or in camera

Power saving

Yes

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-40℃~+70℃

Humidity

≤95%(non-condensing)

Vibration

2G(IEC60068-2-6)

Shock

25G(IEC60068-2-29)

Protection level

IP54(IEC60529)

Physical data

Size

183mm×160mm×88mm

Weight

<1.6kg(with battery and standard lens)

Packing

Standard

Thermal imaging camera, 2 lithium batteries, battery charger, adapter, USB cable, SD card, HDMI cable, SD card reader, USB flash drive, warranty card, calibration book, carrying case, user manual

Quality assurance

CE

Yes


Applications of T100 Thermal Imaging Camera

  • Building Diagnostics

  • Electrical/Mechanical Inspection

  • Research & Development

  • Automation Applications

  • Preventative & Predictive Maintenance
