G330 VOCs Gas Thermal Imaging Camera

Overview of G330 Gas Detector for VOCs

VOCs gas leak detection thermal camera is a non-contact device, it can quickly scan VOCs natural gas pipelines and equipment, real-time and intuitively locate the VOCs gas leak points and accurately measure the temperature by thermal images, so as to achieve VOCs natural gas long-distance rapid detection of pipelines and equipment.


Features of G330 Gas Detector for VOCs

  • Cooled T2SL detector, sensitivity ≤0.01℃

  • VOCS gas detection sensitivity≤0.001ml/s

  • High sensitivity mode Small gas leakage can be detected

  • It can be used for VOCS gas imaging leak detection and thermal temperature measurement

  • Pictures and videos are stored in SD card directly

  • It is small in size and weighs only 2.8 kg

  • Intelligent operation

  • Explosion-proof: Ex ic nC op is ⅡC T4 Gc

Technical Specifications of G330 Gas Monitoring Device

Item

G330

Detector Data

Type

Cooled FPA, Type II Super Lattice(TS2L)

IR resolution

320 x 256

Pixel pitch

30μm

Spectral range

3.1~3.5μm

NETD/Sensitivity

10mK

Gas sensitivity

≤0.001ml/s

Lens Data

FOV / Focal Length

14° x 11.2° /39mm

Minimum imaging distance

0.5m

IFOV

0.77mrad

Focus

Manual/Motor/Auto

Lens(optional)

24° x 19.2°/23mm(Optional)

Image Performance

LCD

HD 5.0", 1280x720, rotatable touch screen

Visual camera

5 megapixel CMOS, autofocus, 1 LED fill light

Frequency

50Hz

Amplification

1~8X Digital zoom

Palette

12 palettes (including iron red, rainbow, black hot and white hot, etc.)

Contrast/Brightness

Auto/Manual

Measure

Temperature range

-20℃~+350℃

Measurement mode

Real-time 10 movable spots, 5 movable areas(max./min. temp capture, avg. temp measure), movable line temp measure, isothermal analysis, temp difference measure, temp alarm (sound, color)

Measurement accuracy

0~100℃ accuracy ±1℃ , -20℃~0℃ or >+100℃ accuracy ±2%

Measurement correction

Auto/Manual

Emissivity correction

Adjustable from 0.1 to 1.0 or selected from list of materials

Background temperature correction

Auto (according to the input background temp)

Atmospheric transmissivity correction

Auto (according to the input distance, relative humidity, ambient temp)

Function settings

Date/time, temp unit ℃/℉/K, language

Image storage

Memory card

128G

Storage method

Auto/manual single frame image or dynamic recording

Single frame infrared image format

JPEG, with 14-Bit measured data image

Single frame visible image format

Single frame, JPEG format

Video storage method

HD videos are stored in the memory card in MPEG4/H.264, each segment can be up to 1h

Voice annotation

40s voice record, stored with image

Timed storage

Every 10s~24h

Laser indicator

Laser classification

Class 2

Laser power

1mW

Laser wavelength

635nm red

Interface

Power interface

Yes

SD card slot

Yes

Video output

HDMI

Communication Interface

WIFI, Bluetooth, USB

Audio output

Yes

Tripod

1/4" _20

Power System

Battery type

Lithium battery, rechargeable

Operating time

3h continuous (room temperature)

External power

DC: 14V

Charging type

Smart charging stand or DC 14V 3A power adapter

Power saving

Yes

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-30℃~+60℃

Humidity

≤95% (non-condensing)

EMC

EN61000-6-4&EN61000-6-2, FCC47CFR Part15 classA, EN61000-4-8, L5

Vibration

2G (IEC60068-2-6)

Shock

25G (IEC60068-2-29)

Protection level

IP54 (IEC60529)

Explosion-proof

Ex ic nC op is IIC T4 Gc

Physical data

Size

≤262mmX174mmX154mm

Weight

≤ 2.8kg (with standard lens & battery)

Gas Detection

Gas Detection

Methane, ethane, butane, propane, octane, pentane, heptane, hexane, ethylene, propylene, benzene, toluene, ethylbenzene, xylene, ethanol, methanol, isoprene, MEK, MIBK, 1-pentene

Packing

Standard

Thermal imaging camera, 2 lithium batteries, battery charger, adapter, vehicle power converter, SD card, card reader, software CD, warranty card, certificate, headset, carrying case, video cable, user manual

Quality assurance

IS09001

Yes


Applications of G330 Gas Detector for VOCs

  • Ecological Environment Law Enforcement Team, City (County) Motor Vehicle Exhaust Pollution

  • Monitoring Center, Safety Supervision Bureau, Fire Bureau, Maritime Safety Administration, LDAR Testing Service Company

  • Offshore oil platform, oil refinery, refineries, gas station, chemical treatment plant, hazardous chemicals parking lot and hazardous chemicals storage tank area

  • Natural gas enterprises, natural gas stations, natural gas well sites, natural gas storage facilities, natural gas transmission pipelines and natural gas power plants

  • Biogas power plants, pharmaceutical enterprises, pesticide plants, coal chemical plants

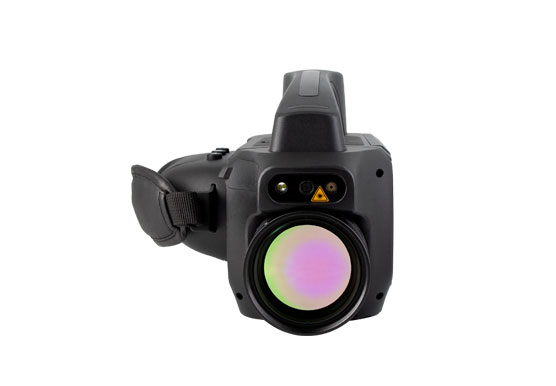

G330

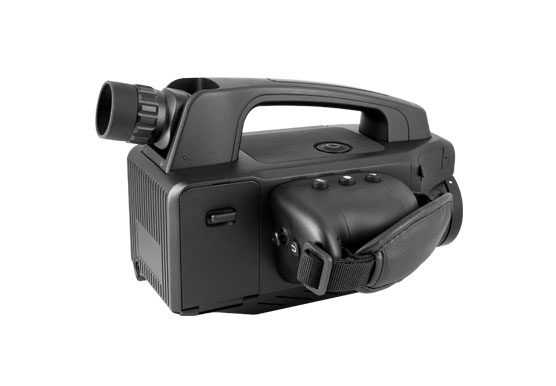

G330

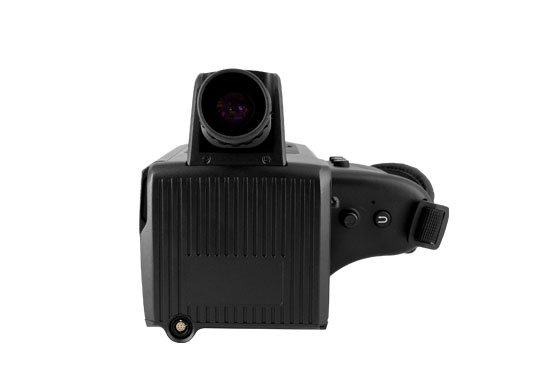

G330
G330
