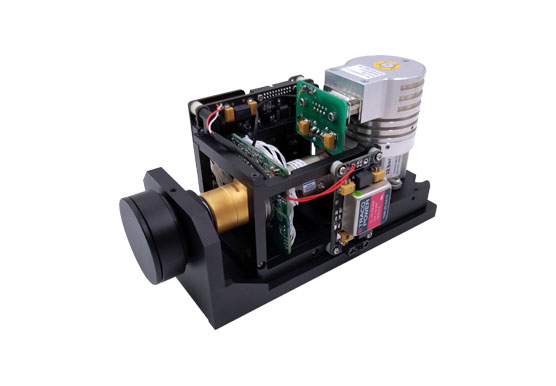

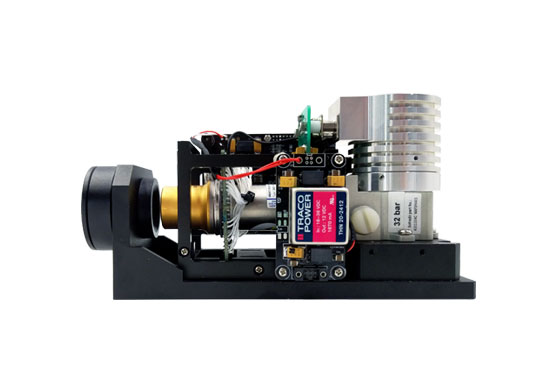

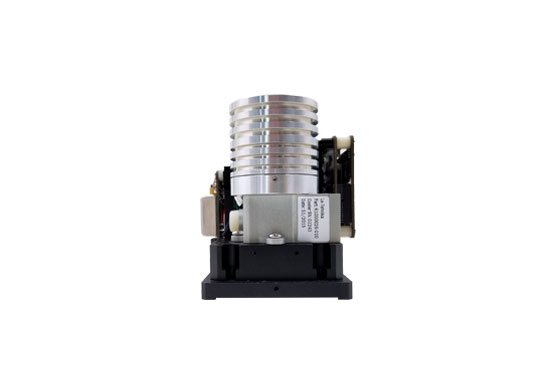

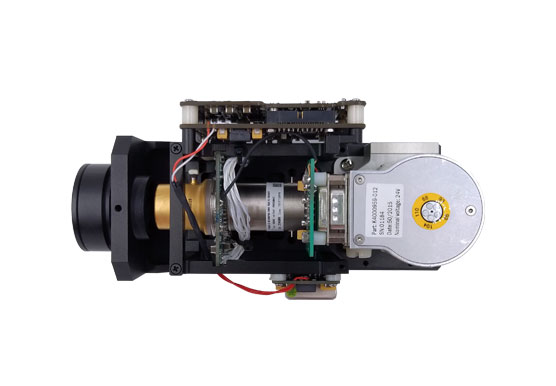

TC320MW/TC640MW Mid-wave Cooled Thermal Imaging Cores

Overview of Cooled Core TC320MW/TC640MW


TC320MW|TC640MW are mid-wave cooled thermal imaging cores with high-quality detectors which can be easily integrated into infrared systems that require extremely long distance detection and adaption to any harsh environment.


Features of TC320MW/TC640MW Mid-wave Cooled Thermal Imaging Cores


  • Cooled HgCdTe detector

  • Continuous zoom, triple view, duel view lenses and no lens are optional

  • Formidable image processing ability

  • Multiple interfaces, easy integration

  • Compact design, high level of integration


Technical Specifications of  TC320MW/TC640MW Mid-wave Cooled Thermal Imaging Cores


Item

TC320MW

TC640MW

Cooler

Stirling

Detector Data

Type

MCT

IR resolution

320×256

640×512

Pixel pitch

30μm

15μm

Spectral range

3~5μm

F.no

4

NETD/Sensitivity

≤20mK

Lens Data

Focal distance

15mm~330mm continuous zoom lens(typical)

FOV

35°×28°~1.7°×1.4°

F/#

4

Lens(optional)

60/240mm duel FOV lens、21mm~420mm continuous zoom lens、30mm~500mm continuous zoom lens、30mm~660mm continuous zoom lens and various other lenses are optional

Image Performance

Correction

Manual correction, background correction

Image enhancement

Auto image Filtering, DDE

Imaging mirroring

Vertical, horizontal

Frequency

Max200Hz

Max100Hz

Amplification

2X

2X, 4X

Polarity/LUT mode

Black hot/White hot

Cross cursor

Yes

Interface

Control

RS232/RS422

Analog video output

PAL

Digital video output

LVDS/CameraLink

Power System

Working voltage

+24V~+32V(power protection)

Power consumption

<12W@25℃(standard)

<24W@25℃(max)

Cooling time

≤6min(Normal temperature)

Environment Parameters

Operating temperature range

-40℃~+60℃

Storage temperature range

-40℃~+70℃

Humidity

5%~95% (non-condense)

Shock

1/2 Sine, 30g, 11ms, 3 shocks per axis

Vibration

3 axes, 30min/axis, 2.1g rms, 10-500Hz

Physical Data

Size

140mm×72.2mm×89.6mm(without lens)

Weight

≤880g

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.


Applications of TC320MW/TC640MW Mid-wave Cooled Thermal Imaging Cores

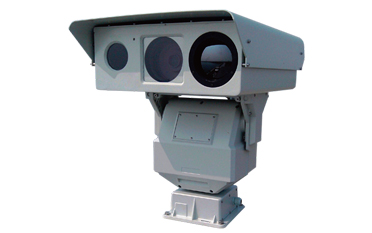

  • Border and coastal surveillance

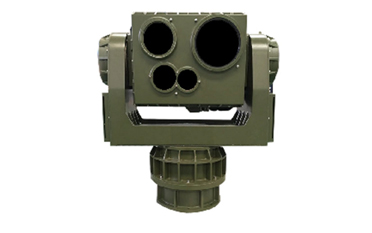

  • Fire control system of armed vehicles

  • Airborne infrared warning system

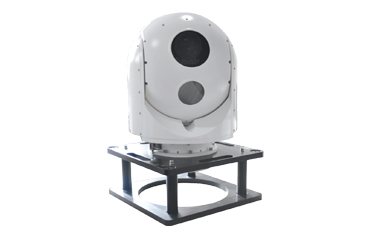

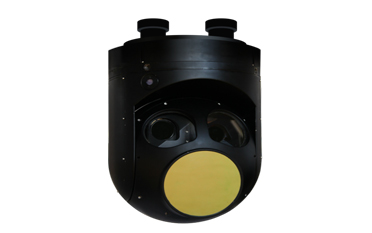

  • Airborne electro-optical pod

  • Shipborne electro-optical pod
