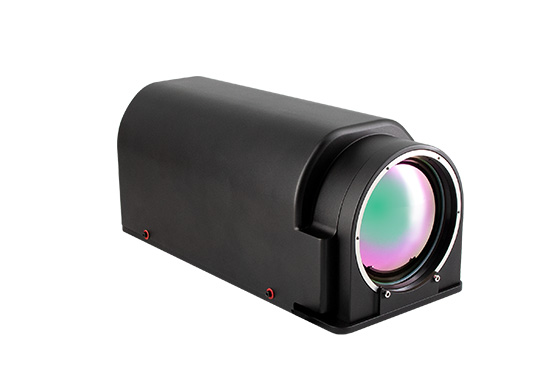

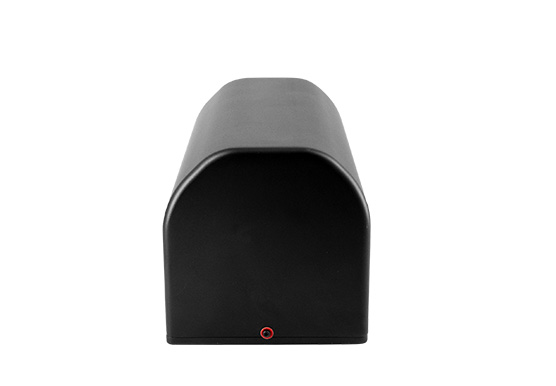

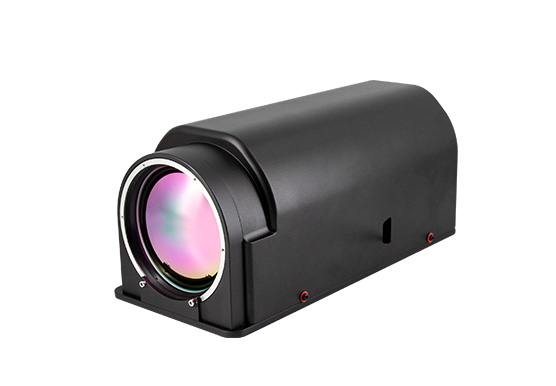

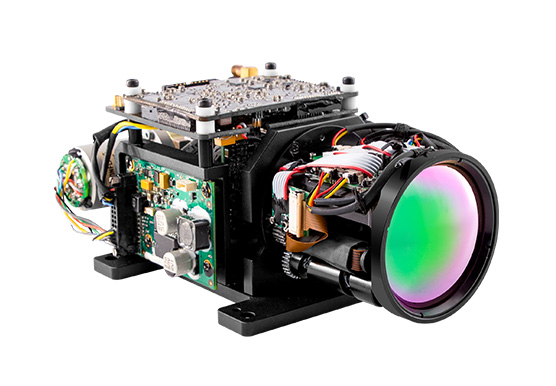

TC640SMW Small Mid-wave Cooled Thermal Imaging Core

Overview of Cooled Thermal Imaging Core


If you need a compact product, do consider this TC640SMW. TC640SMW is a small sized mid-wave cooled thermal imaging core with high-resolution detector, which enable it to be easily integrated into infrared systems. This product cannot only be adapted into extremely long distance detection, but also it can work in all kinds of bad weather conditions. Try it and you will know how good it is!

Features of TC640SMW Small Mid-wave Cooled Thermal Imaging Core


  • HgCdTe detector

  • Continuous zoom, triple views, duel views lenses and no lens are optional

  • Formidable image processing ability

  • Multiple interfaces, easy integration

  • Compact design, low power consumption


Technical Specifications of TC640SMW Small Mid-wave Cooled Thermal Imaging Core


Item

TC640SMW

Cooler

Stirling

Detector Data

Type

MCT

IR resolution

640×512

Pixel pitch

15μm

Spectral range

3~5μm

F.no

f4 / f5.5

NETD/Sensitivity

≤25mK

Lens Data

Focal distance

19mm~275mm continuous zoom lens(typical)

FOV

28°×21°~2.05°×1.5°

F/#

5.5

Lens(optional)

15mm~330mm f4 continuous zoom、18mm~430mm f5.5 continuous zoom、30mm~600mm f5.5 continuous zoom and other continuous zoom or triple views, duel views lenses are optional

Image Performance

Correction

Manual correction, background correction

Image enhancement

Auto Image Filtering, DDE

Imaging mirroring

Vertical, horizontal

Frequency

50Hz

Amplification

2X, 4X

Polarity/LUT mode

Black hot/White hot

Cross cursor

Yes

Interface

Control

RS232/RS422

Analog video output

PAL

Digital video output

CameraLink/HD-SDI

Power System

Working voltage

+24V~+32V(power protection)

Power consumption

<12W@25℃(standard)

<24W@25℃(max)

Cooling time

≤6min(normal temperature)

Environment Parameters

Operating temperature range

-40℃~+60℃

Storage temperature range

-40℃~+70℃

Humidity

5%~95% (non-condense)

Shock

1/2 Sine, 30g, 11ms, 3 shocks per axis

Vibration

3 axes, 30min/axis, 2.1g rms, 10-500Hz

Physical Data

Size

124mm×108.6mm×74.5mm(without lens)

Weight

680g(without lens)

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.



Applications of TC640SMW Small Mid-wave Cooled Thermal Imaging Core


  • HgCdTe detector

  • High sensitivity, NETD≤25mK

  • Continuous zoom, triple views, duel views lenses and no lens are optional

  • Formidable image processing ability

  • Multiple interfaces, easy integration

  • Compact design, low power consumption
