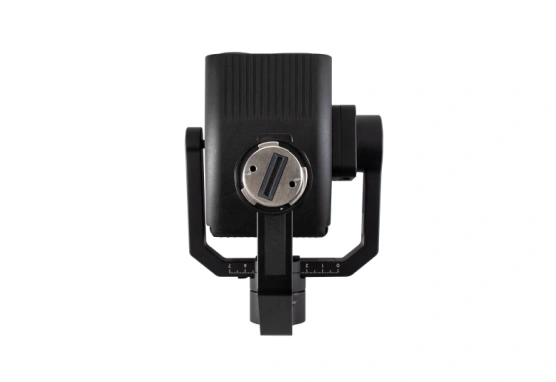

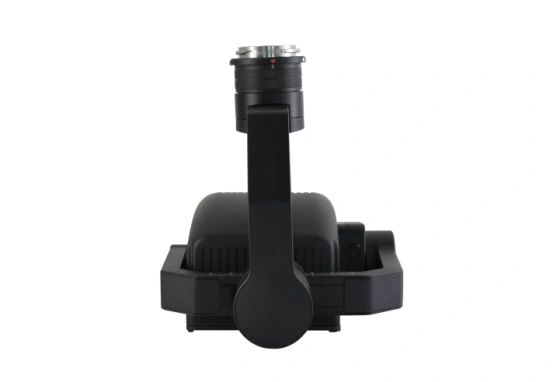

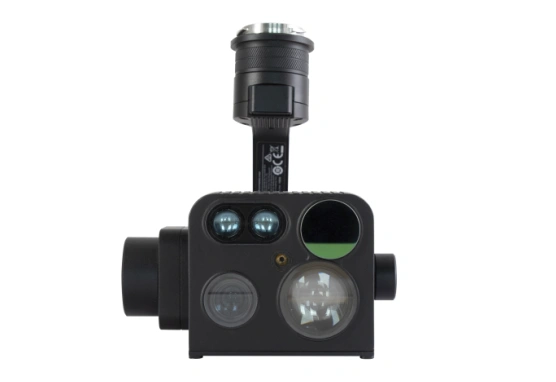

The TD40U UAV Four Light UV camera is equipped with solar-blind UV camera, infrared temperature measurement camera, laser ranging module and HD visible light camera, which can detect the temperature and UV signals of the target at the same time, and timely find the thermal defects and corona discharges of the target. TD40U has multiple superimposition modes, such as UV and visible light superimposition, UV and infrared fusion superimposition, which can accurately locate the thermal defects and discharge positions, and work all day long. It is multifunctional, with UAV inspection, it can monitor in close range. Combined with inspection planning, it can complete infrared and UV line tasks at the same time.
UV | Infrared | Laser ranging | Visible light four in one
Noise interference is small, using solar-blind detector
UV | visible light, UV | infrared multiple superposition modes
Accurately locate thermal defects and corona discharge
Complete infrared and UV inspection tasks at the same time in one inspection
Small size, light weight, easy to operate
Item | TD40U |
UV-Optical properties | |
Minimum UV sensitivity | 3.0×10-18watt/cm2 |
Minimum discharge detection | 1.0pC@10m |
Spectral range | 240～280nm |
FOV | 18°×13.5° |
Amplification | 1-4X Continuous zoom |
Focus range | 3m～∞ |
Detector life span | No degradation |
Infrared light optical properties | |
Type | Uncooled FPA |
Resolution | 640×512 |
Pixel pitch | 12μm |
Spectral range | 7～14μm |
NETD/Sensitivity | 40mK |
FOV | 33°×26° |
IFOV | 0.92mrad |
Focus | Fixed |
Amplification | 1-4X Continuous zoom |
Visible light optical properties | |
Minimum visible light sensitivity | 0.1Lux |
Resolution | 1080P, 1920×1080 |
Focus | Auto/Manual |
Focus range | 1m～∞ |
Amplification | 10X optical zoom, 4X digital zoom |
Laser ranging performance | |
Wavelength | 850nm |
Detection distance | 50m |
Image Performance | |
Mode | UV light image / infrared light image / visible light image / UV and visible light superimposition / infrared and visible light superimposition / UVand infrared light superimposition |
UV Superposition Accuracy | ≤1mrad |
UV imaging angular resolution | ≤5mrad |
Corona color | White, red, green, yellow, purple |
Infrared image enhancement | IVE image enhancement algorithm |
Infrared palette | 10 palettes (including iron red, rainbow, black hot and white hot, etc.) |
Image storage | |
Image resolution | 960×720 |
Image format | JPEG |
Video format | AVI |
Media download | USB(External) |
Storage | 32G |
Communication | |
Communication protocol | TD40U-Protocol, MAVlink, S. BUS(bus) |
Interface | |
Communication Interface | DJI SkyPort V2 |
USB | Type-C |
Power System | |
Power input | DC: 13.6V（DJI X-Port） |
Power consumption | 11W |
Environment Parameters | |
Operating temperature range | -20℃～+50℃ |
Storage temperature range | -25℃～+60℃ |
Humidity | 90%(non-condensing) |
Protection level | IP42 |
Physical data | |
Size | 112mm×80mm×75mm |
Weight | ≤460g |
other | |
Suitable model | DJI M200, M300 |

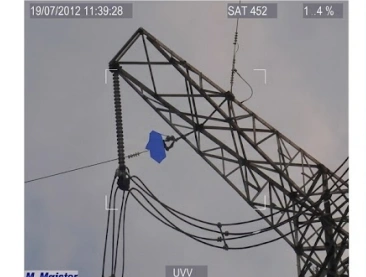

Power industry

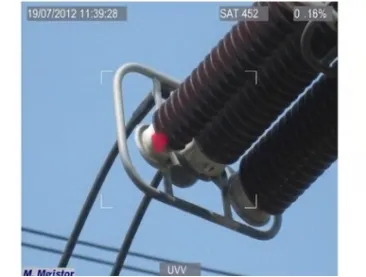

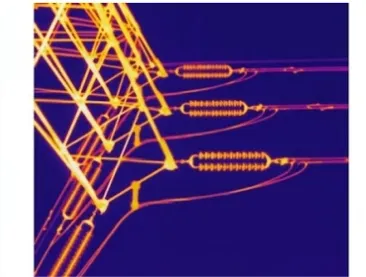

Electrified railway

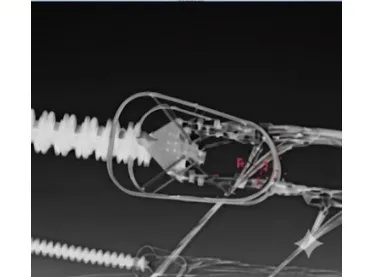

Research institutions
