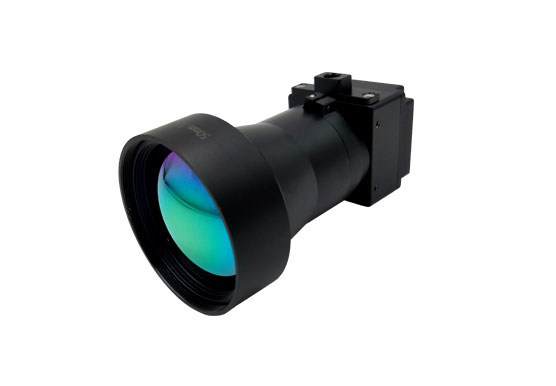

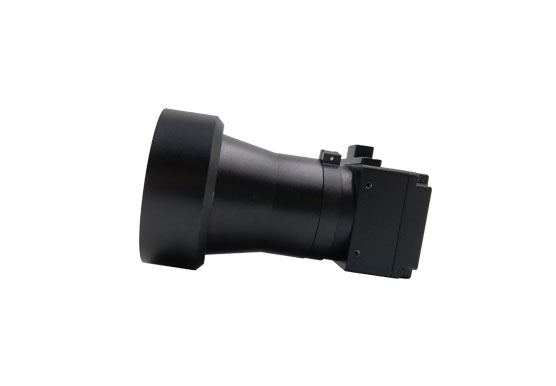

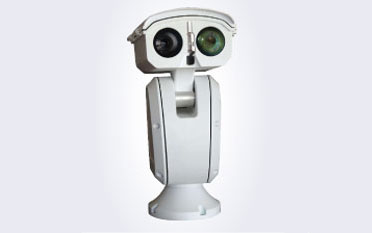

Small structure & light weight are apparently TC390|TC690G’s most obvious advantage. This core can also be used with motorized lenses. Advanced shutter-less correction technology, intelligent image enhancement and intelligent dimming algorithm make it able to form real time continuous imaging. If you need to integrate core on observation products, UAVs, portable products and other equipment, try this model. Image adjustment based on adaptive environment, it can also output excellent infrared thermal image. We believe this will be an excellent product for you.
Features
Dedicated shutter-less technology, real-time image output, zero frame loss
Metal heat dissipation design, strong adaptability of movement in dynamic range environment
High shocking resistance,
Instantaneous power on, < 3S
Technical Specifications
Item | TC390 | TC690G |
Detector Data | ||
Material | Uncooled Microbolometer Detector | |
IR resolution | 384×288 | 640×480 |
Pixel pitch | 17μm | |
Spectral range | 7.5 ～14μm | |
NETD/Sensitivity | ≤60mK | ≤50mK |
Lens Data | ||
Lens(optional) | 35mm、50mm、75mm athermal lenses, 100mm、150mm motorized lens, 25~100mm、30~150mm、25~225mm continuous zoom lens、60/150mm dual FOV lens(optional) | |
Image Performance | ||
NUC | Shutterless technology | |
Image enhancement | IVE image enhancement algorithm | |
Frequency | 50Hz | |
Amplification | 2X, 4X | |
Polarity/LUT mode | Black hot/White hot | |
Startup time | 3s | |
Image gain | Auto/Manual | |
Cross cursor | ON/OFF | |
Interface | ||
Primary electrical connector | 40pin | |
Control | RS232 | |
Analog video output | PAL | |
Digital video output | Cameralink、LVCMOS、8-Bit BT656 optional | |
Keypad | 5 button keyboard | |
Power System | ||
Working voltage | DC: +2.5V～+5.5V(standard: 3.7V) | |
Power consumption | 0.75W | 1W |
Reverse polarity protection | Yes | |
Over&Under voltage protection | Yes | |
Environment Parameters | ||
Operating temperature range | -40℃～+60℃ | |
Storage temperature range | -50℃～+70℃ | |
Humidity | 5%～95% (non-condense) | |
Shock | GJB150-16 2.3.1, 100g; 6msec | |
Vibration | GJB150-16 2.3.1, 4.3g 3 axes, 8h | |
Physical Data | ||
Size | 38mm×38mm×21mm(From FPA to back) | |
Weight | ≤55g(without lens) | |
Mounting | M2×0.4 | |
Packing | ||
Standard | Thermal imaging core, interface cable, USB flash drive, warranty card, calibration certificate | |
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. | ||
Applications

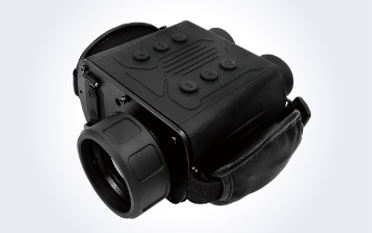

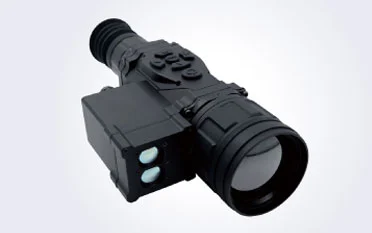

Thermal imaging integration (telescope, thermal weapon sight, etc.)

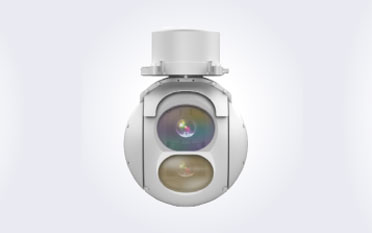

Electro-optical system for UAV & aircraft
Driver's Vision Enhancement system
