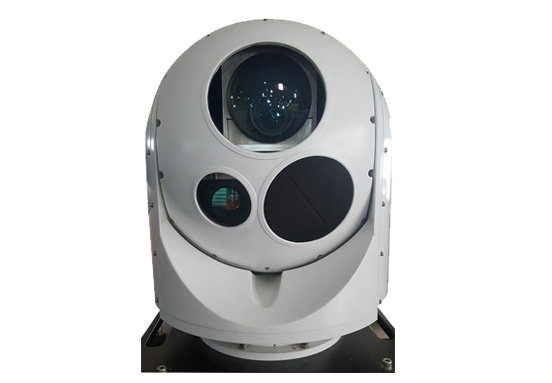

TC900PTZ Gyro-stabilized EO/IR Camera System

Overview of TC900PTZ Marine Night Vision Camera



TC900PTZ is designed for maritime surveillance, featuring dual-channel with high IR resolution thermal camera and CCD high-definition visible video camera, and able to adapt to the bad weather at sea.


Features of Boat Thermal Imaging

  • High sensitivity cooled infrared, long-distance observation, clear image

  • Infrared triple view, duel view or continuous zoom lens is optional

  • HD fog penetrating telephoto lens, auto focus

  • Laser ranging, laser lighting module are optional

  • Radar tracking& returning reminding

  • Target tracking function is optional

  • Designed for the marine environment, excellent sealing

Technical Specifications of TC900PTZ Marine Night Vision Camera

Item

TC900PTZ

Infrared performance

Type

Medium wave cooled infrared

Material

MCT

IR resolution

640×512

Pixel pitch

15μm

Spectral range

3~5μm

NETD/Sensitivity

≤20mK

Image enhancement

DDE

Polarity/LUT mode

Black hot/White hot

Contrast/Brightness

Auto/Motor

Lens Data

Focal distance

15-330mm

FOV

WFOV: 36°×29°

NFOV:1.67°×1.33°

Focusing

Electric / Automatic

Recognition distance (ship)

6.5km

Recognition distance(human)

3.3km

CCD Video Camera

Resolution

1920 x 1080

CCD type

2M 1/1.8” CMOS star-level super low-lux gun type digital camera

Lens

15.6mm~500mm(32X)

FOV

0.44°~23.12°(wide angle~telescoping)

Illuminance

Color: 0.002Lux@(F1.2, AGCON)

B/W: 0.0002Lux@(F1.2, AGCON)

Focus

Motor

Aperture

Auto

WDR

Yes

Fog-through

Support

Laser illumination(Optional)

Laser power

15W

Laser wavelength

808nm

Irradiation distance

2km

Laser ranging(Optional)

Laser wavelength

1550nm

Ranging distance (2.3m x 2.3m ship)

8Km

Ranging accuracy

±3m

Pan & Tilt

Angle back function

PELCO-D

Pan angle

0°~360°

Tilt angle

-120°~90°

Max Rotation angle speed of boresight

Pan≥90°/s, tilt≥90°/s

Max Acceleration of angle

Pan≥100°/s2, tilt≥100°/s2

Boresight stabilization accuracy

<0.1mrad(1σ)

System Features

Display device

19-inch, 1280×1024 resolution, interface(include Time, Date, GPS, target position, etc.)

Control device

Remote joystick control

Video interface

RJ45, HD-SDI

Communication Interface

RS422

Auto tracking

Support

Power System

Working voltage

DC: 24V±10%

Power consumption

≤50W Normal, ≤300W Peak

Environmental Parameters

Operating temperature range

-30℃ ~ +60℃

Storage temperature range

-40℃ ~ +70℃

Encapsulation

IP66

Physical Data

Size

574mm×408mm×408mm

Weight

55kg

Packing

Standard

Thermal imaging camera, User manual, Warranty card, Packing box

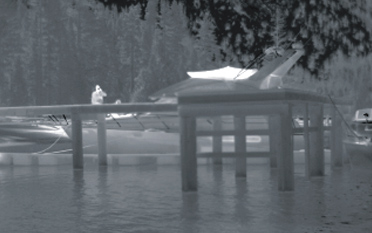

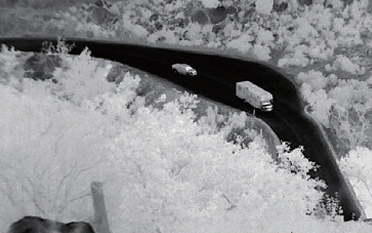

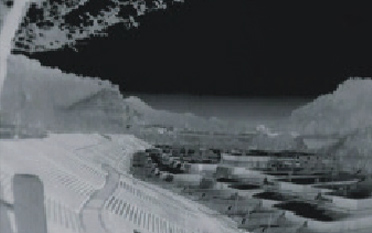

Applications of Thermal Imaging for Boats

  • Maritime surveillance

  • Marine patrol

  • Navy force
