Small Online Monitoring Thermal Imaging Cores TI30S

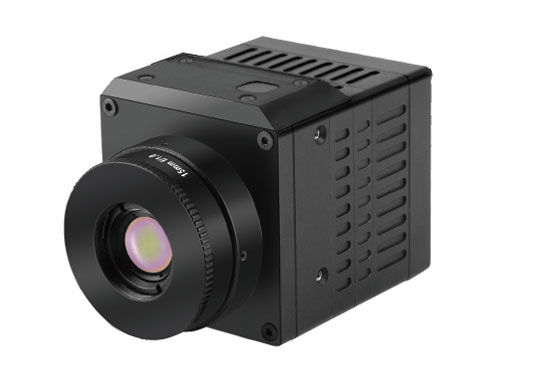

Overview of Small Online Monitoring Thermal Imaging Cores TI30S

TI30S has the characteristics of compact structure, small volume, light weight, stable performance, high sensitivity, clear image, accurate temperature measurement and flexible control. With special athermal infrared lens, it is integrated into shield, PTZ and other devices to form a complete infrared online monitoring system. It can meet the non-contact real-time temperature measurement in the process state detection field of industry, power, electronics and other industries.


Features of Small Online Monitoring Thermal Imaging Cores TI30S

  • Stable performance and can be integrated into complex application environment

  • Multiple motorized lenses, supporting auto focusing

  • The second generation image algorithm Ultra DDE, supports image flipping

  • Temperature data stream can be recorded in real time, and the picture supports State Grid format

  • RJ45 Interface 100M/1000M adaptive

  • Provide professional analysis software and SDK software package for development

  • Support ONVIF protocol and RTSP video stream


Technical Specifications of Small Online Monitoring Thermal Imaging Cores TI30S

Item

TI30S

Detector Data

Type

Uncooled FPA

IR resolution

384×288

Pixel pitch

17μm

Spectral range

8~14μm

NETD/Sensitivity

<60mK @F1.0, 30℃(50mK optional)

Lens Data

Focal distance

Fixed 6.2mm

Manual  15mm(optional)

Motor 15mm

FOV

55.5°* 43°

24°* 18°

24°* 18°

Minimum imaging distance

50cm

IFOV

2.742mrad

1.133mrad

1.133mrad

Focus

Manual/Fixed/Motor(support auto focus)

Image Performance

Image enhancement

The second generation image algorithm Ultra DDE

Frequency

25Hz

Digital zoom

1.0X~4.0X, 0.1 step

Palette

12 palettes(including iron, rainbow, white hot and black hot etc.)

Measure

Temperature range

Three gear temperature measurement: -20℃~+150℃; 120℃~600℃; -20℃~+350℃

Measurement accuracy

±2℃/±2%(reading)

Measurement correction

Support, manual/auto

Highest temperature tracking

Display the location and value of the highest temperature point in real time

Emissivity correction

Adjustable from 0.01 to 1.0 or selected from list of materials

Ambient temperature correction

Support (according to the entered ambient temperature)

Humidity correction

Support (according to the entered relative humidity)

Transmittance correction

Support (adjustable from 0.01 to 1 according to the entered transmittance)

Function settings

Date/time, temperature unit ℃/℉/K switch

Data storage

Temperature data

Standard UTD format, analysis with IRX software

Temperature data flow

HXR grayscale video format, can be played back by Irx software

Image processing can be performed during cyclic playback

Image format

Support JPG (vector image), BMP (bitmap), JPEG (analyzable), UTD (grayscale image)

Video format

AVI format, H.264 compression

RAM

64G high speed TF card

Storage control

Serial port

Report

Support, with content selection orientation

Interface

Network interface

100M/1000M Ethernet, RJ45, temperature data transmission

Industrial terminal

10pin terminal, including power supply and analog video

Serial port control

RS-232/RS-422 optional

Alarm I/O

Support

API

Support SDK(Windows&Linux)

Power System

Working voltage

DC9.5~14V        Standard: DC12V

Power consumption

Normal≤2W     Peak power consumption:≤2.5W

Environment Parameters

Operating temperature range

-20℃~+50℃

Storage temperature range

-40℃~+70℃

Humidity

≤90%(Non-condense)

Vibration

5Hz~200Hz~5Hz 2.5G swept sine

Shock

30G 11ms

EMC

CE/FCC

Physical data

Size

Without lens: 60.6mm(L) * 46mm(W) * 49.5mm(H)
With 15mm fixed focus lens: 70mm(L)* 46mm(W) * 49.5mm(H)

Weight

<145g(Without lens)    With 15mm fixed focus lens: 190g

Mounting

UNC 1/4-20 standard tripod interface, M2 threaded joint

Packing

Standard

Thermal camera, 10PIN terminal, warranty card, certificate, power cable, analog connection line, RCA to BNC connector


Applications of Small Online Monitoring Thermal Imaging Cores TI30S

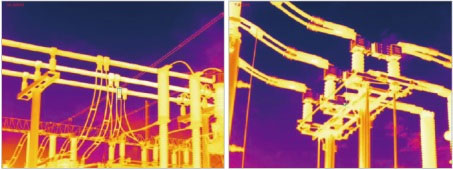

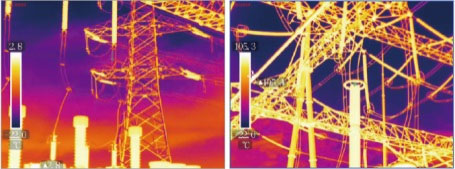

  • Electric temperature measurement

  • Inspection robot

  • Industrial temperature measurement

  • Component integration


TI30S
TI30S
